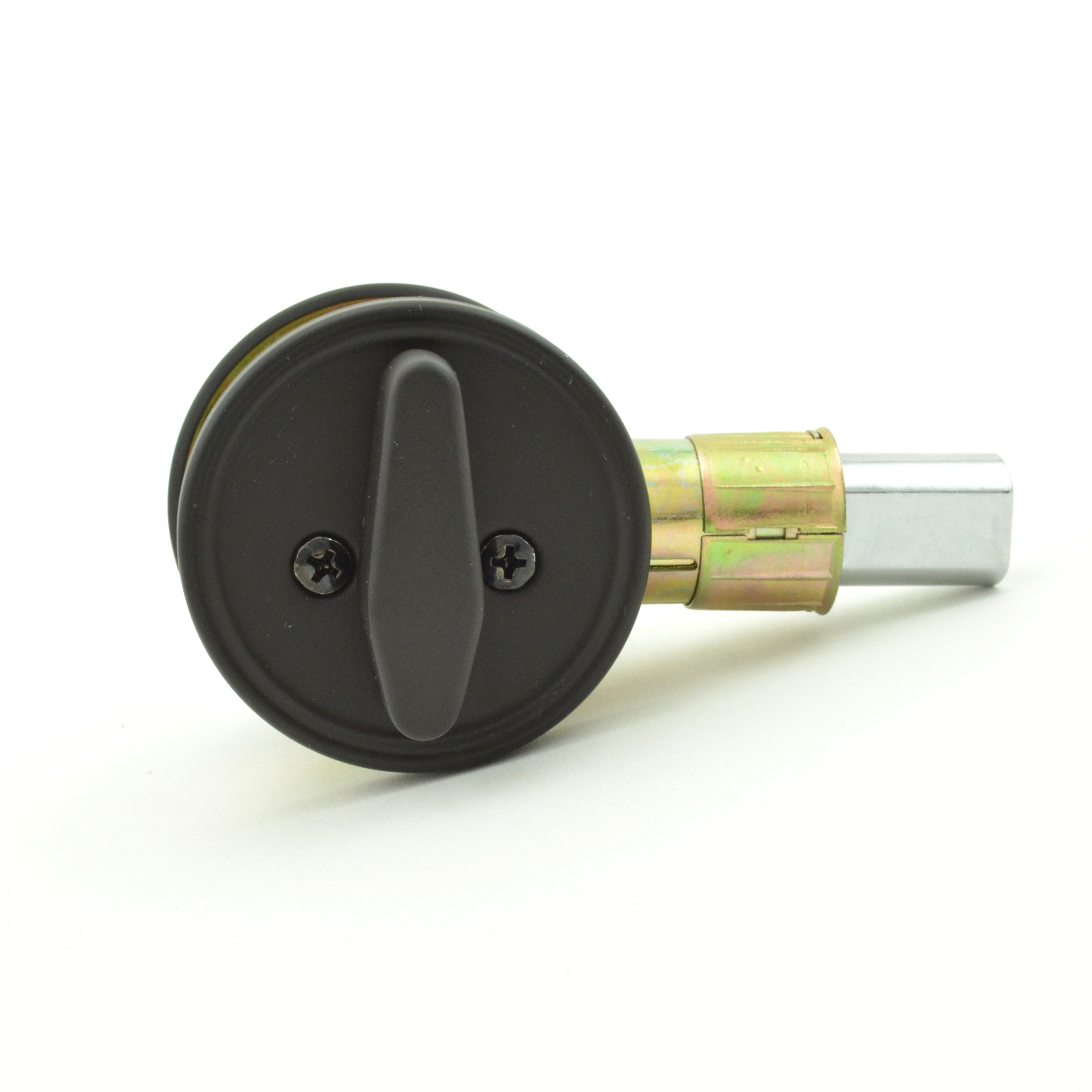

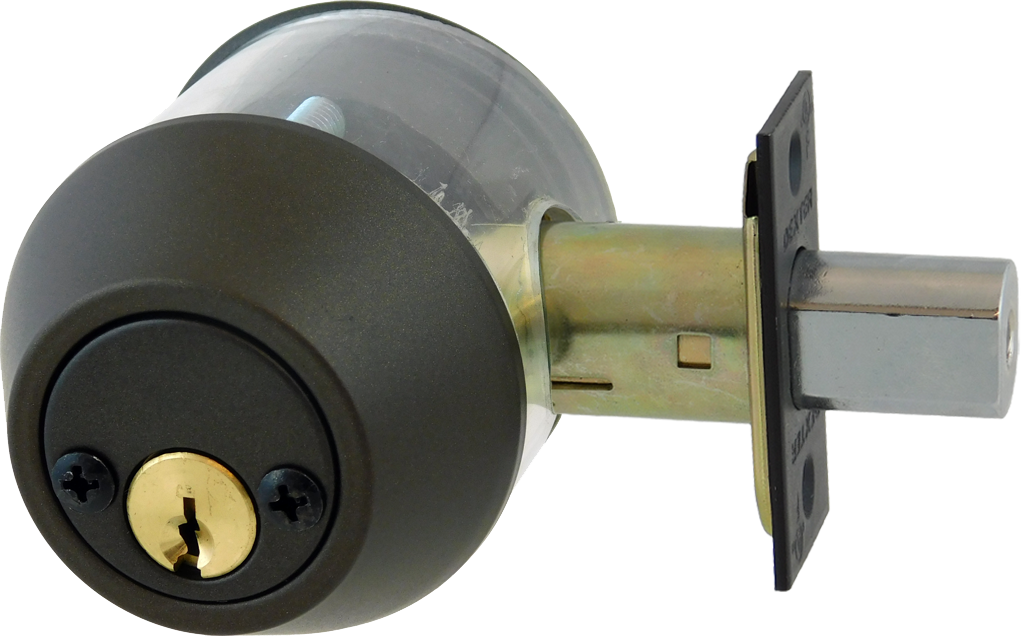

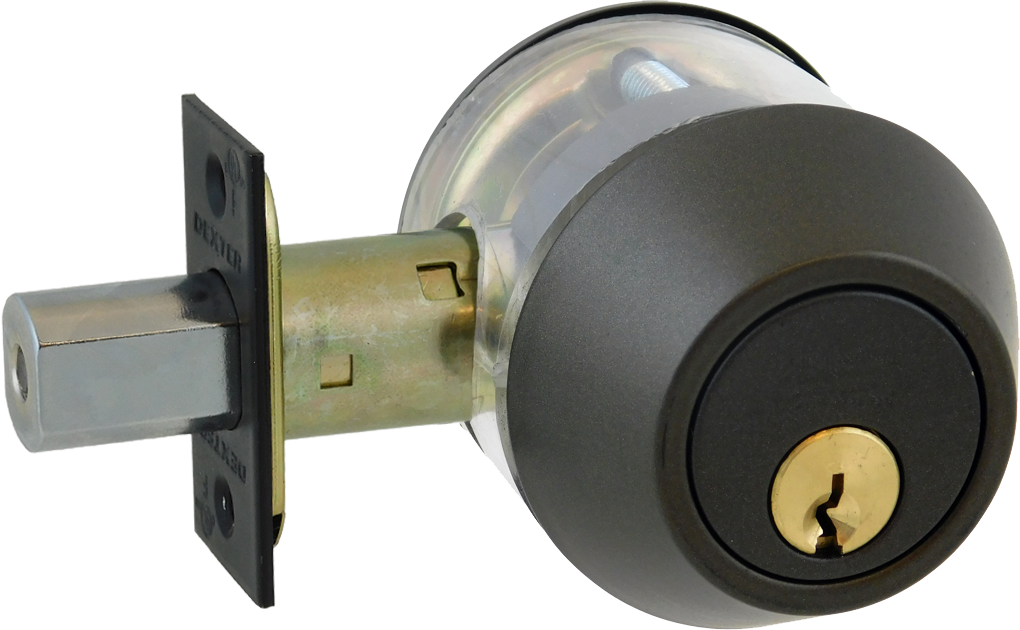

Dexter Commercial DB20004WBSCT613KDC Single Cylinder Grade 2 Deadbolt offers a robust security solution tailored for various commercial applications. This deadbolt is UL listed for 3-hour fire resistance, ensuring peace of mind in case of emergencies. Designed to accommodate door thicknesses ranging from 1-3/8" to 1-3/4", it features a versatile adjustable backset of either 2-3/8" or 2-3/4", making it suitable for a wide range of installations. The deadbolt is equipped with a Schlage C keyway and a 6-pin cylinder, providing enhanced security while maintaining ease of access with its single cylinder by thumbturn function. Its 2-1/8" crossbore size and universal square corner latch streamline installation, ensuring a fit for conventional doors. The oil rubbed bronze finish not only adds a touch of elegance but also enhances durability against wear and tear. Included with the deadbolt is a 2-3/4" square corner strike, measuring 1-1/8" x 2-3/4", which perfectly complements the overall design. Backed by a limited 5-year mechanical warranty, the Dexter DB20004WBSCT613KDC is a reliable choice for professionals seeking a balance of quality and affordability in mechanical commercial locksets.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Alternate Codes: DEXDB2000-4WB-SCT--613-KDC
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Type: 6-Pin, Single Deadbolt, Thumbturn Cylinder
Door Application: Commercial Deadbolts
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Single Cylinder x Turn
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: Schlage C Keyway
Latch Faceplate Dimension: 1-1/8" x 2-3/4"
Latchbolt Type: 4-Way Bolt
Limited Warranty: 5 Years
Manufacturer: Dexter
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Bronze
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Qty: 1
Pins: 6
Series: DB2000 Series
Std Keyway: C
Std Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: 2-3/4" Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-1/4"
Strike Size: Deadbolt Strike - 1-1/8" x 2-3/4"
Strike Style: Lipless, Square Corner
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Upc: 431560365238
