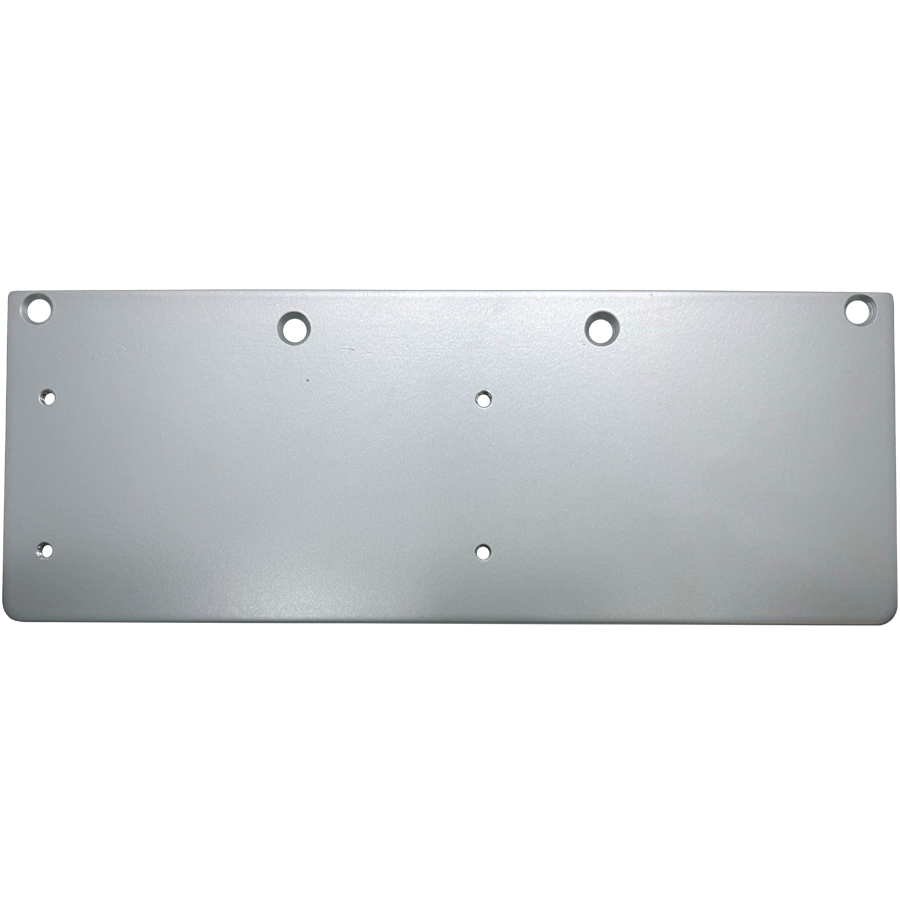

Dexter DCH1000AP.DP18PA.689 Drop Plate Parallel Arm, 689/SP28 Powder Coated Aluminum

Dexter DCH1000AP.DP18PA.689 Drop Plate Parallel Arm offers robust performance for surface-mounted door closers, ideal for high-traffic environments. Constructed from a single piece of cast aluminum, this Grade 1, UL / UL 10C Listed product ensures exceptional durability and reliability, meeting ADA compliance at size 1. The adjustable spring accommodates sizes 1-6, allowing for customizable performance to suit various door configurations. With a 6-3/4" x 2-3/8" mounting hole pattern, installation is straightforward and efficient. This drop plate features staked, independent adjustment values, enabling you to fine-tune the sweep speed, latch speed, and back-check to meet specific needs. Available with multiple arm type options, including regular arms, hold-open arms, and dead stop arms, the DCH1000AP.DP18PA is versatile enough for numerous applications. Each arm type is designed to mount on the hinge side, top jamb, or in a parallel arm configuration, enhancing flexibility in installation. The aluminum powder-coated finish not only provides a sleek appearance but also adds an extra layer of protection against wear. With a universal hardware pack included, the Dexter DCH1000AP.DP18PA.689 Drop Plate Parallel Arm is an excellent choice for professionals seeking a reliable and adjustable door closer solution.

Drop Plate Parallel Arm, 689/SP28 Powder Coated Aluminum

Specifications:

• Grade 1, UL / UL 10C Listed (non-hold open arms), ADA compliant at size 1
• Adjustable spring size 1-6
• 6-3/4" x 2-3/8" mounting hole pattern
• Staked, independent adjustment values: sweep speed, latch speed, and back-check
• Single piece, cast aluminum body
• Universal hardware pack

Arm Type Options:

• Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• Hold-open arm (Hw/PA): Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• Dead stop arm (DS): Non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• Dead stop hold-open arm (DS/HO): Non-handed, stamped, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold open function.

Finishes:

• ALUM/689 - Aluminum
• DKBRZ/695 - Dark bronze

Features

• Adjustable spring size 1-6
• Staked, independent adjustment values: sweep speed, latch speed, and back-check
• Universal hardware pack
• Grade 1, UL / UL 10C Listed (non-hold open arms), ADA compliant at size 1
• Single piece, cast aluminum body
• 6-3/4" x 2-3/8" mounting hole pattern
