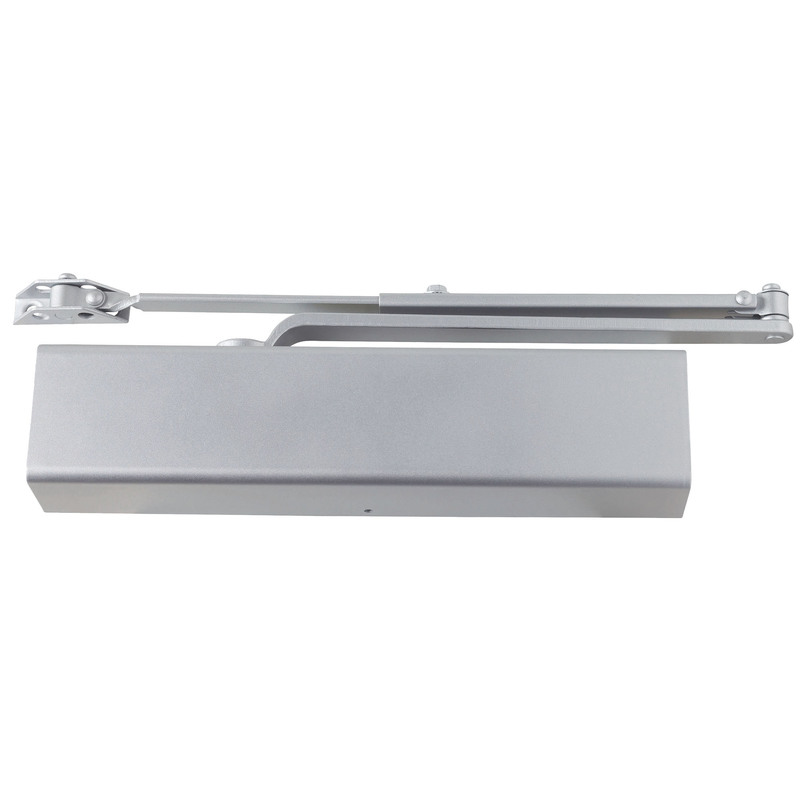

Dexter DCM1000-STD-SLIM-RW/PA AL Grade 1 Surface-Mounted Door Closer

Dexter DCM1000-STD-SLIM-RW/PA AL Grade 1 Surface Door Closer offers exceptional performance and durability for both commercial and residential applications. Designed with versatility in mind, this Grade 1 surface closer features a tri-mount installation option-allowing for regular, parallel, or top jamb mounting. Its slim cover and aluminum painted finish enhance the aesthetic appeal, while the single-piece cast aluminum body ensures long-lasting reliability. This model is equipped with adjustable spring sizes ranging from 1 to 6, catering to a variety of door weights and conditions. The adjustable backcheck allows for customized control over door closing speeds, ensuring safety and convenience. Additionally, the staked independent adjustment values for sweep speed and latch speed provide further precision during installation. Notably, the Dexter DCM1000 is UL/UL 10C listed (non-hold open arms) and complies with ADA standards at size 1, making it a practical choice for accessibility. The 12" x 3/4" mounting hole pattern simplifies installation, while the universal hardware pack ensures compatibility with various door types. Backed by a 5-year limited warranty, this reliable surface door closer is a smart investment for any building professional or knowledgeable homeowner.

Grade 1 Surface Door Closer

Grade 1 Surface Closer, Tri Mount (Regular, Parallel or Top Jamb Mounted), Regular Arm, Adjustable Backcheck, Slim Cover, Size 1 to 6, Aluminum Painted Finish, Non-Handed

Single piece, cast aluminum body.

Universal hardware pack.

• Grade 1, UL / UL 10C Listed (non-hold open arms), ADA compliant at size 1
• Adjustable spring size 1-6
• 12" x 3⁄4" mounting hole pattern
• Staked, independent adjustment values: sweep speed, latch speed, and back-check

Resources

• 2023 Dexter Price Book (updated 10.16.2023)
• DCM1000P Drop Plate Instructions - Parallel Application
• DCM1000P Drop Plate Instructions - Standard
• DCM1000P Drop Plate Instructions - Top Jamb
• Dexter Finishes Chart
• Installation Instructions: Dexter DCM1000 RWPA HWPA Installation Instructions
