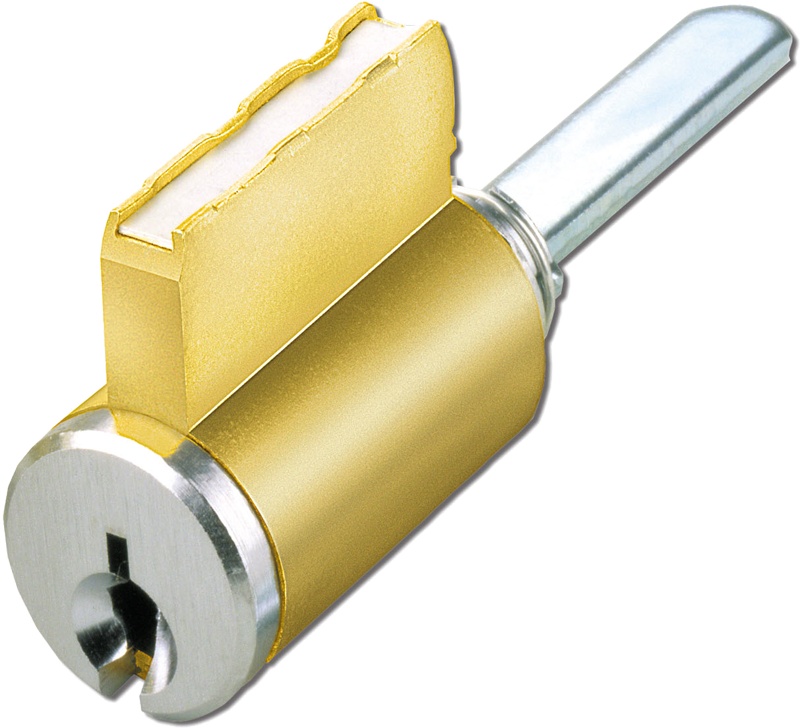

Dormakaba 15395-YA-26D-0B Yale 8 Keyway Key-in-Knob Cylinder, 0-Bit Uncombinated, Satin Chrome

Ilco Unican Corporation Dormakaba 15395-YA-26D-0B Key-in-Knob Cylinder offers exceptional security and versatility for a range of applications. This robust cylinder is designed with a Yale 8 keyway and comes uncombinated, making it ideal for those needing customizable keying solutions. Its satin chrome finish (626/US26D) adds a touch of elegance while enhancing durability against wear and tear. Engineered from solid brass bar stock, the 15395 series is compliant with OEM specifications, ensuring reliability and performance. The arrow-style snap-on tailpiece is crafted for compatibility with Grade 1 and 2 knob and lever locksets, providing seamless integration into existing security systems. This cylinder is adaptable to various configurations, as it is available in both 5 and 6 pin options, meeting diverse security needs. Furthermore, the factory master keying option allows for tailored access control, making this cylinder an excellent choice for residential or commercial applications. With its ability to be re-keyed to original manufacturers’ systems, the Dormakaba 15395-YA-26D-0B is an essential component for professionals seeking a dependable locking solution that combines form and function.

Key-in-Knob Cylinder with Snap On Tailpiece, Yale 8 Keyway, 0-Bit Uncombinated, 626/US26D Satin Chrome

Ilco KIK, KIL and KID cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master key and grand master key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications. All KIK, KIL, and KID cylinders are available factory master keyed/construction master keyed.

Features:

• 1539 Series Key-in-Knob/Lever Universal Cylinder:
• Grade 1 and 2 knob and lever locksets
• 04 and 26D finishes
• Arrow style snap-on tailpiece
• Available 5 (drilled 6 pin) and 6 pin
• 1549 Series Key-in-Deadbolt Cylinder:
• Corbin Russwin/Yale cylindrical deadbolts
• 31 keyways
• 04 and 26D finishes
• Available 5 (drilled 6 pin) and 6 pin
• Fits single and double, grade 1 and 2 cylindrical deadbolts
• Screwcap tailpiece/plug retainer
• 1568 Series Key-in-Deadbolt Cylinder:
• Emtek knobs, levers and cylindrical deadbolts
• 32 keyways
• 04 and 26D finishes
• Available 5 pin
• Fits Emtek cylindrical deadbolts - single and double, knob and lever
• Screwcap tailpiece/plug retainer
• 1579 Series Key-in-Deadbolt Cylinder:
• Sargent key-in-knob/lever, Weiser deadbolts and power bolt
• 31 keyways
• 04 and 26D finishes
• Available 5 (drilled 6 pin) and 6 pin
• Sargent 6 line knob, 10 line lever, 11 line (t-zone) lever
• Weiser single deadbolt and power bolt
• Screwcap tailpiece/plug retainer
• 1599 Series Key-in-Knob/Deadbolt Combination Cylinder:
• Knob/lever locksets plus Arrow and Schlage deadbolts
• 31 keyways
• 04 and 26D Finishes
• Available 5 (drilled 6 pin) and 6 pin
• Screw cap retainer
• Grade 1 and 2 knob lock and lever locksets
• Arrow D,E,F and K series
• Schlage B100,B200,B400 and H series
• CL3900 Corbin lever with tailpiece (optional)

Cam and Tailpieces:

• 1: Standard
• 2: Adams Rite
• 3: Clover
• 4: Narrow
• 5: Marks cam
• 6: Yale
• 7: Sargent offset
• 10: Long standard
• 11: 14PR-RM
• 12: 22PR-A-RM
• 13: 22PR-E-RM
• 14: Long lazy action
• 15: Schlage L
• 16: Sargent/Yale
• 17: Segal/Emhardt
• 18: Lori deadbolt
• 19: Clover Corbin/Russwin Best
• 20: Adams Rite 4070
• 23: Falcon/Saflok
• 26: Extra long standard

Keying Codes:

• KA: All keyed alike
• KD: Keyed different
• KA2: Keyed alike in pairs
• KA4: Keyed alike in fours
• 0B: 0 bitted - blade height
• MK: Master keyed
• GMK: Grand master keyed
• CMK: Construction master keyed
• When requesting MK or GMK, an additional keying code is required (KA, KD, KA2, etc.) example: 7165AA2-26D-MK/KA2

Keyway:

• AA: Arrow
• CA: Corbin 60
• CB: Corbin 67
• CC: Corbin 77
• CE: Corbin/Russwin L4
• CD: Corbin 59
• DA: Do min on 1054F
• EA: Schlage Everest C123
• EB: Schlage Everest C145
• FA: Segal 9
• GA: Sargent LA
• GB: Sargent LA-LC
• GC: Sargent RA-RC
• KS: Kwikset 1176
• LA: Lockwood 1004
• NA: R1064E/composite
• NB: 1014C/composite
• RA: Russwin 981R
• RB: Russwin D1
• SC: Schlage C
• SE: Schlage E
• SF: Schlage F
• SX: Schlage C-K
• UA: Ilco X1054K
• UB: Lori L100, Harloc 700, Eagle 11929
• UD: Loricentric 90
• UE: Lori Locksmith 80
• WA: Weiser Ez/ Falcon
• WE: Weiser 1555
• YA: Yale 8 (999)
• YG: Yale GA
