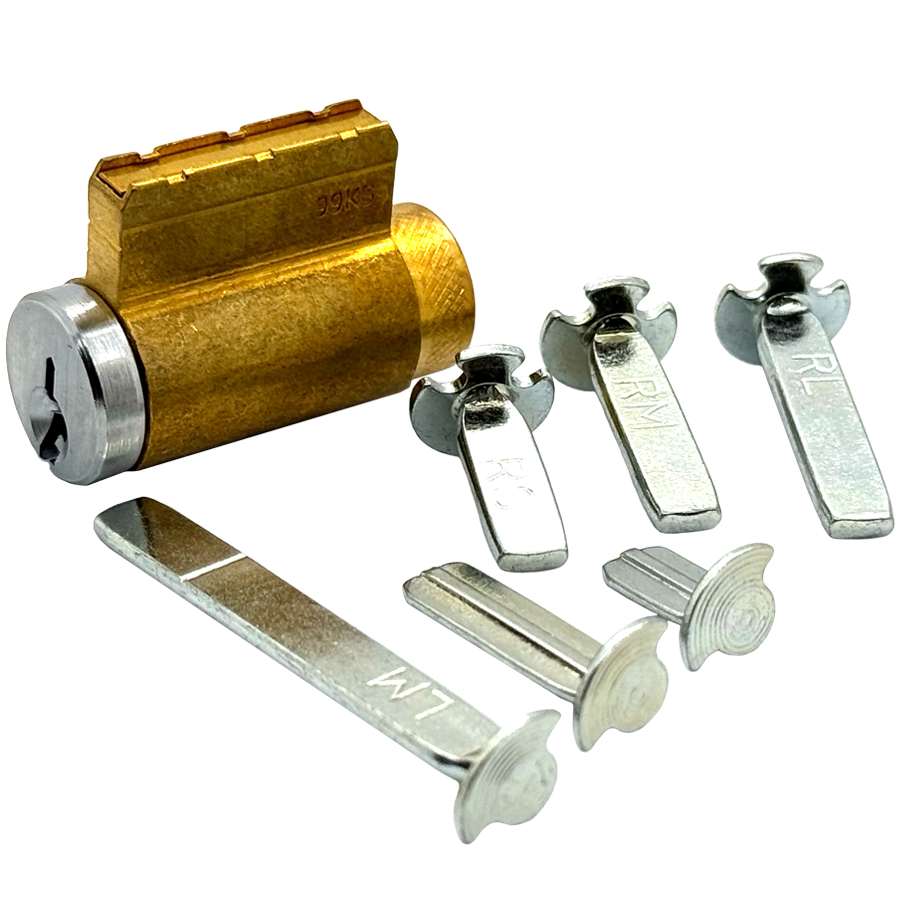

Dormakaba 15996-YG-26D-0B Key-in-Knob Cylinder, 6-Pin, Yale GA Keyway, Uncombinated, Satin Chrome

Ilco Unican Corporation Dormakaba 15996-YG-26D-0B Key-in-Knob Cylinder offers a robust solution for your locking needs, designed specifically for combination knob and deadbolt applications. This 6-pin cylinder features the Yale GA keyway and is uncombinated, allowing for customizable security options tailored to your requirements. Crafted from solid brass bar stock, this cylinder meets OEM specifications, ensuring durability and reliability. The satin chrome finish (626/US26D) not only enhances its aesthetic appeal but also provides resistance against wear and tarnish. The Arrow-style snap-on tailpiece allows for easy installation and compatibility with a range of grade 1 and 2 knob and lever locksets. With its key-in-knob configuration, this cylinder is versatile enough to fit various applications, including both residential and commercial settings. Additionally, it can be factory master keyed or construction master keyed, offering flexibility for master key systems. The cylinder’s design also accommodates re-keying to original manufacturers’ systems, ensuring that you can maintain control over your security measures. Whether you are a building professional or a knowledgeable homeowner, the Ilco Unican Corporation Dormakaba 15996-YG-26D-0B Key-in-Knob Cylinder is an essential component for securing your property with confidence.

Key-in-Knob Cylinder for Combination Knob/Deadbolt, 6-Pin, Yale GA Keyway, 0-Bit Uncombinated, 626/US26D Satin Chrome

Ilco KIK, KIL and KID cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master key and grand master key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications. All KIK, KIL, and KID cylinders are available factory master keyed/construction master keyed.

Features:

• 1539 Series Key-in-Knob/Lever Universal Cylinder:
• Grade 1 and 2 knob and lever locksets
• 04 and 26D finishes
• Arrow style snap-on tailpiece
• Available 5 (drilled 6 pin) and 6 pin
• 1549 Series Key-in-Deadbolt Cylinder:
• Corbin Russwin/Yale cylindrical deadbolts
• 31 keyways
• 04 and 26D finishes
• Available 5 (drilled 6 pin) and 6 pin
• Fits single and double, grade 1 and 2 cylindrical deadbolts
• Screwcap tailpiece/plug retainer
• 1568 Series Key-in-Deadbolt Cylinder:
• Emtek knobs, levers and cylindrical deadbolts
• 32 keyways
• 04 and 26D finishes
• Available 5 pin
• Fits Emtek cylindrical deadbolts - single and double, knob and lever
• Screwcap tailpiece/plug retainer
• 1579 Series Key-in-Deadbolt Cylinder:
• Sargent key-in-knob/lever, Weiser deadbolts and power bolt
• 31 keyways
• 04 and 26D finishes
• Available 5 (drilled 6 pin) and 6 pin
• Sargent 6 line knob, 10 line lever, 11 line (t-zone) lever
• Weiser single deadbolt and power bolt
• Screwcap tailpiece/plug retainer
• 1599 Series Key-in-Knob/Deadbolt Combination Cylinder:
• Knob/lever locksets plus Arrow and Schlage deadbolts
• 31 keyways
• 04 and 26D Finishes
• Available 5 (drilled 6 pin) and 6 pin
• Screw cap retainer
• Grade 1 and 2 knob lock and lever locksets
• Arrow D,E,F and K series
• Schlage B100,B200,B400 and H series
• CL3900 Corbin lever with tailpiece (optional)

Cam and Tailpieces:

• 1: Standard
• 2: Adams Rite
• 3: Clover
• 4: Narrow
• 5: Marks cam
• 6: Yale
• 7: Sargent offset
• 10: Long standard
• 11: 14PR-RM
• 12: 22PR-A-RM
• 13: 22PR-E-RM
• 14: Long lazy action
• 15: Schlage L
• 16: Sargent/Yale
• 17: Segal/Emhardt
• 18: Lori deadbolt
• 19: Clover Corbin/Russwin Best
• 20: Adams Rite 4070
• 23: Falcon/Saflok
• 26: Extra long standard

Keying Codes:

• KA: All keyed alike
• KD: Keyed different
• KA2: Keyed alike in pairs
• KA4: Keyed alike in fours
• 0B: 0 bitted - blade height
• MK: Master keyed
• GMK: Grand master keyed
• CMK: Construction master keyed
• When requesting MK or GMK, an additional keying code is required (KA, KD, KA2, etc.) example: 7165AA2-26D-MK/KA2

Keyway:

• AA: Arrow
• CA: Corbin 60
• CB: Corbin 67
• CC: Corbin 77
• CE: Corbin/Russwin L4
• CD: Corbin 59
• DA: Do min on 1054F
• EA: Schlage Everest C123
• EB: Schlage Everest C145
• FA: Segal 9
• GA: Sargent LA
• GB: Sargent LA-LC
• GC: Sargent RA-RC
• KS: Kwikset 1176
• LA: Lockwood 1004
• NA: R1064E/composite
• NB: 1014C/composite
• RA: Russwin 981R
• RB: Russwin D1
• SC: Schlage C
• SE: Schlage E
• SF: Schlage F
• SX: Schlage C-K
• UA: Ilco X1054K
• UB: Lori L100, Harloc 700, Eagle 11929
• UD: Loricentric 90
• UE: Lori Locksmith 80
• WA: Weiser Ez/ Falcon
• WE: Weiser 1555
• YA: Yale 8 (999)
• YG: Yale GA
