Ilco Unican Corporation Dormakaba 15996EA-04-OB Universal Key-in-Knob/Key-in-Deadbolt Cylinder features a robust 6-pin C123 keyway, designed to deliver maximum security for residential and commercial applications. Crafted from solid brass bar stock, this cylinder is engineered to meet OEM specifications, ensuring durability and reliability. It is suitable for Grade 1 and 2 knob and lever locksets, making it a versatile choice for various locking systems. The 15996EA-04-OB model is re-keyable to original manufacturer systems, allowing for seamless integration and flexibility in security management. With an Arrow style snap-on tailpiece, this cylinder is easy to install and maintain. It also includes compatibility with a broad range of keying options, including master keying and construction master keying, to accommodate complex security needs. Available in a brushed brass finish, this cylinder not only enhances security but also adds an aesthetic touch to your doors. Whether you're upgrading existing locks or installing new ones, the Ilco Unican Corporation Dormakaba 15996EA-04-OB is a reliable choice to ensure peace of mind in any environment. With its combination of strength, adaptability, and style, this cylinder meets the demands of today's security landscape with ease.

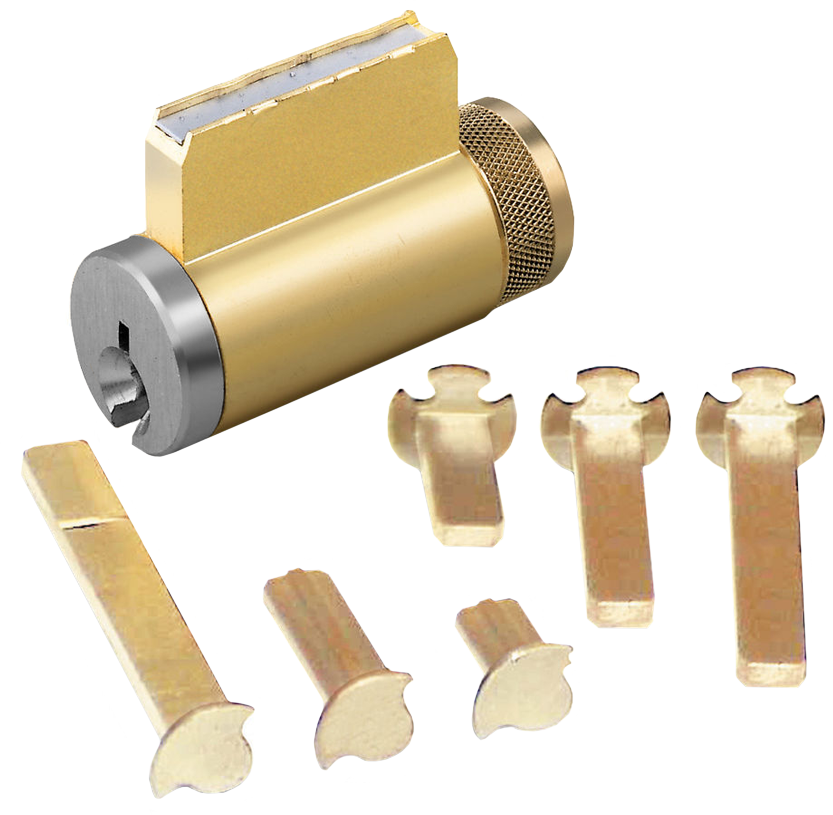

Universal Key-in-Knob/Key-in-Deadbolt Cylinder 6-Pin C123 Keyway

Ilco KIK, KIL and KID Cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications. All KIK, KIL, and KID cylinders are available factory master keyed/construction master keyed.

Features:

• Key-In-Knob / Lever Universal Cylinder- 1539 Series:
• Grade 1 & 2 Knob and Lever Locksets
• Arrow Style Snap-On tailpiece
• Available 5 (drilled 6 pin) and 6 pin
• Key-In-Deadbolt Cylinder - 1549 Series:
• Corbin Russwin / Yale Cylindrical Deadbolts
• 31 keyways
• Available 5 (drilled 6 pin) and 6 pin
• Fits single and double, grade 1 & 2 cylindrical deadbolts
• Screwcap Tailpiece / Plug Retainer
• Key-In-Deadbolt Cylinder - 1568 Series:
• Emtek Knobs, Levers and Cylindrical Deadbolts
• 32 keyways
• Available 5 pin
• Fits Emtek Cylindrical Deadbolts - single and double, knob and lever
• Screwcap Tailpiece / Plug Retainer
• Key-In-Deadbolt Cylinder - 1579 Series:
• Sargent Key-In-Knob / Lever, Weiser Deadbolts & Power Bolt
• 31 keyways
• Available 5 (drilled 6 pin) and 6 pin
• Sargent 6 Line Knob, 10 Line Lever, 11 Line (T-Zone) Lever
• Weiser Single deadbolt and Power Bolt
• Screwcap Tailpiece / Plug Retainer
• Key-In-Knob / Deadbolt Combination Cylinder – 1599 Series:
• Knob/Lever Locksets plus Arrow & Schlage Deadbolts
• 31 keyways
• Available 5 (drilled 6 pin) and 6 pin
• Screw Cap Retainer
• Grade 1 and 2 Knob Lock & Lever Locksets
• Arrow D,E,F and K Series
• Schlage B100,B200,B400 and H Series
• CL3900 Corbin Lever with tailpiece (optional)

Cam and Tailpieces:

• 1 - Standard
• 2 - Adams Rite
• 3 - Clover
• 4 - Narrow
• 5 - Marks Cam
• 6 - Yale
• 7 - Sargent Offset
• 10 - Long Standard
• 11 - 14PR-RM
• 12 - 22PR-A-RM
• 13 - 22PR-E-RM
• 14 - Long Lazy Action
• 15 - Schlage L
• 16 - Sargent/Yale
• 17 - Segal/Emhardt
• 18 - Lori Deadbolt
• 19 - Clover Corbin/Russwin Best
• 20 - Adams Rite 4070
• 23 - Falcon/Saflok
• 26 - Extra Long Standard

Keying Codes:

• KA - All keyed alike
• KD - Keyed different
• KA2 - Keyed alike in pairs
• KA4 - Keyed alike in fours
• 0B - 0 bitted - Blade Height
• MK - Master keyed
• GMK - Grand master keyed
• CMK - Construction master keyed
• When requesting MK or GMK, an additional Keying Code is required (KA, KD, KA2, etc.) Example: 7165AA2-26D-MK/KA2

Keyway:

• AA - Arrow
• CA - Corbin 60
• CB - Corbin 67
• CC - Corbin 77
• CE - Corbin / Russwin L4
• CD - Corbin 59
• DA - Do min on 1054F
• EA - Schlage Everest C123
• EB - Schlage Everest C145
• FA - Segal 9
• GA - Sargent LA
• GB - Sargent LA-LC
• GC - Sargent RA-RC
• KS - Kwikset 1176
• LA - Lockwood 1004
• NA - R1064E/Composite
• NB - 1014C/Composite
• RA - Russwin 981R
• RB - Russwin D1
• SC - Schlage C
• SE - Schlage E
• SF - Schlage F
• SX - Schlage C-K
• UA - Ilco X1054K
• UB - Lori L100, Harloc 700, Eagle 11929
• UD -Loricentric 90
• UE - Lori Locksmith 80
• WA - Weiser Ez/ Falcon
• WE - Weiser 1555
• YA - Yale 8 (999)
• YG - Yale GA

Finishes:

• 03 / 605 - Bright Brass
• 04 / 606 - Satin Brass
• 05 / 609 - Antique Brass
• 10 / 612 - Satin Bronze
• 10B / 613 - Oil Rubbed Bronze
• 15 / 619 - Satin Nickel
• 26 / 625 - Bright Chrome
• 26D / 626 - Satin Chrome
• 28 / 628 - Clear Aluminum Anodized
• 29 / 622 - Black Aluminum
• 32 / 629 - Bright Stainless Steel
• 32D / 630 - Satin Stainless Steel
• 46 / 624 - Duracolor Brown Aluminum
