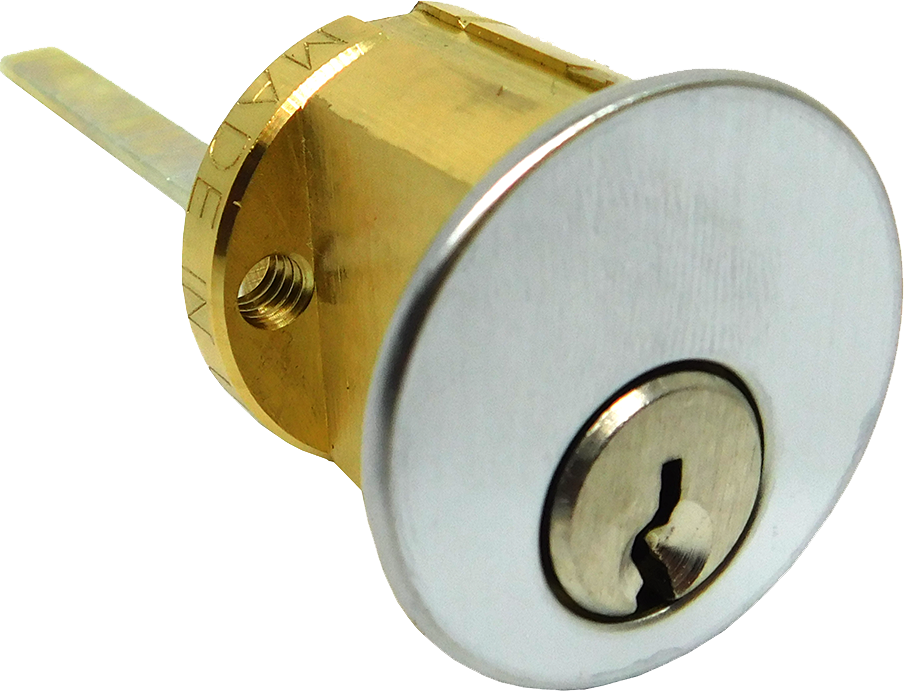

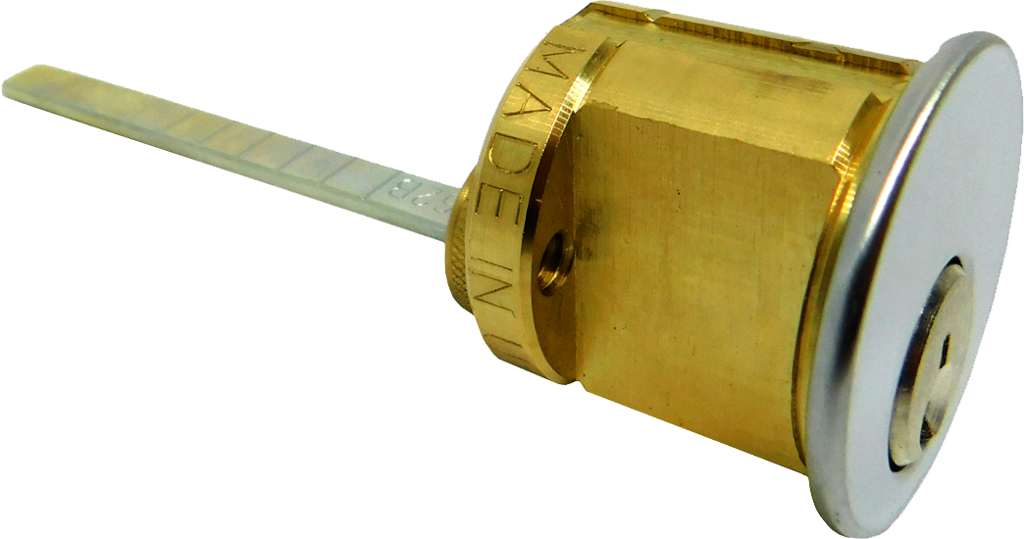

Dormakaba 7076EA-26D Schlage C123 Rim Cylinder

Ilco Unican Corporation Dormakaba 7076EA-26D Schlage C123 Rim Cylinder delivers exceptional security and flexibility for a variety of applications. Crafted from solid brass bar stock, this rim cylinder is engineered to meet OEM specifications, ensuring reliability and durability. The model features a 6-pin design with 31 keyways, providing master key and grand master key capabilities while remaining re-keyable to original manufacturer systems. This rim cylinder has a length of 1 1/8" (28.6mm) and comes equipped with a screw cap design for easy installation. It includes a rigid tailpiece already installed, along with a lazy action tailpiece in the box, allowing for horizontal or vertical configurations. The package also contains a trim ring, mounting plate, and break-off screws, simplifying the installation process. The Dormakaba 7076EA-26D is available in a wide range of finishes, including Satin Chrome (26D), ensuring it can match the aesthetic of any residential or commercial environment. With factory and construction master keying options available, it is an ideal choice for both new installations and retrofit projects. This rim cylinder embodies the quality and versatility that building professionals and savvy homeowners demand in their security solutions.

Schlage C123 Rim Cylinder

Ilco Rim Cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications.

Features:

• 7075 & 7076 Rim Cylinders - Keyed:
• Model 7076 is 6 pin
• 31 keyways
• Screw cap design
• 1 1/8" (28.6mm) Length
• Includes rigid tailpiece installed and lazy action tailpiece in box
• Includes trim ring, mounting plate, and break off screws
• Horizontal or vertical tailpiece
• Factory master keying/construction master keying available
• 7010 Rim Cylinders - Dummy:
• 1 1/8" (28.6mm) Length
• Includes trim ring, mounting plate, and break off screws
• 7011 Rim Cylinders - Turnknob:
• 1 1/8" (28.6mm) Length
• Includes trim ring, mounting plate, and break off screws
• Horizontal or vertical tailpiece
• ADA 7011 Rim Cylinders - Turnknob:
• American for Disabilities Act compliant
• 1 1/8" (28.6mm) Length
• Includes trim ring, mounting plate, and break off screws
• Horizontal or vertical tailpiece
• Key-In-Knob / Deadbolt Combination Cylinder – 1599 Series:
• Knob/Lever Locksets plus Arrow & Schlage Deadbolts
• 31 keyways
• Available 5 (drilled 6 pin) and 6 pin
• Screw Cap Retainer
• Grade 1 and 2 Knob Lock & Lever Locksets
• Arrow D,E,F and K Series
• Schlage B100,B200,B400 and H Series
• CL3900 Corbin Lever with tailpiece (optional)

Keyway:

• AA - Arrow
• CA - Corbin 60
• CB - Corbin 67
• CC - Corbin 77
• CE - Corbin / Russwin L4
• CD - Corbin 59
• DA - Do min on 1054F
• EA - Schlage Everest C123
• EB - Schlage Everest C145
• FA - Segal 9
• GA - Sargent LA
• GB - Sargent LA-LC
• GC - Sargent RA-RC
• KS - Kwikset 1176
• LA - Lockwood 1004
• NA - R1064E/Composite
• NB - 1014C/Composite
• RA - Russwin 981R
• RB - Russwin D1
• SC - Schlage C
• SE - Schlage E
• SF - Schlage F
• SX - Schlage C-K
• UA - Ilco X1054K
• UB - Lori L100, Harloc 700, Eagle 11929
• UD - Loricentric 90
• UE - Lori Locksmith 80
• WA - Weiser Ez/ Falcon
• WE - Weiser 1555
• YA - Yale 8 (999)
• YG - Yale GA

Finishes:

• 03 / 605 - Bright Brass
• 03P / 605 - Bright Brass Permanent
• 04 / 606 - Satin Brass
• 05 / 609 - Antique Brass
• 10 / 612 - Satin Bronze
• 10B / 613 - Oil Rubbed Bronze
• 15 / 619 - Satin Nickel
• 26 / 625 - Bright Chrome
• 26D / 626 - Satin Chrome
• 28 / 628 - Clear Aluminum Anodized
• 29 / 622 - Black Aluminum
• 32 / 629 - Bright Stainless Steel
• 32D / 630 - Satin Stainless Steel
• 46 / 624 - Duracolor Brown Aluminum
