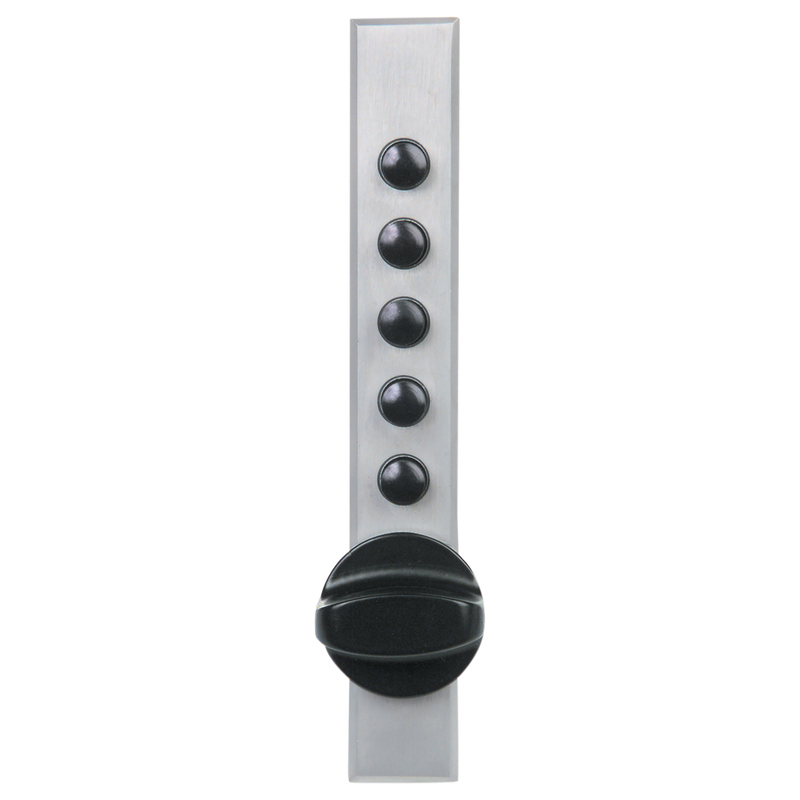

Dormakaba 9621C11-26D-41 Pushbutton Cabinet Lock

Kaba Access Dormakaba 9621C11-26D-41 Pushbutton Cabinet Lock offers an efficient solution for managing access to cabinets and drawers with a robust design tailored for wood applications. Featuring a cross throw and clutch ball bearing knob, this lock provides both security and convenience without the hassles of keys or cards. The Simplex mechanical pushbutton mechanism allows for quick access control, enabling users to change combinations in seconds without removing the lock, eliminating the need for batteries or programming. Designed specifically for cabinet doors and similar applications, the lock includes a vandal-resistant numeric keypad made from solid metal pushbuttons, ensuring durability and reliability. Installation is versatile, accommodating horizontal or vertical orientation, and compatible with wood doors ranging from 16 mm to 22 mm in thickness, as well as 14 to 20 gauge sheet metal applications. The end-throw and cross-throw deadbolt can be manually relocked or set to automatically relock, providing flexibility based on your security needs. Constructed with a force-resistant metal faceplate and a protected exterior knob, the Dormakaba 9621C11-26D-41 ensures long-lasting performance, backed by a one-year warranty. Ideal for both building professionals and discerning homeowners, this cabinet lock combines practicality with security.

Pushbutton Cabinet Lock

Cabinet Lock, Wood Application, Cross Throw, Clutch Ball Bearing Knob, Without Trim Plate, Spring Latch, Satin Chrome

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

The 9600 Series is specifically designed for cabinet doors, desk drawers, and similar applications.

• Construction: All metal cast face plate; force-resistant, protected exterior knob
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Non-handed
• Bolt:
  • End-throw/cross-throw deadbolt (must be manually relocked)
  • End-throw/cross-throw spring latch (with automatic relock)
• Door Thickness:
  • Wood doors: ⅝" (16 mm) to ⅞" (22 mm)
  • Sheet metal applications: 14 to 20 gauge 1⁄3", 1⁄16", 1⁄4"
• Installation:
  • Horizontal or vertical.
  • Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications).
  • Punched slot or series of 7⁄16" (11 mm) drilled holes (for metal applications).
• Warranty: 1-year warranty
