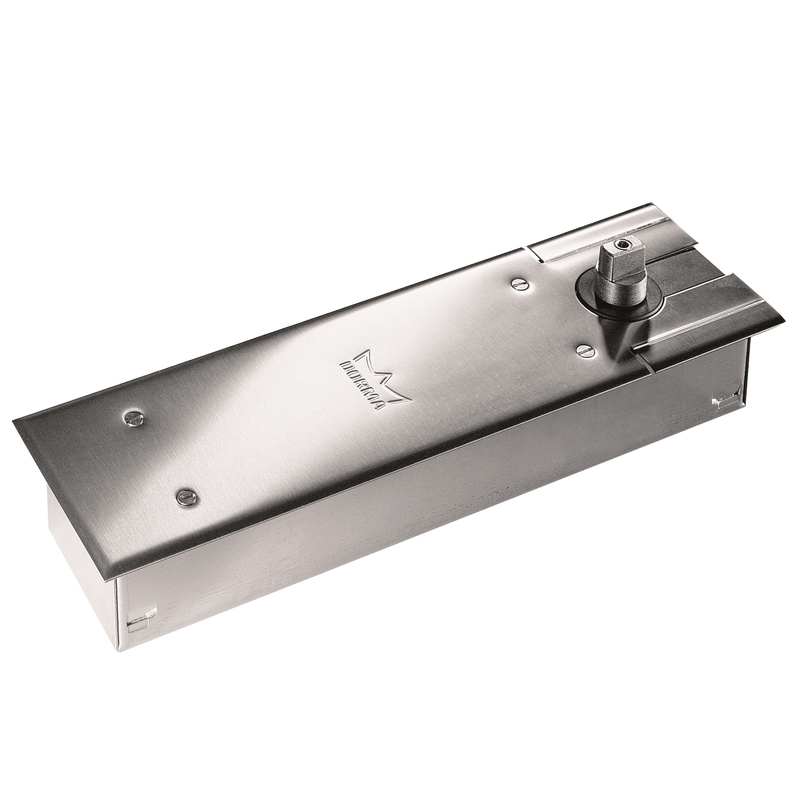

DormaKaba Multihousing BTS75VD LH 626 Concealed Door Floor Closer delivers superior performance with its Grade 1 rating and robust construction. Designed for commercial settings, this non-hold open floor closer features a left-hand orientation, making it an excellent choice for doors with a 3' width exterior and up to 3'6" width for interior use. It accommodates door weights of up to 260 lbs., ensuring reliability and durability. The BTS75VD is equipped with a standard offset arm and a mechanical back check, providing smooth operation and control. With a 175-degree swing, it allows for ample access, while its sleek satin chrome finish (626/US26D) adds a touch of elegance to any space. Installation is straightforward, as the unit is mounted on the floor, and it comes with a 25-year limited warranty, reflecting DormaKaba's commitment to quality. Featuring a hydraulic mounting style and a compact design (2" height, 11.25" length, and 3.75" width), this concealed floor closer integrates seamlessly into your architectural plans without compromising aesthetics. Enhance the functionality and style of your doors with the DormaKaba BTS75VD, a reliable solution for your commercial needs.
Concealed Door Floor Closer
Grade 1 Concealed Door Floor Closer, Non-Hold Open, 3/4" Offset, Left Hand, Size 1-4, No Delay, Satin Chrome Finish
Arm Type: Offset Arm, Standard
Back Check: Mechanical
Cement Case: Yes
Commercial Residential: Commercial
Degree Swing: 175 Deg.
Delay: No
Door Size: 3' Wide Exterior, 3' to 6" Wide Interior
Door Weight: 260 lbs.
Finish: 626/US26D
Finish Family: Matte Silver
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 25 Years
Mounting Group: Hydraulic
Mounting Location: Floor
Mounting Style: Offset
Pack Qty: 1
Pivot Included: No
Product Height: 2"
Product Length: 11.25"
Product Width: 3.75"
Screw Type: Metal
Sealed Closer: No
Series: BTS75V Series Door Closers
Spindle Size: 0.75"
Subtype: Floor Closers
Through Bolts: No
Type: Concealed Floor
Unit of Measure: Each
