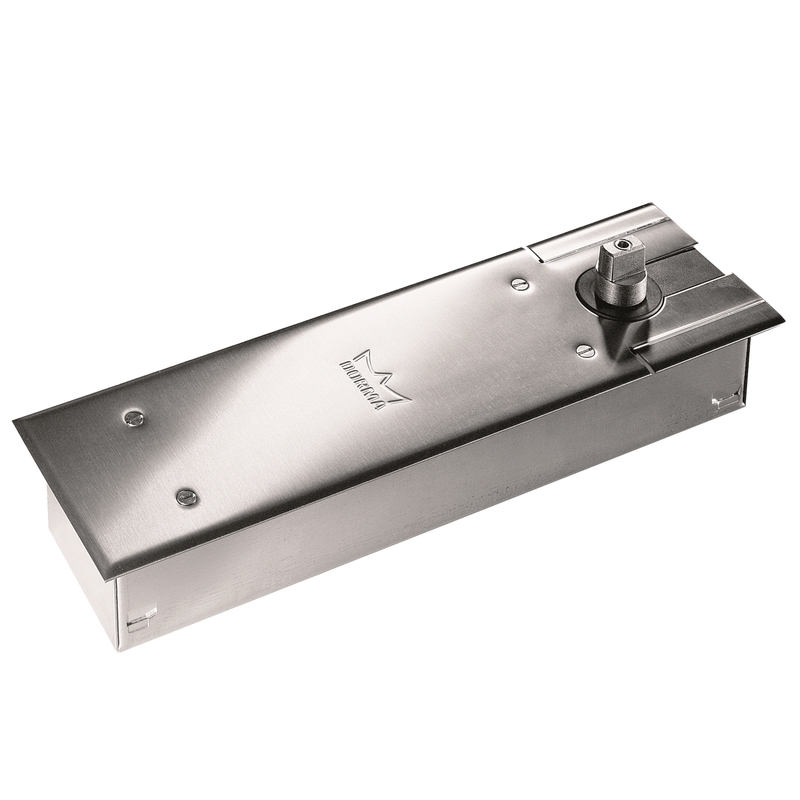

DormaKaba Multihousing BTS80D LH SZ4 626 Concealed Door Closer is a Grade 1 concealed floor closer designed for durability and reliability in commercial settings. Featuring a left-handed configuration, this unit boasts a 3/4" offset and is rated for doors up to 660 lbs., accommodating exterior doors up to 4' wide and interior doors from 4' to 6" wide. The BTS80D ensures smooth operation with its adjustable degree hold open feature and a maximum swing of 175 degrees, making it ideal for high-traffic areas. The heavy-duty offset arm and mechanical back check enhance safety by controlling the door's movement, while the hydraulic mounting ensures dependable performance. Finished in a sleek satin chrome (626/US26D), this closer not only delivers functionality but also complements modern architectural aesthetics. Installation is straightforward, and with a 25-year limited warranty, you can trust in its long-term reliability. Designed specifically for commercial applications, the BTS80D is the perfect choice for anyone seeking a robust and stylish door closer that meets the demands of busy environments. Choose DormaKaba for quality you can count on.
Concealed Door Closer
Grade 1 Concealed Floor Closer, 3/4" Offset, Left Hand, Size 4, Satin Chrome Finish
Manufacturer surcharge: $ 82.52
Arm Type: Offset Arm, Heavy Duty
Back Check: Mechanical
Cement Case: Yes
Commercial Residential: Commercial
Degree Hold Open: Adjustable
Degree Swing: 175 Deg.
Delay: Yes
Door Size: 4' Wide Exterior, 4' to 6" Wide Interior
Door Weight: 660 lbs.
Finish: 626/US26D
Finish Family: Matte Silver
Grade: Grade 1
Handing: Left-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 25 Years
Mounting Group: Hydraulic
Mounting Location: Floor
Mounting Style: Offset
Pack Qty: 1
Pivot Included: No
Product Height: 2.38"
Product Length: 13.44"
Product Width: 3.13"
Screw Type: Metal
Sealed Closer: No
Series: BTS80 Series Door Closers
Spindle Size: 0.75"
Subtype: Floor Closers
Through Bolts: No
Type: Concealed Floor
Unit of Measure: Each
