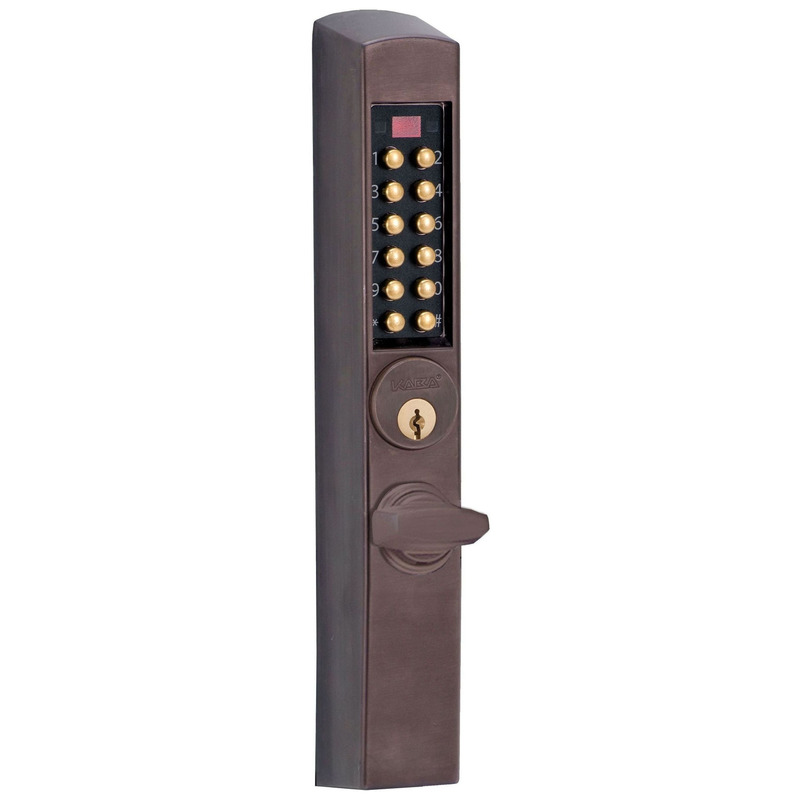

Dormakaba E3065MSNT-744-41 Eplex 3000 Mortise Lock

Kaba Access Dormakaba E3065MSNT-744-41 Eplex 3000 Mortise Lock offers a robust solution for managing access with unparalleled efficiency. Designed specifically for Adams Rite latches, this heavy-duty lockset supports up to 300 access codes and records an impressive 9,000 audit events, making it ideal for high-security commercial environments. Constructed with solid cast housing, the E-Plex 3000 ensures durability for both indoor and outdoor use, featuring a solid cast lever or thumbturn that withstands extensive wear. Its non-handed design allows for easy field adjustments, accommodating a backset of 31⁄32" (25 mm) and a minimum recommended stile of 2" (51 mm). The lock also includes a mortise cylinder in a Schlage "C" keyway, with an optional shell for interchangeable cores. Installation is straightforward, requiring only four mounting screws, and it fits doors with a thickness of 1¾" (44 mm). Additionally, the E-Plex 3000 meets American with Disabilities Act (ADA) standards, ensuring accessibility for all users. Finished in dark bronze with brass accents, this lock not only enhances security but also adds a touch of elegance to your entryways. Experience the convenience and reliability of Kaba Access with the E-Plex 3000 Mortise Lock.

Eplex 3000 Mortise Lock

E-Plex 3000 for Adams Rite Latches, 300 Access Codes, 9,000 Audit Events, Schlage C Keyway, Thumbturn, Dark Bronze with Brass Accents

The E-Plex 3000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

• Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications
• Handing: Non-handed, easily changed in the field
• Backset: 31⁄32" (25 mm) minimum
• Minimum Stile Recommended: 2" (51 mm)
• Key Override
  • Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway
  • Interchangeable Cores: Optional Mortise Shell accommodates small format—Best and equivalent (6-pin length)
• Door Preparation: Easily installs on narrow stile doors with four mounting screws
• Door Thickness: 1¾" (44 mm)
• Accessibility Standard: American with Disabilities Act (ADA)
