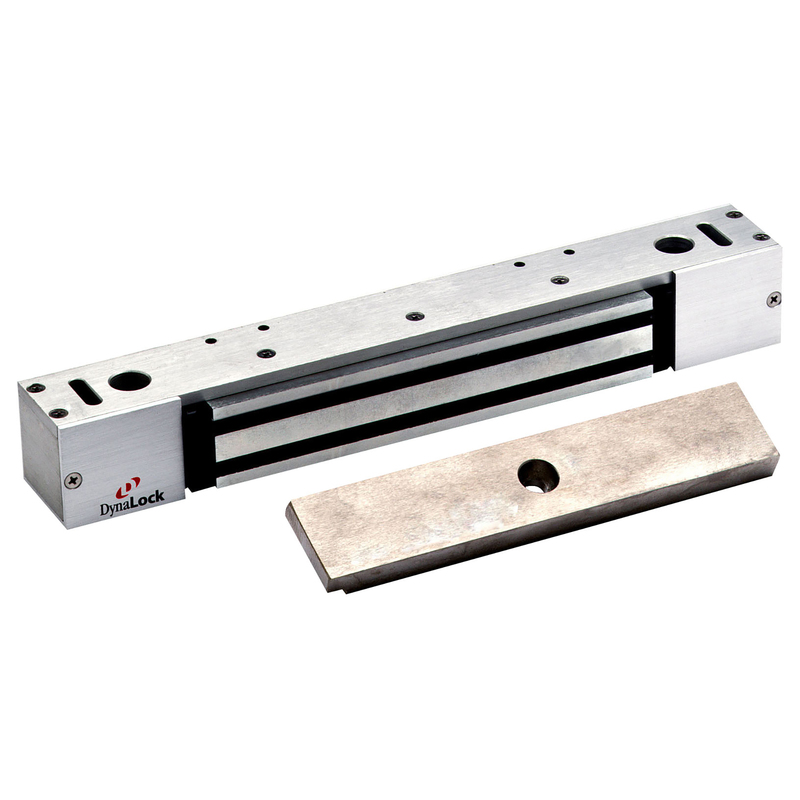

DynaLock 2268-10 1200LB Low Profile Maglock is engineered for superior life safety and high security, making it ideal for both rated and non-rated doors and frames. This full-size electromagnetic lock boasts a robust 1200 lb. holding force while maintaining a low profile of just 2 inches, perfect for egress doors with opening heights of 7 feet or less, ensuring compliance with safety codes. Designed for versatility, the 2268 Series is field selectable for either 12VDC or 24VDC operation, and an RC option is available for AC voltage needs. Built-in surge suppression enhances reliability, while the included 12-inch color-coded wire leads simplify installation. For added functionality, optional integrated door and lock status sensors enable remote monitoring, eliminating the need for separate door contacts. This maglock series caters to various applications, featuring single, double, and split armature models suitable for outswinging and inswinging doors. The adjustable mounting base provides ease of installation, and its economy pricing makes it a smart choice for commercial projects. Backed by a lifetime warranty, the DynaLock 2268-10 delivers the durability and performance required for medium to high-security environments.
1200LB Low Profile Maglock
Single Electromagnetic Lock Outswing, 12/24VDC
The 2268 Series is a full size 1200 lb. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. With a low 2" profile, the 2268 is perfect for opening heights of 7' or less to facilitate code compliance on designated egress doors. The 2268 is field selectable for 12VDC or 24VDC. Specify the RC option for AC voltage operation. Surge suppression is built-in and 12" long color coded wire leads are provided for easy installation. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate "door contacts".
2000 Series electromagnets are designed for life safety and high security.
This series is offered in single, double, and split armature models for both outswinging and inswinging doors.
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 2000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.09E+11
