DynaLock 2268-20 DSM2 DYN2 Double Low Profile Maglock offers a robust solution for high-security and life safety applications. Designed for both rated and non-rated doors, this full-size electromagnetic lock boasts a remarkable holding force of 1200 lbs, ensuring your entry points remain secure. With its low 2" profile, it's specifically tailored for openings up to 7' to meet code compliance on designated egress doors. Field-selectable for either 12VDC or 24VDC, with an option for AC voltage operation, the 2268-20 allows flexibility to suit various installation requirements. The built-in surge suppression and included 12" long color-coded wire leads streamline the installation process, making it accessible for both commercial professionals and knowledgeable homeowners alike. This maglock series also features optional integrated door and lock status sensors, providing remote monitoring capabilities without the need for separate door contacts. Available in single, double, and split armature models for outswinging and inswinging doors, the DynaLock 2268-20 is competitively priced for a full-size lock, ensuring medium to high security across your property. With an adjustable mounting base and a lifetime warranty, this maglock is a reliable choice for your security needs.

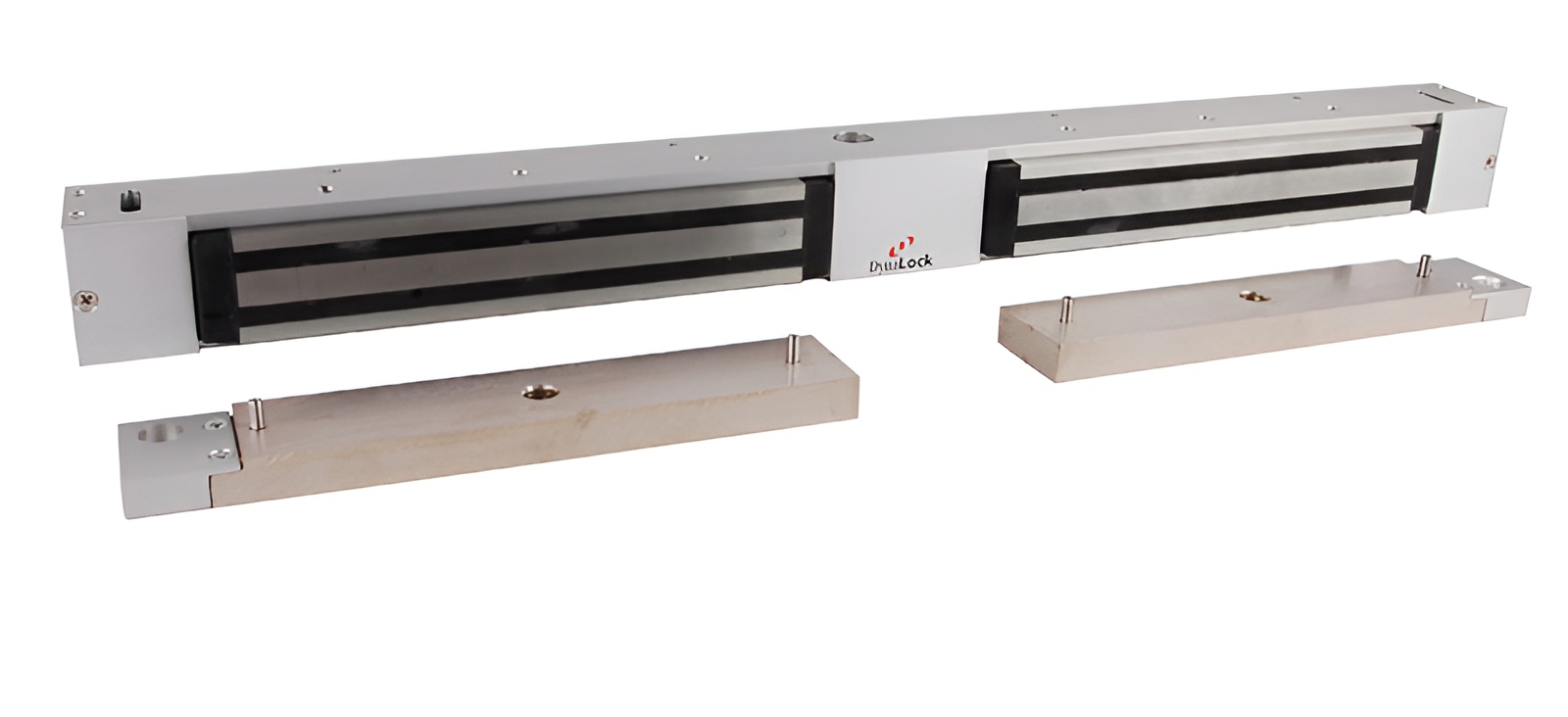

Double Low Profile Maglock
Double Electromagnetic Lock Outswing, Door Status Monitor, Dynastat Force Sensor, 12/24VDC
The 2268 Series is a full size 1200 lb. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. With a low 2" profile, the 2268 is perfect for opening heights of 7' or less to facilitate code compliance on designated egress doors. The 2268 is field selectable for 12VDC or 24VDC. Specify the RC option for AC voltage operation. Surge suppression is built-in and 12" long color coded wire leads are provided for easy installation. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate "door contacts".
2000 Series electromagnets are designed for life safety and high security.
This series is offered in single, double, and split armature models for both outswinging and inswinging doors.
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 2000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.0901E+11
