DynaLock 2268-TJ10 DSM 1200LB Low Profile Maglock offers robust security with a remarkable 1200 lb. holding force, making it ideal for both rated and nonrated doors. This single electromagnetic lock is specifically designed for inswing applications, ensuring life safety and high security in commercial settings. With a low profile of just 2 inches, the 2268 is suitable for openings up to 7 feet, facilitating code compliance on designated egress doors. Versatile operation is a hallmark of the 2268, as it can be field-selected for either 12VDC or 24VDC, with an optional RC configuration for AC voltage. Built-in surge suppression enhances durability, while the included 12-inch color-coded wire leads simplify installation. For added convenience, optional integrated door and lock status sensors provide remote monitoring capabilities without needing separate door contacts. Part of the DynaLock 2000 Series, this electromagnet comes in models suitable for single, double, and split armature configurations for both outswinging and inswinging doors. Economically priced, the 2268 combines medium to high security features with an adjustable mounting base and a lifetime warranty, making it a smart choice for commercial installations.
1200LB Low Profile Maglock
Single Electromagnetic Lock Inswing, Door Switch Monitor, 12/24VDC

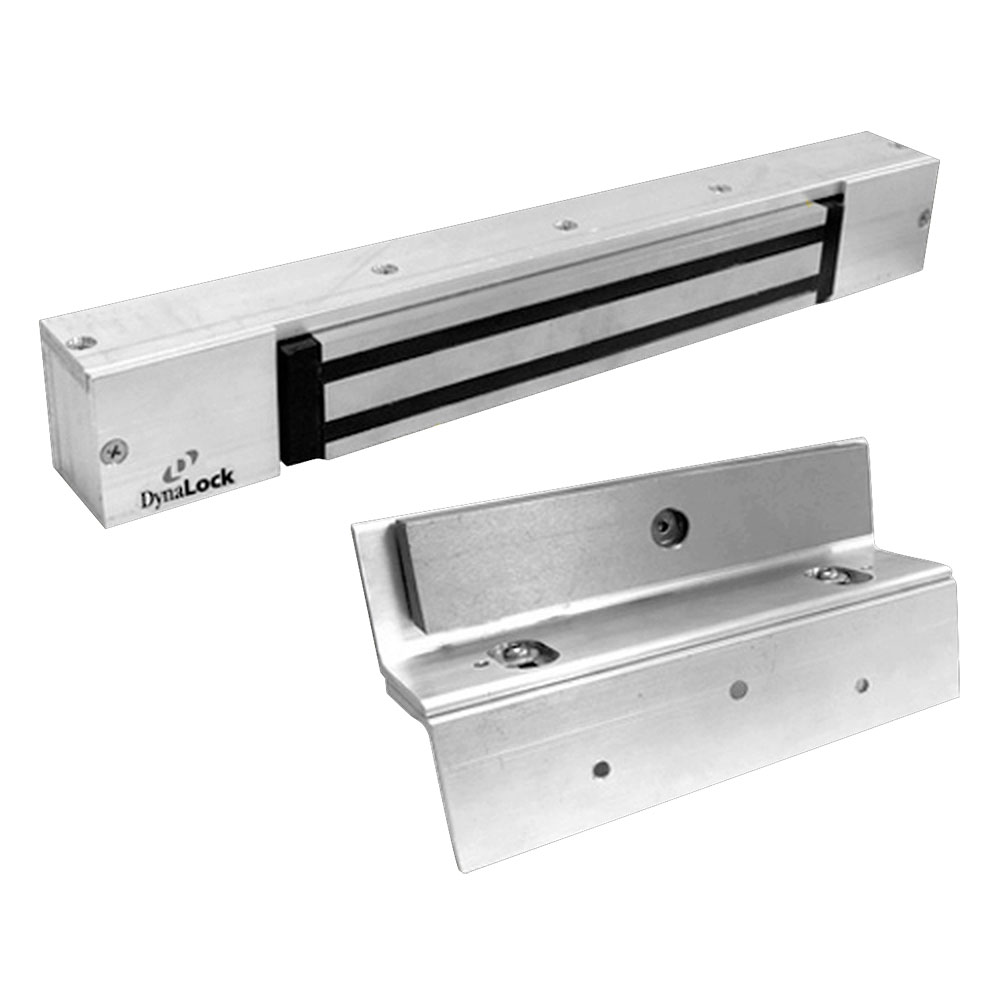

The 2268 Series is a full size 1200 lb. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. With a low 2" profile, the 2268 is perfect for opening heights of 7' or less to facilitate code compliance on designated egress doors. The 2268 is field selectable for 12VDC or 24VDC. Specify the RC option for AC voltage operation. Surge suppression is built-in and 12" long color coded wire leads are provided for easy installation. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate "door contacts".
2000 Series electromagnets are designed for life safety and high security.
This series is offered in single, double, and split armature models for both outswinging and inswinging doors.
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 2000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.0901E+11
