DynaLock 2280 DSM 1200LB Slimline Maglock offers an advanced solution for securing outswing doors with its impressive 1,200 lb. holding force. Designed for both commercial and residential applications, this low-profile maglock features a sleek, seamless housing milled from solid aluminum, ensuring superior resistance to moisture intrusion. Its adjustable mounting plate with staggered screw holes enhances overall stability, making installation straightforward and reliable. This innovative maglock is equipped with a built-in circuit board, facilitating ease of wiring and customization options. The high-impact plastic armature housing, featuring concealed rare-earth disc magnets, ensures precise alignment during installation, eliminating the possibility of misorientation. Additional sound-dampening foam pads further enhance user experience by minimizing noise upon engagement. Part of the DynaLock 2000 Series, the 2280 DSM is designed for medium to high security and is available in configurations for single, double, and split armature models to accommodate various door styles. With a lifetime warranty backing its construction, the DynaLock 2280 not only meets safety standards but also provides peace of mind. Operating on 12/24 VDC, this maglock is an economical choice for those seeking a reliable and robust locking solution.

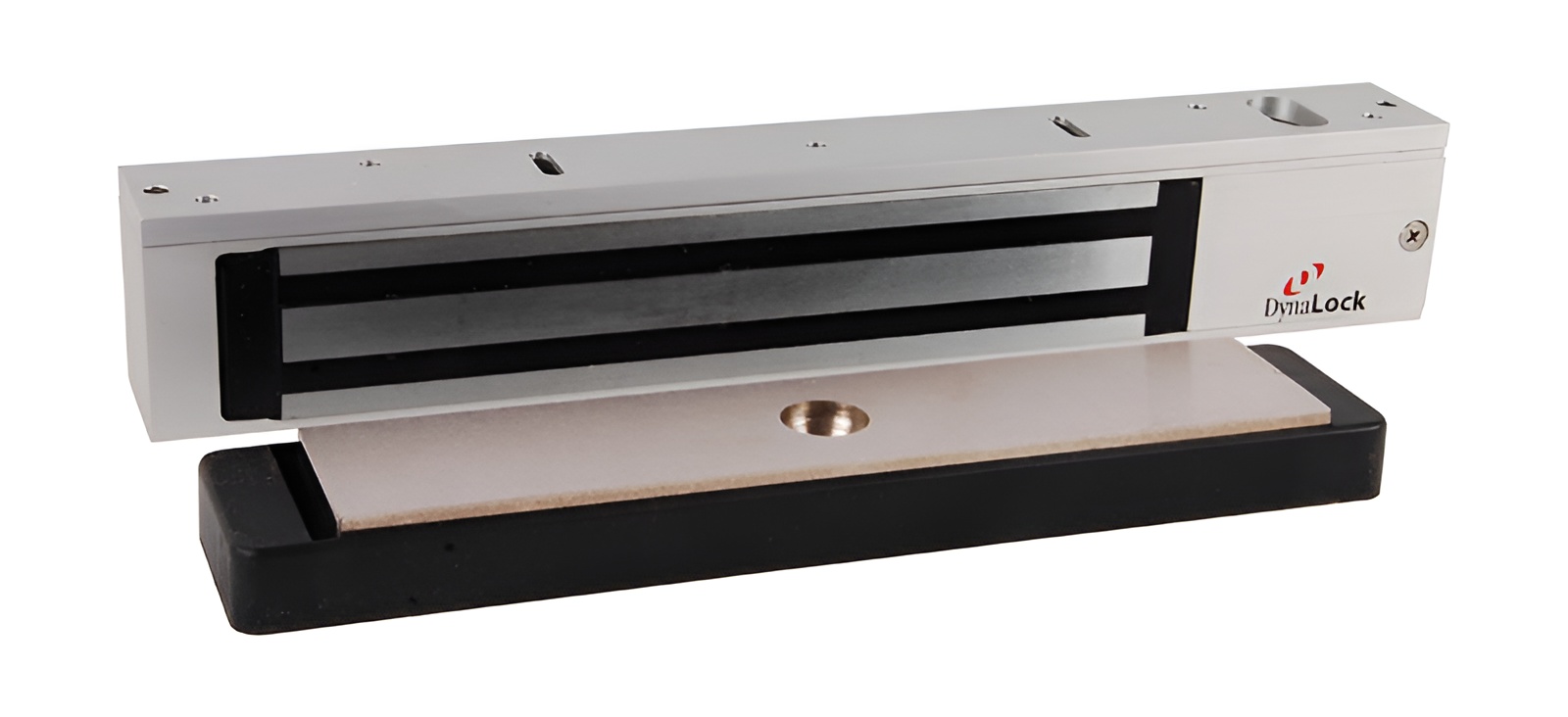

1200LB Slimline Maglock
Single Electromagnetic Lock Outswing, Door Switch Monitor, 12/24VDC
The new DynaLock 2280 Series joins our popular 2268 Series as an upscale, low profile 1,200 lb. holding force maglock. The 2280 features a reduced length, low profile seamless housing, milled from a solid aluminum billet. The one-piece housing offers superior resistance to moisture intrusion. An adjustable mounting plate offers staggered mounting screw holes to enhance mounted stability. Ease of wiring and selection of options is facilitated by a replaceable built-in circuit board. Incorporated in the overall design is a new high impact plastic armature housing. The housing includes concealed rare-earth disc magnets at each end, when the optional door status feature is ordered. This eliminates misorientation of the housing, when mounted. The housing fully captures the armature, eliminating the need for anti-spin pins. In addition, the housings incorporate foam pads to help dampen the sound of the armature engaging the lock face.
2000 Series electromagnets are designed for life safety and high security.
This series is offered in single, double, and split armature models for both outswinging and inswinging doors.
Manufacturer surcharge: $ 0.0
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 2000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.09E+11
