DynaLock 2280TJ80 DSM 1200LB Slimline Maglock offers a robust solution for securing inswing doors with its impressive 1,200 lb. holding force. Designed for both commercial and residential applications, this maglock features a low-profile, seamless housing crafted from solid aluminum billet, ensuring superior resistance to moisture intrusion. The adjustable mounting plate, with staggered screw holes, enhances stability during installation, making it a reliable choice for building professionals. The innovative design includes a built-in circuit board that simplifies wiring and option selection. Additionally, the high-impact plastic armature housing features concealed rare-earth disc magnets that prevent misorientation during mounting, while fully capturing the armature to eliminate the need for anti-spin pins. Foam pads are integrated to dampen sound upon engagement, ensuring a quieter operation. Operating on 12/24 VDC/VAC, the DynaLock 2280 Series is crafted for medium to high security, making it ideal for environments where safety is paramount. With a lifetime warranty, this maglock not only delivers security but also peace of mind. Available in single, double, and split armature models, it is designed to meet the diverse needs of various door configurations, setting a new standard in electromagnetic locks.

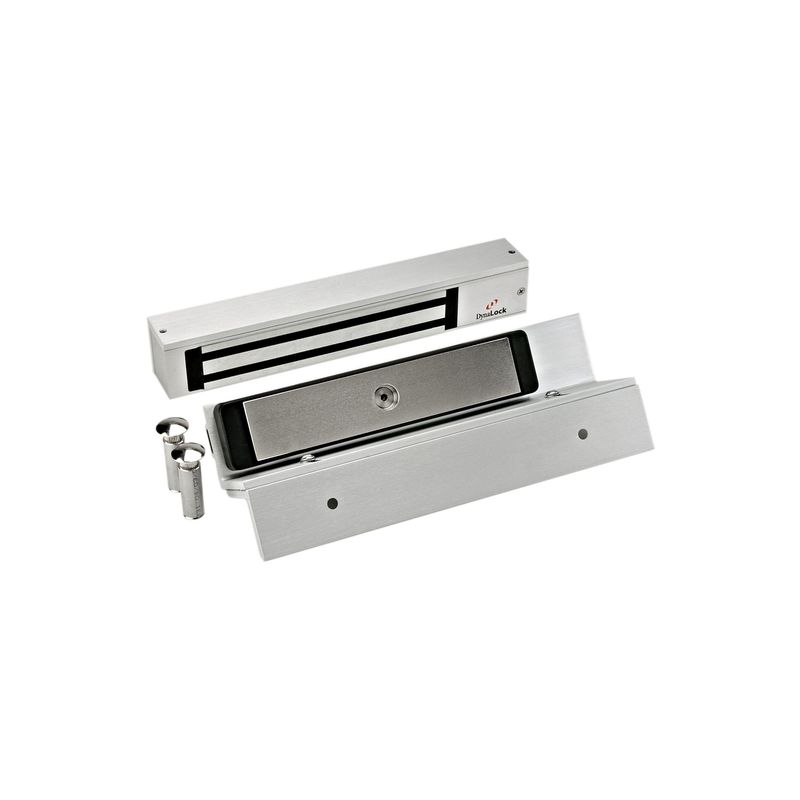

1200LB Slimline Maglock
Single Electromagnetic Lock Inswing, Door Switch Monitor, 12/24VDC
The new DynaLock 2280 Series joins our popular 2268 Series as an upscale, low profile 1,200 lb. holding force maglock. The 2280 features a reduced length, low profile seamless housing, milled from a solid aluminum billet. The one-piece housing offers superior resistance to moisture intrusion. An adjustable mounting plate offers staggered mounting screw holes to enhance mounted stability. Ease of wiring and selection of options is facilitated by a replaceable built-in circuit board. Incorporated in the overall design is a new high impact plastic armature housing. The housing includes concealed rare-earth disc magnets at each end, when the optional door status feature is ordered. This eliminates misorientation of the housing, when mounted. The housing fully captures the armature, eliminating the need for anti-spin pins. In addition, the housings incorporate foam pads to help dampen the sound of the armature engaging the lock face.
2000 Series electromagnets are designed for life safety and high security.
This series is offered in single, double, and split armature models for both outswinging and inswinging doors.
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 2000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.0901E+11
