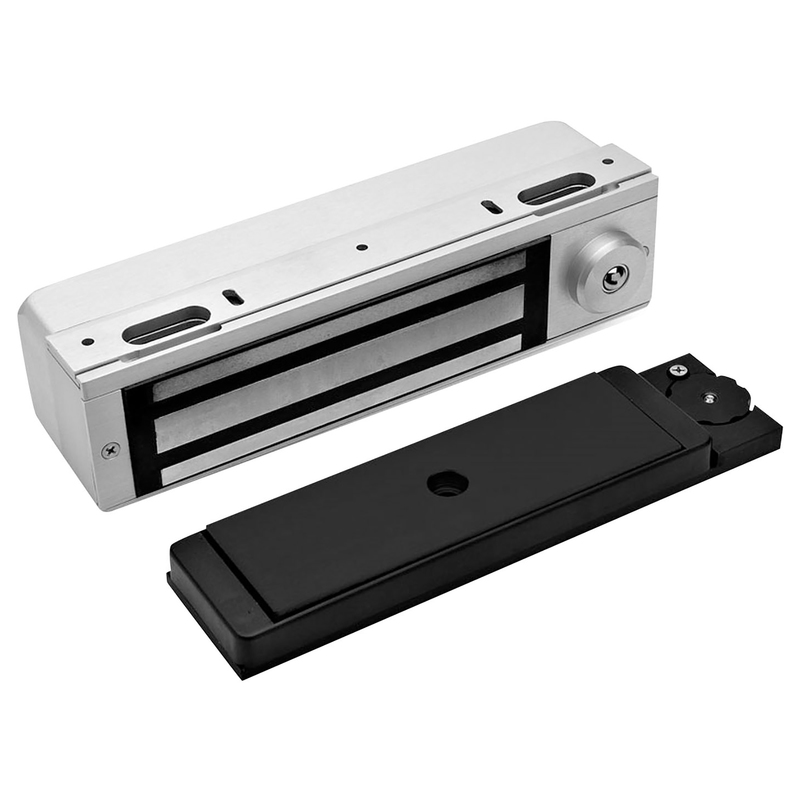

DynaLock 3101C ATS DSM DYN Delay Egress Maglock combines advanced technology with robust security features, making it an ideal choice for both life safety and high-security applications. This single electromagnetic lock is designed for outswing doors and integrates seamlessly with existing mechanical hardware. Its innovative delay egress functionality allows for a secure exit while still adhering to safety codes. When pressure of 15 lbs. or less is applied, the lock becomes unlatched, triggering a timer that activates an audible alarm and a pulsating red LED for 15 seconds (with an option for 30 seconds). After the delay, the lock releases, and a continuous alarm sounds with a green LED until the door is closed and the system resets. The built-in key switch or remote signal provides easy reset and bypass options. Operating on 12/24 VDC/VAC, the 3101C features a one-piece housing for durability and a FasTrak mounting system for quick installation. With a lifetime warranty and compatibility with fire alarm systems, this maglock is perfect for rated or non-rated doors and frames, ensuring peace of mind without compromising on safety or convenience.
Delay Egress Maglock
Single Electromagnetic Lock Delayed Egress Outswing, Door Status Monitor, Dynastat Force Sensor
The 3101C Series is designed to satisfy life safety codes and high security needs at the same time. The next generation 3101C system offers better technology, resistance to electrical surges, and a virtually maintenance free sensing system. In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by applying 15 Lbs. or less pressure to the door will cause the door to become unlatched, and activate the 3101C delay egress timer. The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in key switch or remote signal. The system unlocks automatically when the 3101B is integrated with the building emergency fire alarm system or power is removed. Fire alarm contacts on the 3101C Lock are field selectable for NO and NC signals
Designed for life safety and high security on rated or non-rated doors and frames.
The 3000 series is designed for life safety and high security on rated or non-rated doors and frames.
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 3000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.09E+11
