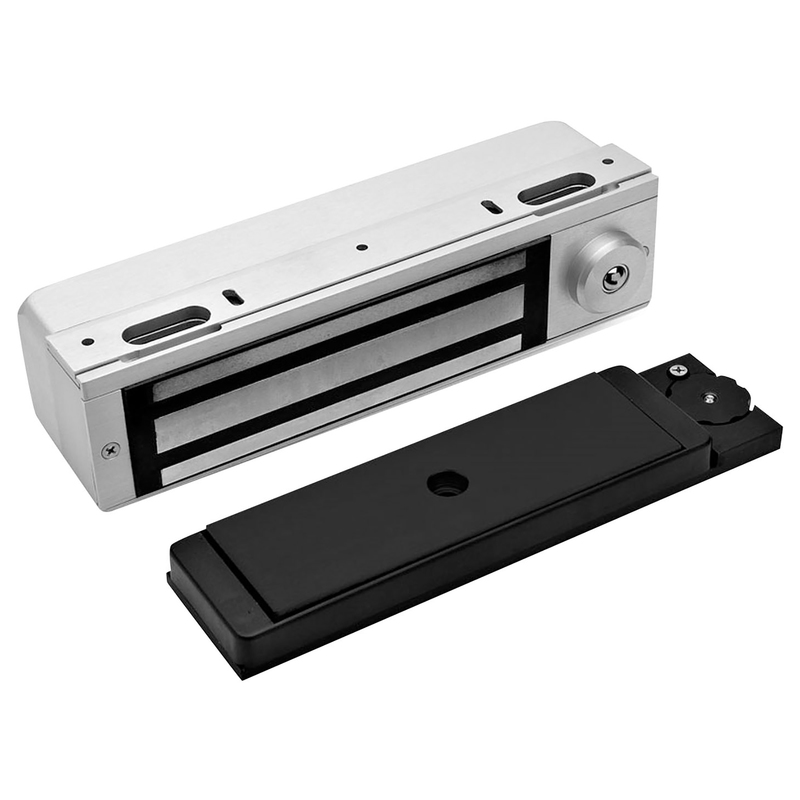

DynaLock 3101C DSM Delay Egress Maglock offers a robust combination of life safety and high security in a single electromagnetic lock designed for outswing doors. This advanced system ensures compliance with life safety codes while providing enhanced security features. The 3101C operates by securely latching the door when closed and magnetically holding it in place. When an attempt to exit is made with a pressure of 15 lbs. or less, the lock releases and activates a delay egress timer. An audible alert and a pulsating red LED signal for 15 seconds (with a selectable option for 30 seconds), after which the lock releases completely, and the audible alarm continues with a green LED until the door is closed and reset. This maglock is engineered for reliable performance with resistance to electrical surges and a maintenance-free sensing system. It operates on 12/24 VDC/VAC and features a one-piece housing for durability. The installation is simplified with the FasTrak mounting system, and the unit comes with a lifetime warranty, ensuring peace of mind. The 3101C integrates seamlessly with fire alarm systems, enhancing safety during emergencies. Ideal for commercial settings, DynaLock 3101C is the perfect solution for secure and compliant access control.
Delay Egress Maglock
Single Electromagnetic Lock Delayed Egress Outswing, Door Sensor Switch
The 3101C Series is designed to satisfy life safety codes and high security needs at the same time. The next generation 3101C system offers better technology, resistance to electrical surges, and a virtually maintenance free sensing system. In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by applying 15 Lbs. or less pressure to the door will cause the door to become unlatched, and activate the 3101C delay egress timer. The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in key switch or remote signal. The system unlocks automatically when the 3101B is integrated with the building emergency fire alarm system or power is removed. Fire alarm contacts on the 3101C Lock are field selectable for NO and NC signals
Designed for life safety and high security on rated or non-rated doors and frames.
The 3000 series is designed for life safety and high security on rated or non-rated doors and frames.
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 3000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.0901E+11
