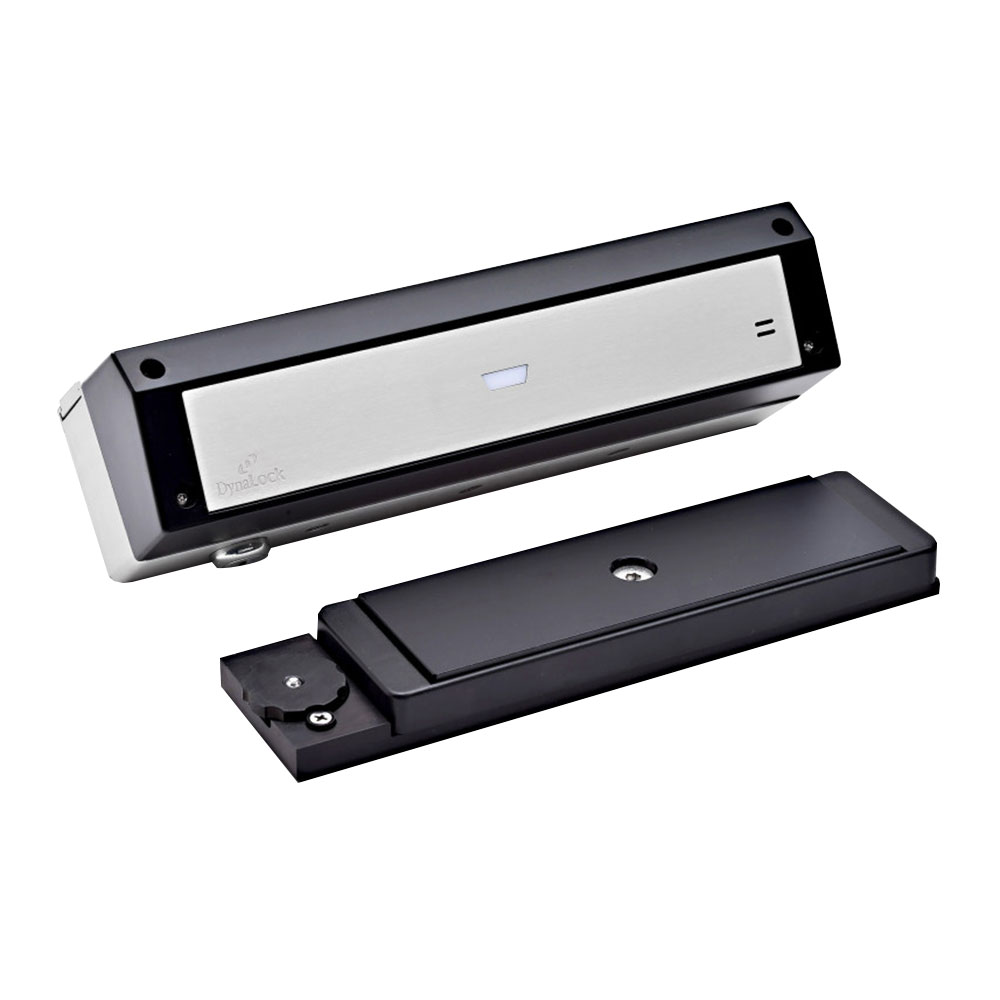

DynaLock 3101C-G2 Delay Egress Maglock offers a robust solution for facilities requiring enhanced security while adhering to life safety codes. This single electromagnetic lock features an impressive 1500-lbs. holding force, making it ideal for both rated and non-rated doors and frames. The next-generation 3101C system is engineered with advanced technology that provides resistance to electrical surges, ensuring reliable operation in high-demand environments. Designed for ease of use, the 3101C allows for a delayed egress function. When a user applies 15 lbs. of pressure or less to the door, the lock initiates a delay timer, activating an audible alarm and a pulsating red LED for 15 seconds (or 30 seconds, field selectable). After this period, the lock will release, accompanied by a continuous audible alert and a green LED until the door is closed and the system is reset. The lock can be reset or bypassed using a built-in key switch or a remote signal. With a one-piece housing and FasTrak mounting for straightforward installation, the DynaLock 3101C-G2 is designed for commercial applications, operating on 12/24 VDC/VAC. Backed by a lifetime warranty, it stands as a reliable choice for securing your premises effectively.
Delay Egress Maglock
Single Electromagnetic Lock Delayed Egress Outswing, 1500-lbs. Holding Force, Delayed Egress
The 3101C Series is designed to satisfy life safety codes and high security needs at the same time. The next generation 3101C system offers better technology, resistance to electrical surges, and a virtually maintenance free sensing system. In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by applying 15 Lbs. or less pressure to the door will cause the door to become unlatched, and activate the 3101C delay egress timer. The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in key switch or remote signal. The system unlocks automatically when the 3101B is integrated with the building emergency fire alarm system or power is removed. Fire alarm contacts on the 3101C Lock are field selectable for NO and NC signals
Designed for life safety and high security on rated or non-rated doors and frames.
The 3000 series is designed for life safety and high security on rated or non-rated doors and frames.
Manufacturer surcharge: $ 0.0
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 3000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.09E+11
