DynaLock 3101C-TJ101 Delay Egress Maglock is engineered to meet both life safety codes and high-security requirements, making it an ideal choice for commercial applications. This single electromagnetic lock features a delayed egress mechanism that allows for safe exits while maintaining security. When the door is normally closed and latched by existing mechanical hardware, the 3101C Lock magnetically secures it. Upon applying pressure of 15 lbs. or less, the door unlatches, triggering the delay egress timer. An audible alarm and pulsating red LED indicator will alert users for 15 seconds (or 30 seconds, if field-selected), after which the lock releases. The continuous green LED signals that the door can be exited, resetting once the door is closed. Designed for high security on rated or non-rated doors and frames, the 3101C operates on 12/24 VDC/VAC and features a robust one-piece housing. Installation is simplified with the FasTrak mounting system, and the lock comes with a lifetime warranty, ensuring long-term reliability. Integration with fire alarm systems allows for automatic unlocking, enhancing overall safety. DynaLock’s 3101C-TJ101 is the perfect solution for those prioritizing security and safety in their facilities.

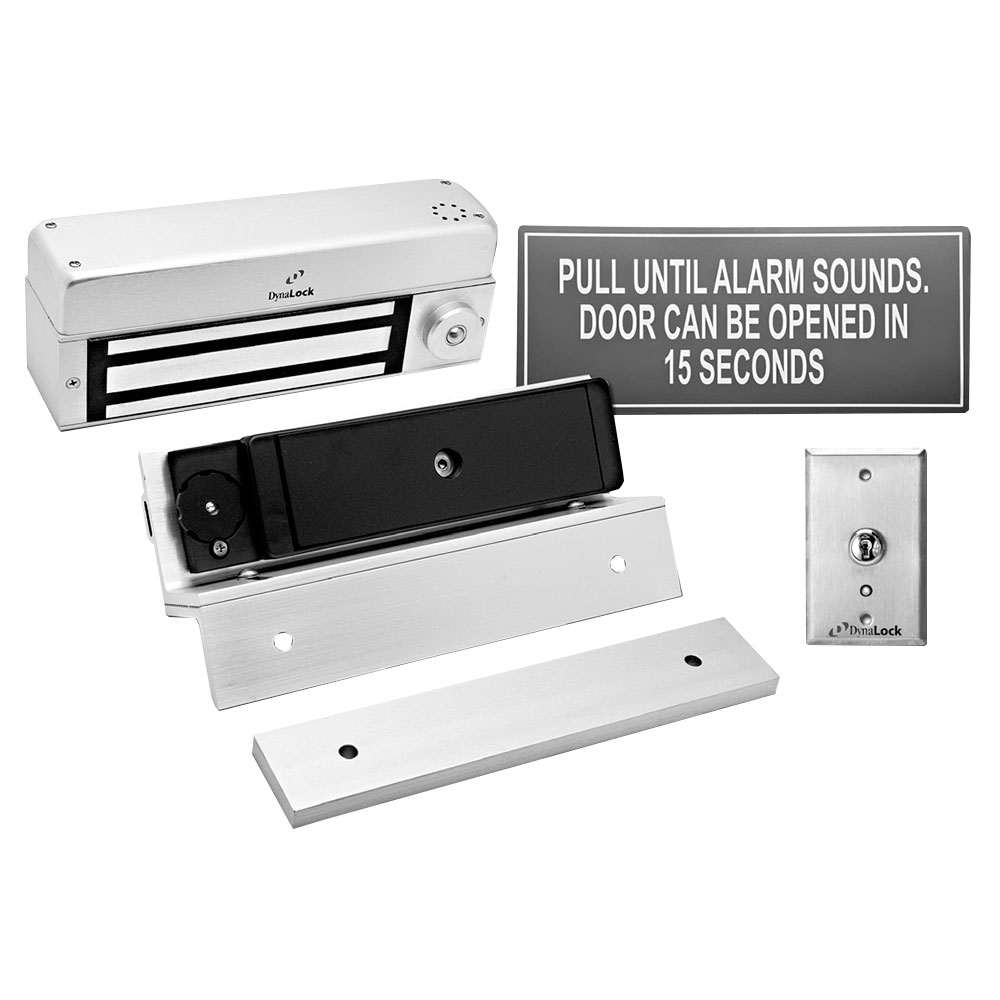

Delay Egress Maglock
Single Electromagnetic Lock Delayed Egress Inswing
The 3101C Series is designed to satisfy life safety codes and high security needs at the same time. The next generation 3101C system offers better technology, resistance to electrical surges, and a virtually maintenance free sensing system. In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by applying 15 Lbs. or less pressure to the door will cause the door to become unlatched, and activate the 3101C delay egress timer. The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in key switch or remote signal. The system unlocks automatically when the 3101B is integrated with the building emergency fire alarm system or power is removed. Fire alarm contacts on the 3101C Lock are field selectable for NO and NC signals
Designed for life safety and high security on rated or non-rated doors and frames.
The 3000 series is designed for life safety and high security on rated or non-rated doors and frames.
Commercial Residential: Commercial
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: DynaLock 3000 Series Maglocks
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 6.09E+11
