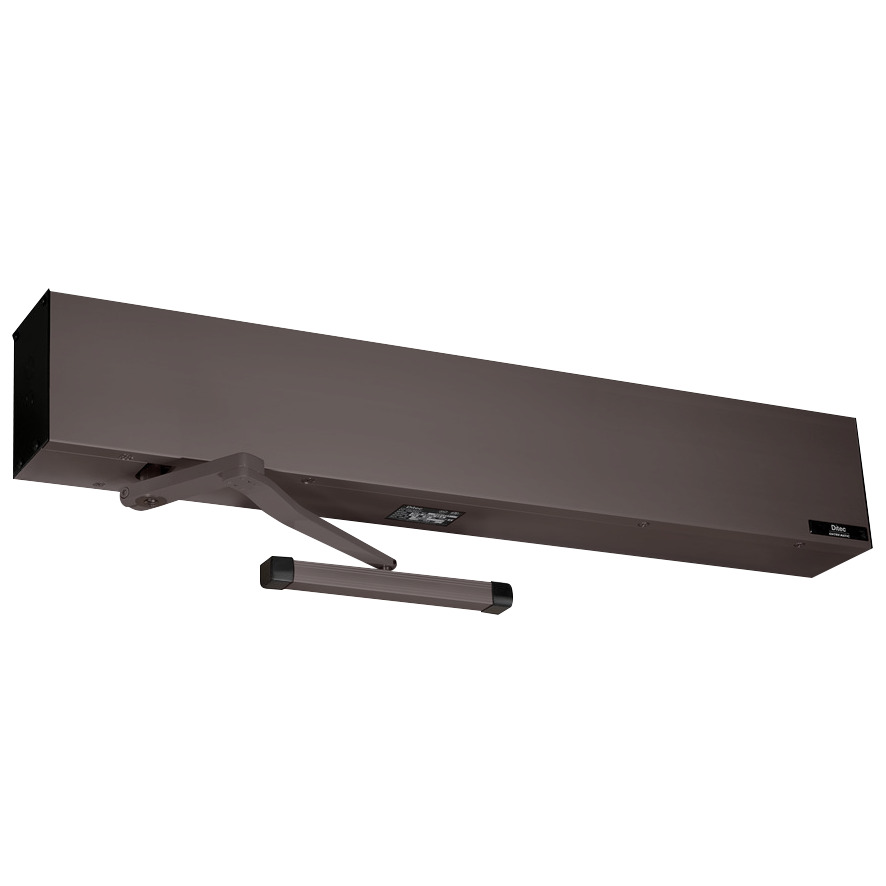

Entrematic HA8-SP LPL DB 39 Ditec Low Energy Operator is a versatile electromechanical door operator designed to meet the demands of high-traffic environments. With a 39" header and a slide track arm, this surface-mounted operator is ideal for doors up to 36" wide and can accommodate weights of up to 200 lbs. Its dark bronze painted finish adds a touch of elegance, making it suitable for a range of settings, including hospitals, retail stores, airports, and industrial buildings. This low-energy operator is ADA compliant, ensuring accessibility for all users. The adjustable back check feature enhances safety by controlling the door's motion, while the electric hold open function allows for convenient access. Designed for left-handed installations on the pull side, the HA8-SP also offers a delay feature to manage traffic flow effectively. Built to last, this operator is UL listed (UL 325 / UL10C) and comes with a limited three-year warranty. Its commercial-grade construction ensures reliability and performance in demanding applications. Whether for new installations or retrofits, the Entrematic HA8-SP LPL DB is the perfect choice for those seeking a reliable and stylish door operator solution.
Ditec Low Energy Operator
Ditec Low Energy Standard Profile Surface Mounted Electromechanical Door Operator, 39" Header, Slide Track Arm Standard, Pull Side Mounted, Up to 36" Door, Dark Bronze Painted Finish, Left Handed
The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19
Arm Type: Slide Track Arm, Standard
Back Check: Adjustable
Commercial Residential: Commercial
Cover: Less Cover
Delay: Yes
Door Size: Up to 36"
Door Weight: 200 lbs.
Finish: 690/US20
Finish Family: Dark Bronze
Fire Rated: 1 Hour {C}
Fire Rating: 1 Hour {C}
Handing: Left-Handed
Hold Open: Yes
Hold Open Type: Electric
Installation: Commercial
Limited Warranty: 3 Years
Mounting Group: Electromechanical
Mounting Location: Pull Side
Mounting Style: Slide Track
Pack Qty: 1
Physically Handicapp: Yes
Reveal Size: Up to 4"
Series: Ditec HA8 Series Door Operators
Ship Weight: 45 lbs.
Subtype: Door Operators
Type: Surface
Ul Listing: UL 325 / UL10C
Unit of Measure: Each
Voltage: 115 +- 5VAC, 60Hz, 3A
