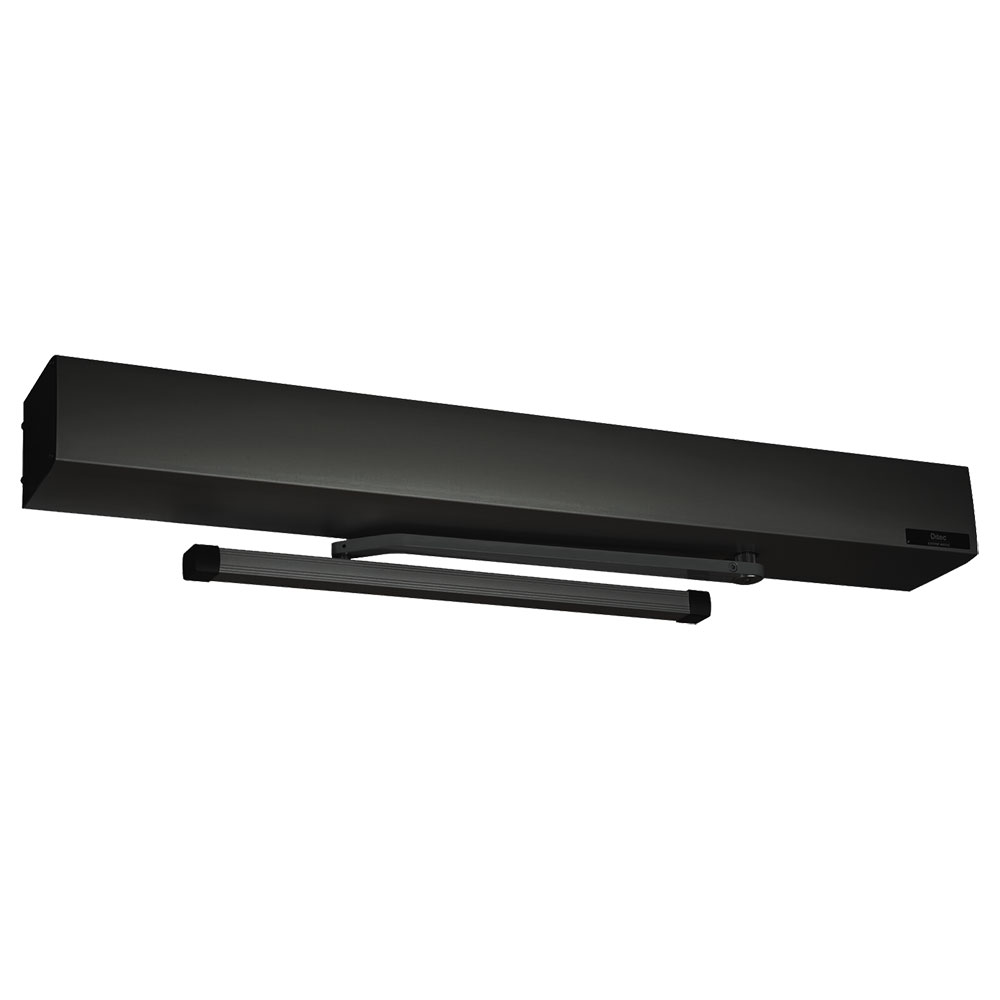

Entrematic HA9 LPL RPL BL 75 Ditec Low Energy Operator offers a robust and reliable solution for high-traffic environments. This surface-mounted electromechanical double door operator features a compact 75" header and a slide track arm, making it ideal for installations in schools, hospitals, retail stores, and more. Designed for a single 36" door, the operator is finished in a sleek black paint, combining aesthetics with functionality. With an auxiliary power requirement of 24VDC and a maximum of 400mA, the HA9 ensures efficient operation. The adjustable back check feature enhances safety by controlling the door's closing speed, while the electric hold open type provides convenience in busy settings. This model is compliant with ADA standards, ensuring accessibility for physically handicapped individuals. The HA9 is suitable for commercial use and is UL certified under UL 325 and UL10C standards, ensuring its reliability and safety. It supports a door weight of up to 200 lbs. and is rated for one hour of fire resistance, making it a secure choice for various applications. Backed by a one-year limited warranty, the Entrematic HA9 is a dependable addition to any door hardware system, combining efficiency with high-quality performance.
Ditec Low Energy Operator
Ditec Low Energy Surface Mounted Electromechanical Double Door Operator, 75" Header, Slide Track Arm Standard, Pull Side Mounted, 36" Single Door, Black Painted Finish
The Ditec HA9 low-energy operator comes loaded with features while offering the same quiet, dependable operation you've come to expect in the low-profile header size you love. The HA9 is perfect for high-traffic locations including schools & universities, hospitals, retail stores, airports, convention centers, casinos, industrial buildings and offices.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19
Arm Type: Slide Track Arm, Standard
Aux Power: 24VDC, 400mA Max
Back Check: Adjustable
Commercial Residential: Commercial
Cover: Metal
Delay: Yes
Door Size: 36" Single Door
Door Weight: 200 lbs.
Finish: 693
Finish Family: Black
Fire Rated: 1 Hour {C}
Fire Rating: 1 Hour {C}
Hold Open: Yes
Hold Open Type: Electric
Installation: Commercial
Limited Warranty: 1 Year
Mounting Group: Electromechanical
Mounting Location: Pull Side
Mounting Style: Slide Track
Pack Qty: 1
Physically Handicapp: Yes
Reveal Size: Up to 2-3/8"
Series: Ditec HA9 Series Door Operators
Ship Weight: 90 lbs.
Subtype: Door Operators
Type: Surface
Ul Listing: UL 325 / UL10C
Unit of Measure: Each
Voltage: 120 VAC +10/-15%, 50/60 Hz
