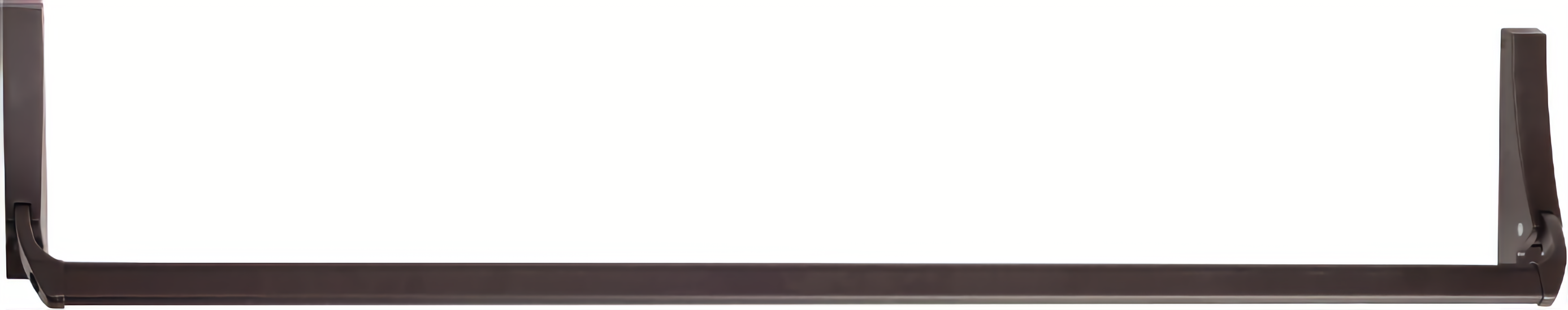

Falcon Lock 1990EO-P13-44X84 Narrow Stile Concealed Vertical Rod Exit Device, 44in x 84in, Grade 1, Dark Bronze

Falcon Lock 1990EO-P13-44X84 Narrow Stile Concealed Vertical Rod Crossbar Exit Device is engineered for reliable performance and security in commercial applications. This Grade 1 exit device features a robust design, crafted with hardened steel latches and an adjustable PB48 strike, ensuring both safety and quiet operation. Designed to accommodate 1-3/4" thick metal doors, the device is field reversible and non-handed, making installation straightforward. The standard hex dogging feature allows for easy operation, while the rim cylinder provides options for key entry or hold back, giving you flexibility according to your security needs. With a width of 44 inches, the crossbar is adjustable to fit doors measuring up to 3' 8" x 7', and additional length crossbars are available for larger openings. It features concealed fasteners for a clean appearance and complies with ANSI A156.3 Grade 1 standards, ensuring durability and reliability in high-traffic areas. The Falcon Lock 1990EO-P13-44X84 is available in a sleek dark bronze finish, enhancing its aesthetic appeal while offering enhanced protection. With vertical rods standard up to 7 feet and extension kits available, this exit device is a perfect choice for those looking to combine functionality and style in their security solutions.

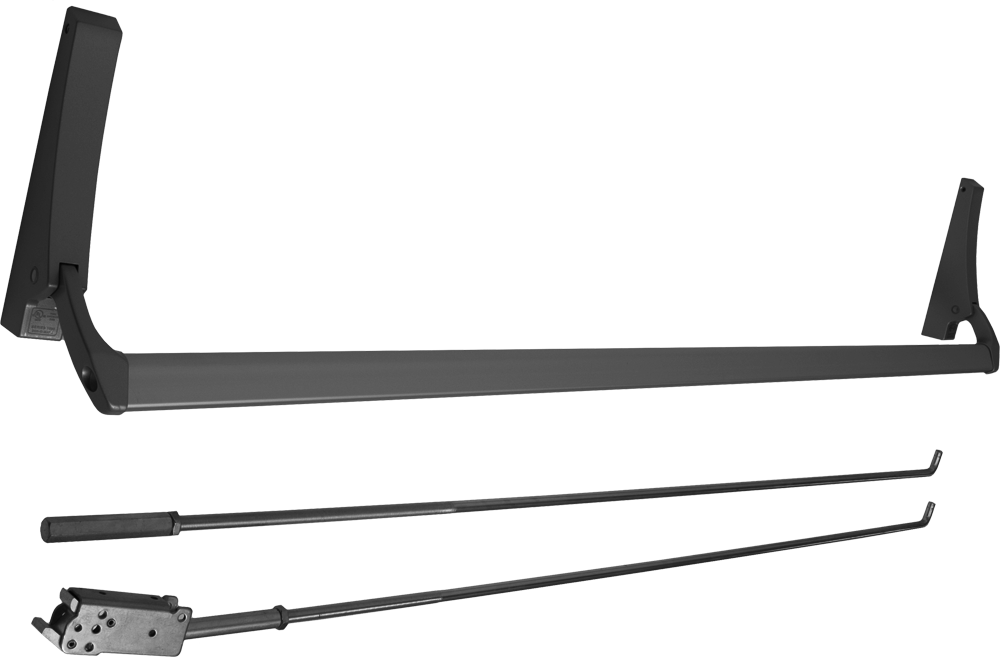

Narrow Stile Concealed Vertical Rod Crossbar Exit Device, 44in x 84in, Hex Dogging, PB48 Strike, Grade 1, 695/SP313 Dark Bronze Painted

The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.

Specifications:

• Hand: Field reversible, non handed
• Strikes: PB48 top
• Latches:
• Hex bottom latch (standard)
• RL - rod bottom latch
• PL - Pullman bottom latch
• ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
• Dogging Feature: Hex dogging standard
• Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable)
• Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7' door, extra length cross bar available
• Doors: 1-3/4" thick metal doors
• Projections: 4-3/8" extended, 2-1/2" depressed
• Stile: 1-3/4" minimum
• Fasteners: All mounting screws are concealed
• ANSI: Certified ANSI A156.3 Grade 1 standards
• Vertical Rods: 7' standard, extension rod kits available up to 10'

Series Models:

Finishes:

• P28/689 - Painted aluminum – silver
• P13/695 - Painted aluminum – dark bronze
• P35/622 - Painted aluminum – black
• US26D/702 - Satin chrome

Features

• Hex bottom latch (standard)
• Latches:
• Dogging Feature: Hex dogging standard
• ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
• Projections: 4-3/8" extended, 2-1/2" depressed
• Strikes: PB48 top
• RL - rod bottom latch
• ANSI: Certified ANSI A156.3 Grade 1 standards
• Doors: 1-3/4" thick metal doors
• Stile: 1-3/4" minimum
• Vertical Rods: 7' standard, extension rod kits available up to 10'
• Hand: Field reversible, non handed
• PL - Pullman bottom latch
• Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable)
• Fasteners: All mounting screws are concealed
• Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7' door, extra length cross bar available

Resources

• Cut Sheet
