Falcon Lock 24C-NL-US26D-36X96 KIT is a reliable and stylish narrow stile concealed vertical rod exit device designed to enhance security without compromising aesthetics. Constructed from extruded aluminum, this device offers impressive strength and impact resistance, making it ideal for both commercial and residential applications. The advanced two-point latching system ensures robust security, while the patented center slide mechanism allows for easy field adjustments, catering to varied installation needs. This exit device features a streamlined design with no exposed screws or rivets, providing a clean and modern look. Its stainless steel push pad cover is scratch-resistant, ensuring durability and longevity. The hex dogging feature, which requires only a half turn for operation, minimizes wear and tear, while the included 4188 and 2130 strikes ensure compatibility with standard doors. Designed for 1-3/4" thick wood or metal doors, the Falcon Lock 24C-NL also supports reversible handing for versatile installation options. Certified to ANSI A156.3 grade 1 standards, it meets rigorous safety requirements, making it a dependable choice for panic exit and fire exit hardware. Available in a brushed satin chrome finish, this device combines functionality with an elegant appearance, perfect for any commercial space.

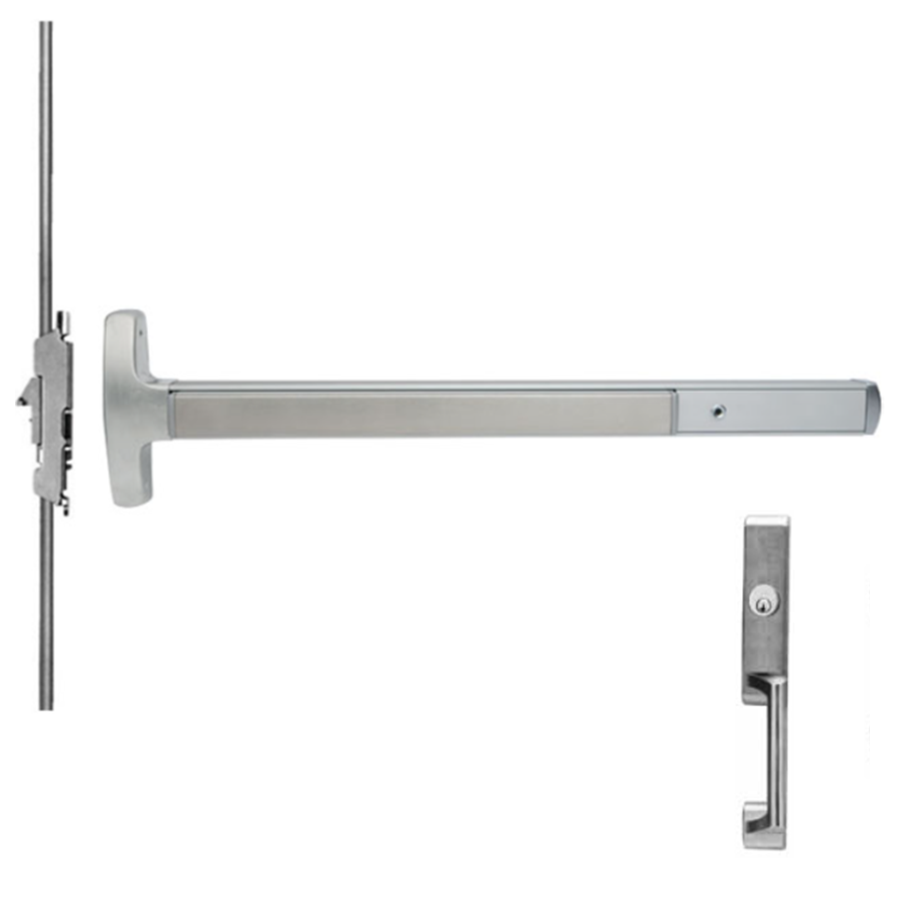

KIT - Narrow Stile CVR Concealed Vertical Rod Exit Device, Escutcheon Nightlatch Pull Trim 718NL 36in x 96in, Hex Dogging, Reversible Handing, Includes 4188 and 2130 Strikes, Grade 1, 626/US26D Satin Chrome

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible or specify handing.
• Functions: EO, DT, NL, L or K, L(NL) or K(NL).
• Strikes: 4188 mortised top and 2130 flush strike bottom, optional bottom 2126A and 4155.
• Latchbolt: Top stainless steel, top latch 3⁄4" throw. Bottom bolt 1⁄2" throw.
• Deadlocking latchbolt: Standard with top latch.
• Latch retention hold: Standard with top latch.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder dogging with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify if other than 1-3⁄4" thick.
• Projections: 2-3⁄4" maximum, 2" dogged.
• Stile: 2-1⁄4" minimum when used in pairs. (6" minimum on wood doors).
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.
• Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 2 - 425 (# 10-24) SNB and 2 - 325 (1⁄4-20) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• 24-V-LBR: Less bottom rod concealed vertical device.
• Vertical rods: Furnished to length based on 40" horizontal CL to finished floor and a 7’ 0" door. Variations from these standards must be specified when ordering.
• Patented center slide: For ease of adjustment.

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625-Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
