Falcon Lock 25C-L-DAN-US26D-36X96-RHR KIT is a sophisticated CVR Concealed Vertical Rod Exit Device, perfect for enhancing security in commercial settings. This device features an elegant escutcheon paired with a durable Dane lever trim, designed specifically for 36-inch by 96-inch doors. With a right-hand reversible design and Grade 1 certification, it offers superior reliability and performance. Constructed from extruded aluminum, the Falcon 25C series ensures exceptional strength and impact resistance, making it ideal for high-traffic areas. The device’s two-point latching system provides enhanced security, while the patented center slide mechanism allows for easy adjustments in the field. Its streamlined design, with no exposed screws or rivets, offers a clean and attractive installation. Included in this kit is a hex dogging feature that prevents wear with no threaded parts, enhancing longevity. The stainless steel push pad cover is scratch-resistant, and flush-end caps protect against damage in demanding environments. This exit device is suitable for both single and double doors, and its narrow stile center case is a perfect fit for storefront applications. With features like electric function compatibility for integration with security systems and a range of finishes including satin chrome, the Falcon Lock 25C-L-DAN is an excellent choice for your security needs.

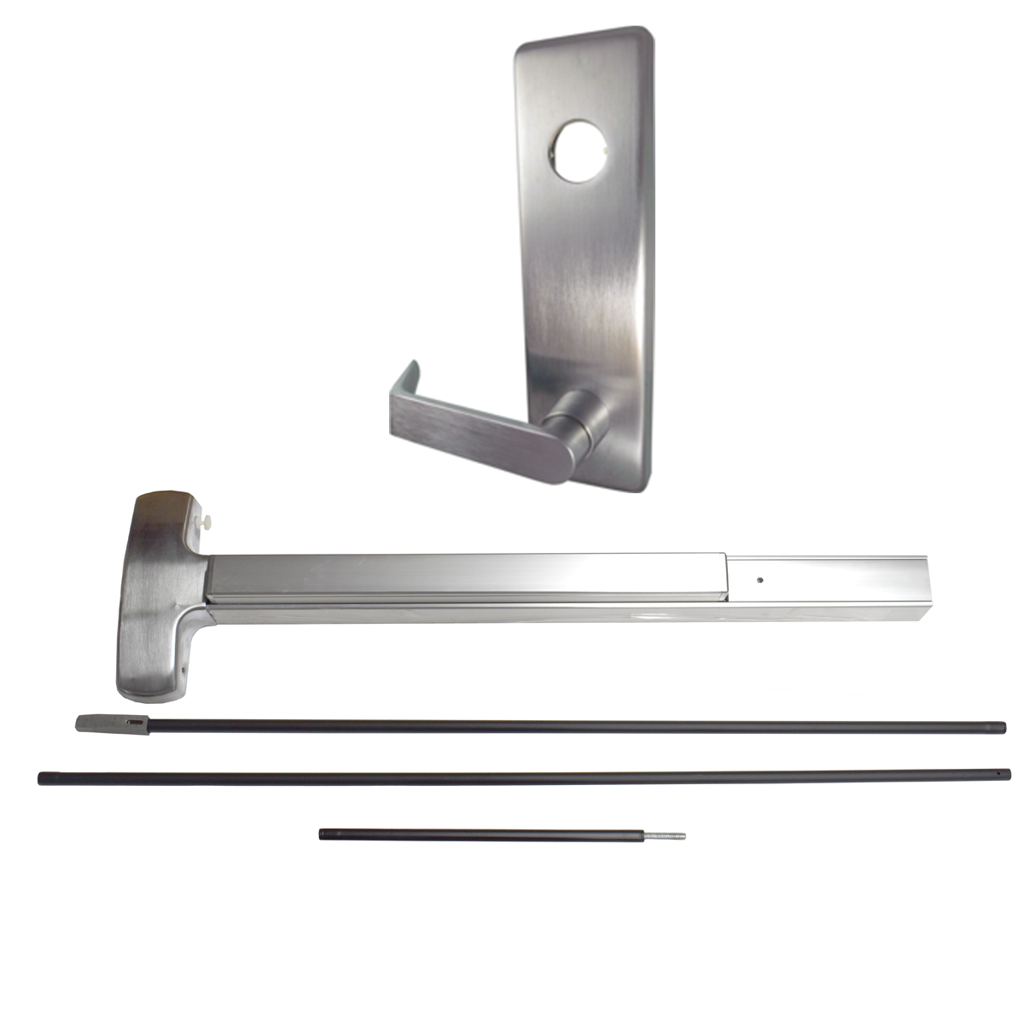

KIT - CVR Concealed Vertical Rod Exit Device, Escutcheon x Dane Lever Trim 510L, 36in x 96in, Hex Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 25-C Series concealed vertical rod device offers great value, clean styling and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 4188 mortised top, 2130 bottom standard, 4155.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt 1⁄2" throw.
• Deadlocking latchbolt: Standard in top latch.
• Latch retention hold: Standard in top latch.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder dogging with standard cam.
• Doors: 1-3⁄4" thick wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum, 2" dogged.
• Stile: 3-1⁄2" minimum (6-1⁄2" minimum on wood doors).
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.
• Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (# 10-24) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• 25-C-LBR: Less bottom rod concealed vertical device.
• Vertical rods: Furnished to length based on 40-1⁄4" horizontal CL to finished floor and a 7’ 0" door. Variations from these standards must be specified when ordering.
• Patented center slide: For ease of adjustment.

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
