Falcon Lock 25C-L-FSE-DAN-US26D-36X96-LHR KIT is an exceptional solution for enhancing security in commercial spaces. This electrified trim features a concealed vertical rod exit device and a sleek Dane lever trim, providing both functionality and aesthetic appeal. With a robust extruded aluminum construction, this device ensures superior strength and impact resistance, making it ideal for high-traffic areas. The Falcon 25-C Series boasts a patented center slide mechanism for easy rod adjustment in the field, allowing for quick modifications without hassle. Its streamlined design eliminates exposed screws or rivets, contributing to a clean and polished look that complements any door style. The device is designed for versatility, accommodating various trims while maintaining compatibility with panic exit and fire exit hardware for both single and double door applications. In terms of specifications, the device features a left-hand reverse configuration and meets ANSI A156.3-2001 Grade 1 standards for reliability. The included hex dogging feature ensures durability, as there are no threaded parts to wear out. Additionally, the electric functions can interface with building security systems, offering enhanced monitoring options. For a dependable exit solution that combines security and style, the Falcon Lock 25C-L-FSE-DAN-US26D-36X96-LHR KIT is an excellent choice.

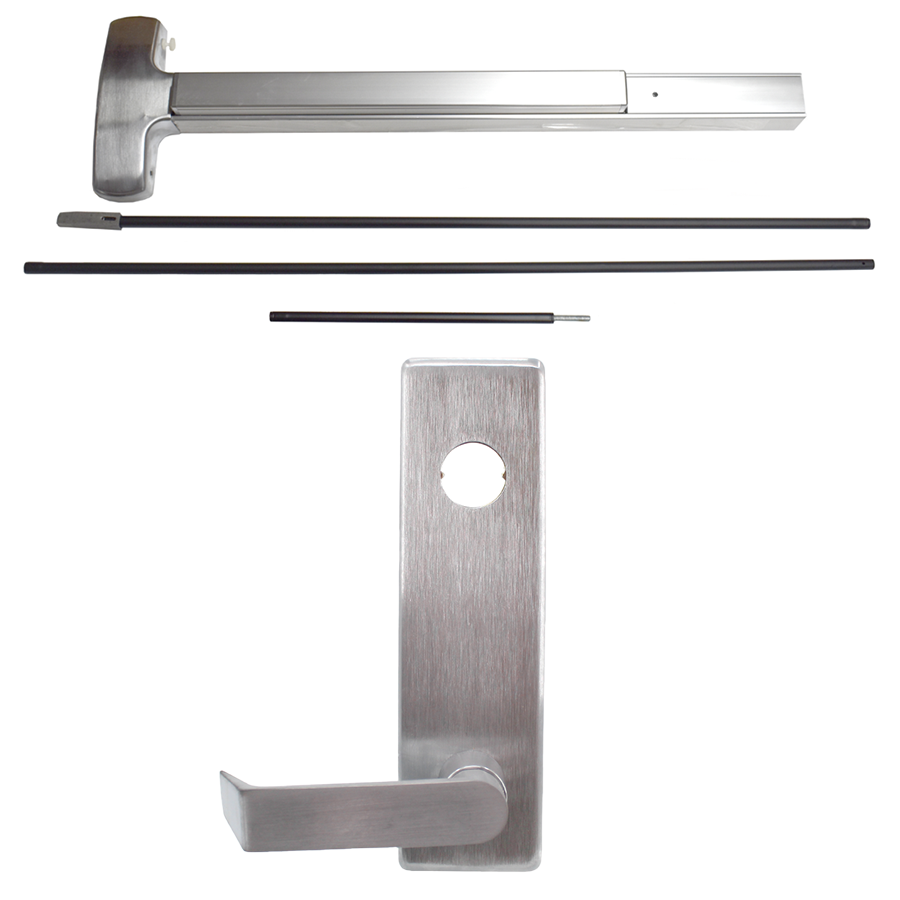

KIT - Electrified Trim, CVR Concealed Vertical Rod Exit Device, Escutcheon x Dane Lever Trim 510L-FSE, 36in x 96in, Hex Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 25-C Series concealed vertical rod device offers great value, clean styling and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 4188 mortised top, 2130 bottom standard, 4155.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt 1⁄2" throw.
• Deadlocking latchbolt: Standard in top latch.
• Latch retention hold: Standard in top latch.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder dogging with standard cam.
• Doors: 1-3⁄4" thick wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum, 2" dogged.
• Stile: 3-1⁄2" minimum (6-1⁄2" minimum on wood doors).
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.
• Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (# 10-24) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• 25-C-LBR: Less bottom rod concealed vertical device.
• Vertical rods: Furnished to length based on 40-1⁄4" horizontal CL to finished floor and a 7’ 0" door. Variations from these standards must be specified when ordering.
• Patented center slide: For ease of adjustment.

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
