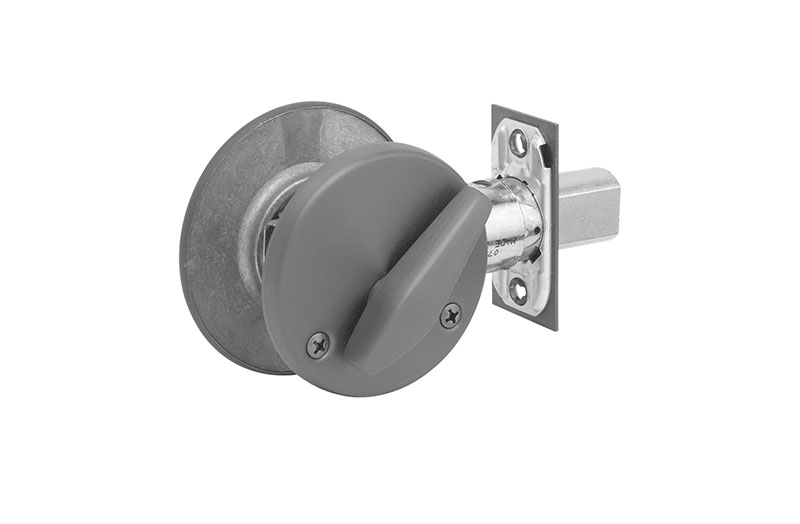

Falcon D271606 D200 Series Occupancy Indicator Deadbolt combines functionality and security for commercial applications. This innovative deadbolt features a thumbturn mechanism paired with an occupancy indicator, ensuring that spaces can be easily marked as occupied or unoccupied. Crafted for durability, the lockset utilizes a zinc base material and comes in a sophisticated satin brass finish that enhances any door aesthetic. Designed with versatility in mind, the adjustable backset accommodates both 2-3/8" and 2-3/4" configurations, making it suitable for doors ranging from 1-3/8" to 2-1/4" thick. The 2-1/8" crossbore size ensures compatibility with standard door preparations, while the square 2-3/4" deadbolt strike remains robust for added security. This model is UL Listed for 3-Hour Fire Doors, providing peace of mind in safety-critical environments. With a limited 10-year warranty, you can trust in its long-lasting performance. The latch faceplate dimension is 1-1/8" x 2-1/4", and the strike dimension measures 1-1/8" x 2-3/4", ensuring a seamless fit. Whether for offices, schools, or healthcare facilities, the Falcon D271606 D200 Series Deadbolt is an excellent choice for enhancing security and convenience.
Attributes
Ansi: A156.5
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Base Material: Brass
Bolt Projection: 1" Deadbolt
Bolt Protection: 1" Deadbolt
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Crossbore Size: 2-1/8" Bore
Door Range: 1-3/8" to 2-1/4"
Finish: Satin Brass
Finish Code: 606
Finish Description: Satin Brass
Finish Family: Matte Brass
Function: D271-Thumbturn x Occupancy Indicator
Grade: Grade 2
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Type: Deadbolt
Manufacturer Function Description: Deadbolt thrown or retracted by turn unit only. Occupancy indicator on outside (reads either in use or vacant with color coding). Bolt automatically deadlocks when fully thrown. Emergency key supplied.
Manufacturer Warranty: Limited 10 Year Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Pack Qty: 1
Series: D200 Series
Std Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Number: Surface Strike
Std Strike Width: 1-1/8"
Strike: Square 2-3/4" Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4"
Strike Number: Surface Strike
Strike Width: 1-1/8"
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Mechanical Commercial Locksets
Ul Listing Type: UL Listed for 3-Hour Fire Door
Unit of Measure: Each
