Falcon Lock EA-25C-L-BE-DAN-US26D-36X96-LHR KIT - CVR Concealed Vertical Rod Exit Alarm Device, Satin Chrome, Grade 1

Falcon Lock EA-25C-L-BE-DAN-US26D-36X96-LHR KIT is a premier exit alarm solution designed to enhance security while ensuring compliance with egress requirements. This kit features a battery-powered exit alarm that activates a 110 dB sound when the touchbar is depressed, alerting users of the exit's usage. The alarm system is easily resettable with a standard 1 1⁄4" mortise cylinder, ensuring convenience without compromising safety. Constructed with a Grade 1 rating, the exit device is UL listed and designed to work seamlessly with various locking mechanisms, including rim, mortise, and concealed vertical rods. The satin chrome finish (US26D) offers durability and aesthetic appeal, making it suitable for any commercial environment. Additional features include an external inhibit for card readers and LED indicators for armed, disarmed, and low battery statuses. The device maintains a long battery life, with the single 9V battery lasting up to six months in standby mode. This model is ideal for those seeking a reliable and effective alarm solution that meets rigorous safety standards while providing exceptional monitoring capabilities. Upgrade your security with the Falcon Lock EA-25C-L-BE-DAN-US26D-36X96-LHR KIT, where safety and functionality intersect.

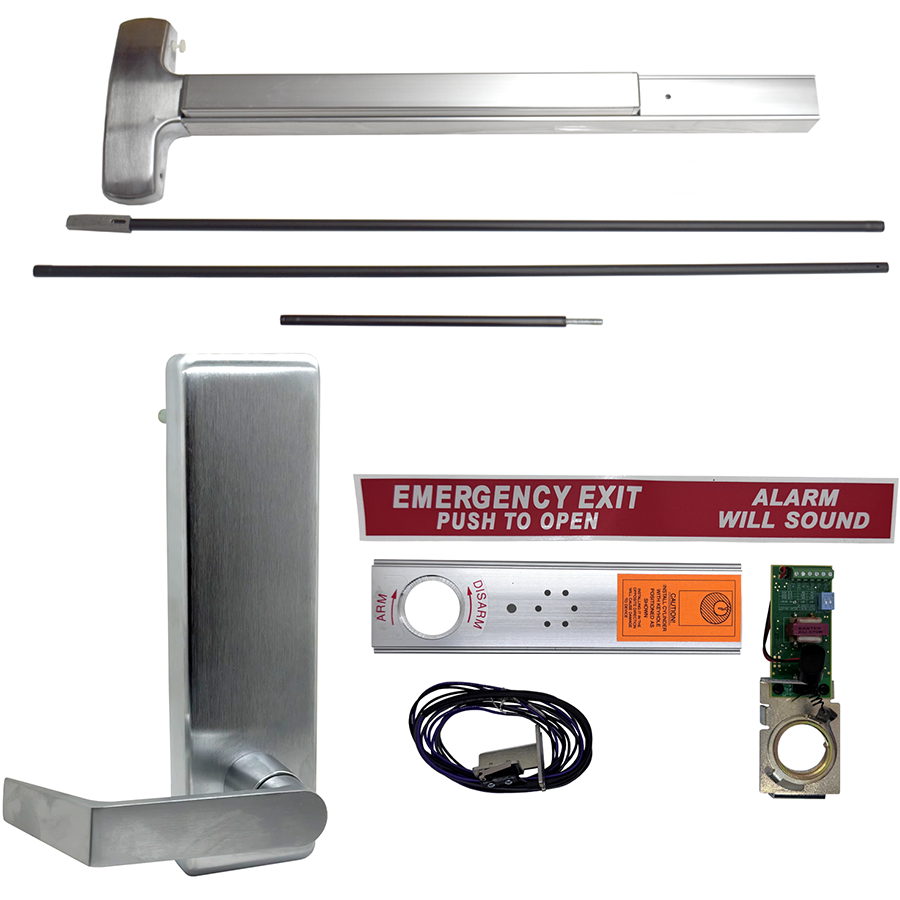

KIT - Exit Alarm, CVR Concealed Vertical Rod Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 36in x 96in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
