Falcon Lock EA-25C-L-NL-DAN-US26D-36X96-LHR Exit Alarm CVR Concealed Vertical Rod Device, Dane Lever Nightlatch Trim 510L-NL

Falcon Lock EA-25C-L-NL-DAN-US26D-36X96-LHR KIT is a robust exit alarm system designed for enhanced security without compromising egress requirements. This device features a battery-powered exit alarm that sounds continuously at 110 dB when the touchbar is pressed, ensuring that unauthorized exit usage is immediately detected. The alarm can only be reset using a standard 1 1⁄4" mortise cylinder, providing an extra layer of security. Crafted for grade 1 performance, the EA-25C is compatible with various door types, including rim, mortise, and concealed vertical rod applications. With an operational standby time of at least six months on a single 9V battery, it balances reliability with convenience. The unit also offers an optional 24 Volt hardwire connection for enhanced functionality. Incorporating LED indicators for armed, disarmed, and low battery status, this exit device promotes easy monitoring. It is UL listed and supports integration with various fail-safe and fail-secure trim options. The satin chrome finish (US26D) adds both style and durability, suitable for high-traffic areas. Ideal for commercial spaces, the Falcon Lock EA-25C-L-NL-DAN-US26D-36X96-LHR KIT provides peace of mind while meeting safety codes.

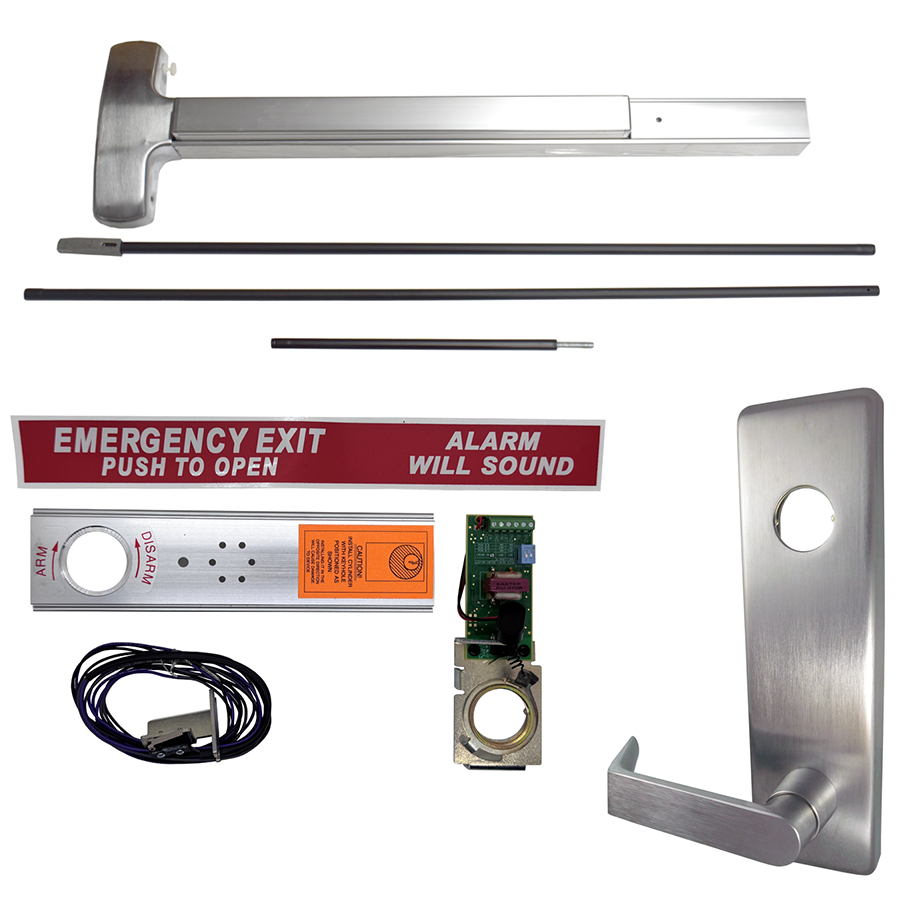

KIT - Exit Alarm, CVR Concealed Vertical Rod Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in x 96in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
