Falcon Lock EA-25C-L-NL-QUA-US26D-36X96-LHR Exit Alarm CVR Concealed Vertical Rod Device w/ Quantum Lever Nightlatch Trim

Falcon Lock EA-25C-L-NL-QUA-US26D-36X96-LHR KIT is a robust exit alarm system designed to enhance security and ensure compliance with safety regulations. This Grade 1 exit device is equipped with a powerful 110 dB alarm that activates when the touchbar is depressed, providing an effective deterrent to unauthorized exit use while still allowing safe egress. The EA feature operates on a single 9V battery, which can last for at least six months in standby mode, or can be hardwired with a 24-volt option. The device comes with an external inhibit for card reader integration and features LED indicators for armed, disarmed, and low battery status. Its versatile design accommodates various door types, including rim, mortise, concealed, and surface vertical rod applications, making it ideal for diverse installations. Finished in sleek satin chrome (US26D), the Falcon Lock EA-25C-L-NL-QUA is not only functional but also aesthetically pleasing. The device’s left-hand reverse configuration ensures seamless integration into your existing security setup. Additionally, it is UL listed and compliant with ANSI standards, reinforcing its reliability and effectiveness in securing exit points. Trust Falcon Lock to deliver unmatched security solutions for your property.

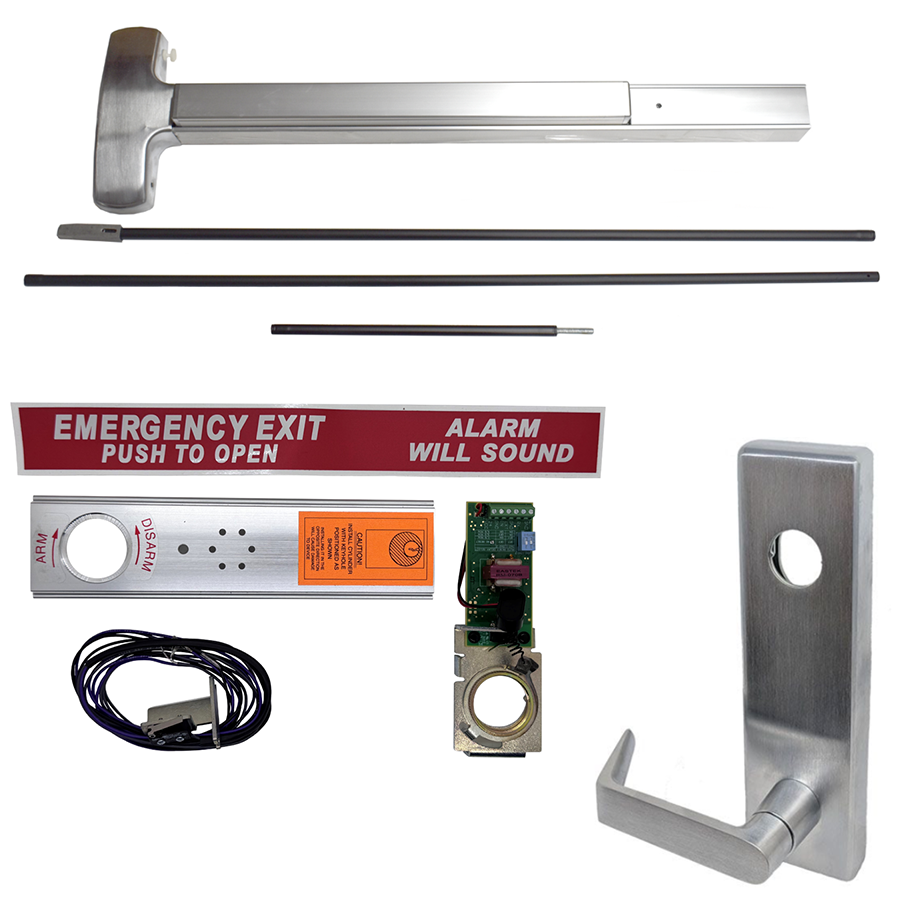

KIT - Exit Alarm, CVR Concealed Vertical Rod Exit Device, Escutcheon x Quantum Lever Nightlatch Trim 510L-NL, 36in x 96in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
