Falcon Lock MA581CP6 QG 626 Storeroom Mortise Lock

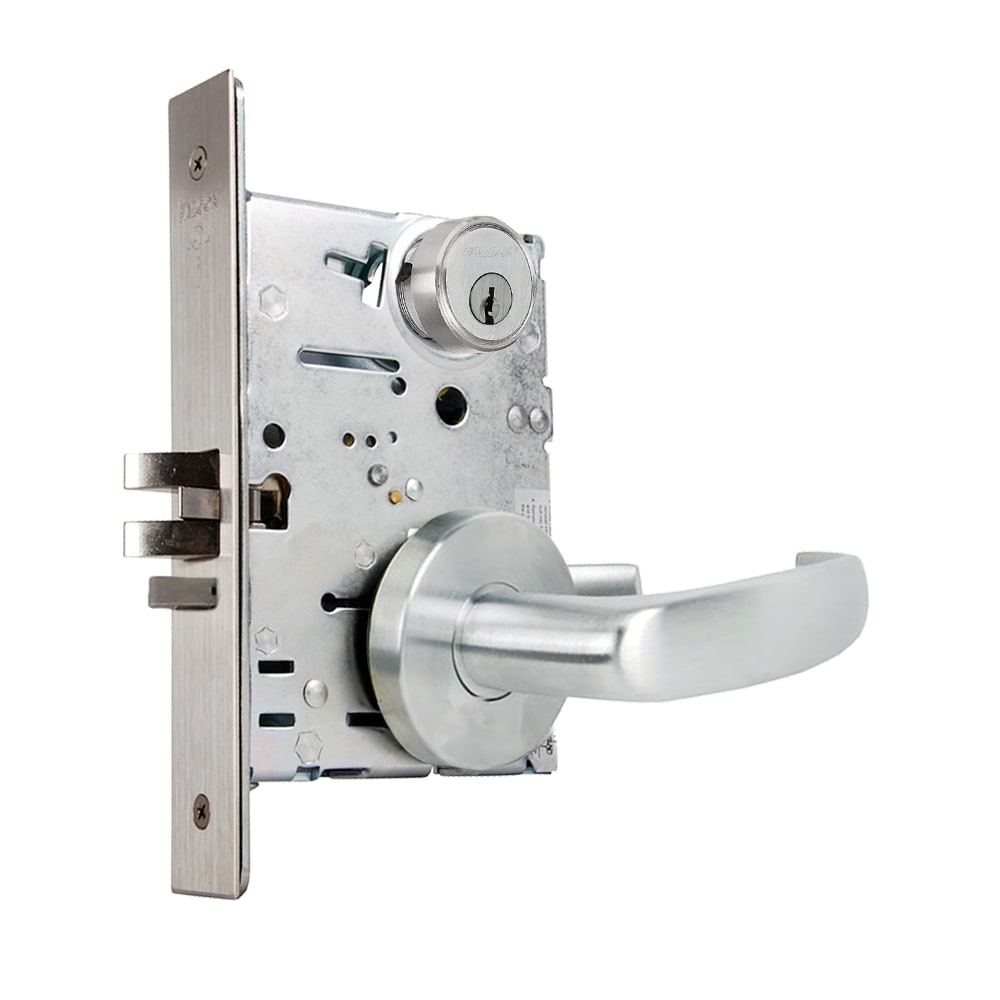

Falcon MA581CP6 QG 626 Storeroom Mortise Lock combines robust security with user-friendly features, making it an ideal solution for commercial applications such as offices, hospitals, and educational institutions. This Grade 1 storeroom mortise lock is designed for high performance and durability, ensuring it can withstand constant use without compromising security. The lock features a 6-pin conventional cylinder and a stylish Quantum lever with a Gala Rose design, all finished in a sleek satin chrome. Its field-reversible handing allows for flexible installation, accommodating standard door thicknesses from 1-3/8" to 2-1/2". The cold-formed steel case is zinc dichromate plated for added resilience, while the hardened steel hubs provide extra strength. With a 3/4" stainless steel latch bolt and a 1" throw deadbolt, this lock offers enhanced protection against tampering. The heavy-duty, through-bolted insert trim ensures proper alignment and stability. Additionally, the MA581 model meets ANSI/BHMA 156.13 standards and has a UL rating for 3-hour fire protection, providing peace of mind in critical environments. Available with two nickel silver keys, this dependable lock is an excellent choice for those prioritizing both security and aesthetics in their building projects.

Storeroom Mortise Lock

Grade 1 Storeroom Mortise Lock, 6-Pin Conventional Cylinder, Quantum Lever, Gala Rose, Satin Chrome Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.
