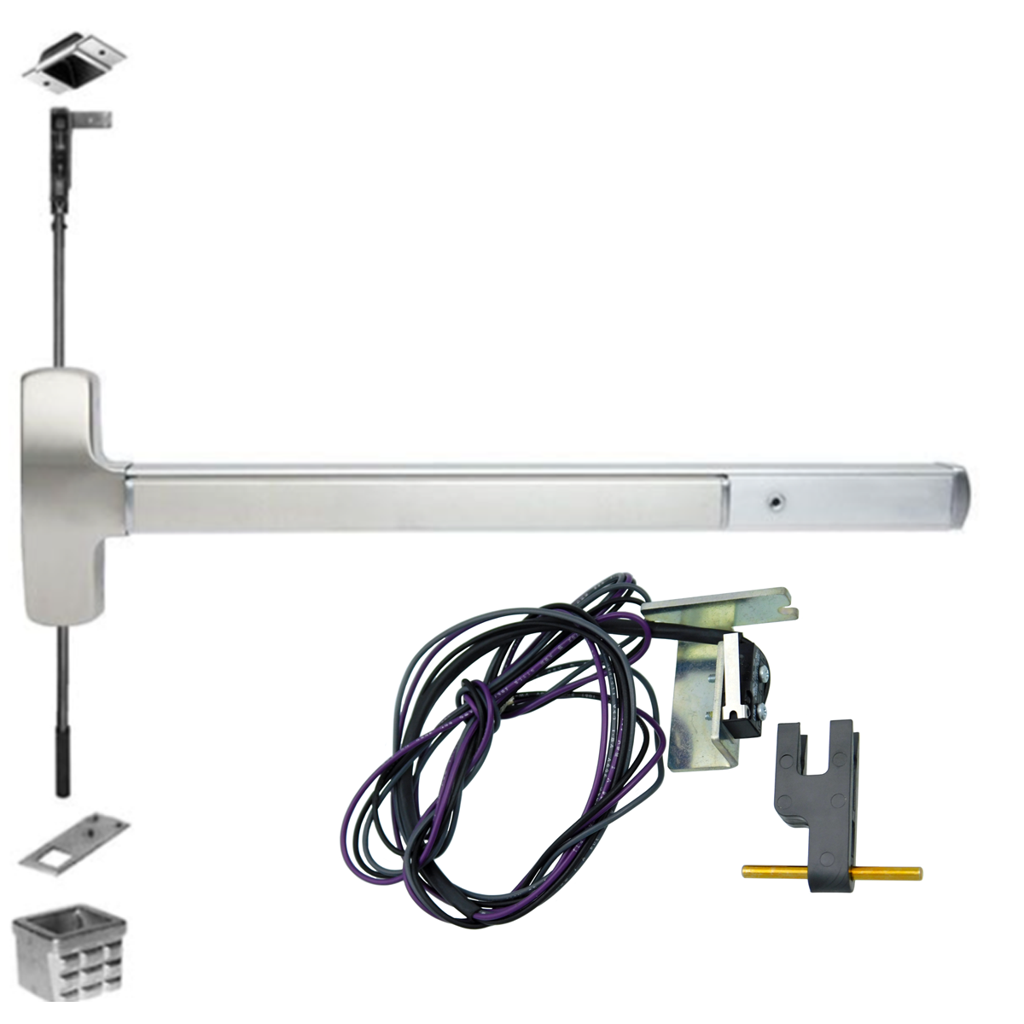

Falcon Lock RX-F25C-EO-US32D-48X96 RX Request to Exit Fire Rated Concealed Vertical Rod Device, 48"x96", UL Grade 1

Falcon Lock RX-F25C-EO-US32D-48X96 KIT is a fire-rated concealed vertical rod exit device designed to enhance the safety and aesthetics of your building's exits. This exit-only device features a sleek, streamlined design with no exposed screws or rivets, making it ideal for both single and double door applications. Its extruded aluminum construction ensures superior strength and resistance to impact, while the stainless steel push pad cover offers a scratch-resistant surface. The RX-F25C model incorporates a patented center slide mechanism for easy in-field adjustments, complemented by two-point latching for maximum security. With a 3/4" stainless steel latchbolt and a deadlocking feature, this exit device meets Grade 1 standards and is UL listed for fire safety, suitable for doors with a fire rating of up to 90 minutes. Additionally, this device is compatible with various trims, allowing for versatile installation options. It is designed for doors up to 48 inches wide and 96 inches high, with a narrow stile center case that fits perfectly with storefront applications. The flush-end caps prevent damage in high-traffic environments, ensuring durability. Choose the Falcon Lock RX-F25C-EO-US32D-48X96 for a reliable, stylish, and secure exit solution that meets modern safety standards.

KIT - RX Request to Exit, Fire Rated CVR Concealed Vertical Rod Exit Device, Exit Only, 48in x 96in, Less Dogging, UL, Grade 1, 630/US32D Satin Stainless Steel

The F-25-C Series device lets you combine the safety of a fire-rated device with the clean aesthetics that come with a concealed vertical rod installation. In-field adjustment is simple thanks to our patented center slide mechanism. Two-point latching ensures optimal security at the door.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• UL: "A" label (3 hr.); 4’ 0" x 10’ 0" single doors; 8’ 0" x 10’ 0" pair of doors (F-25-M x F-25-V or F-25-C).
• Strikes: 4188 mortised top, 2130 bottom standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: See Chart Below.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum.
• Stile: 4" minimum.
• Mounting height: 40-1⁄4" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. All machine screws (AMS) standard.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device specify 6 - 425 (# 10-24) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• 25-C-LBR: Less bottom rod, auxiliary fire pin required per pair.
• Vertical rods: Furnished to length based on 40-1⁄4" horizontal CL to finished floor and a 7’ 0" door. Variations from these standards must be specified when ordering.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625- Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
