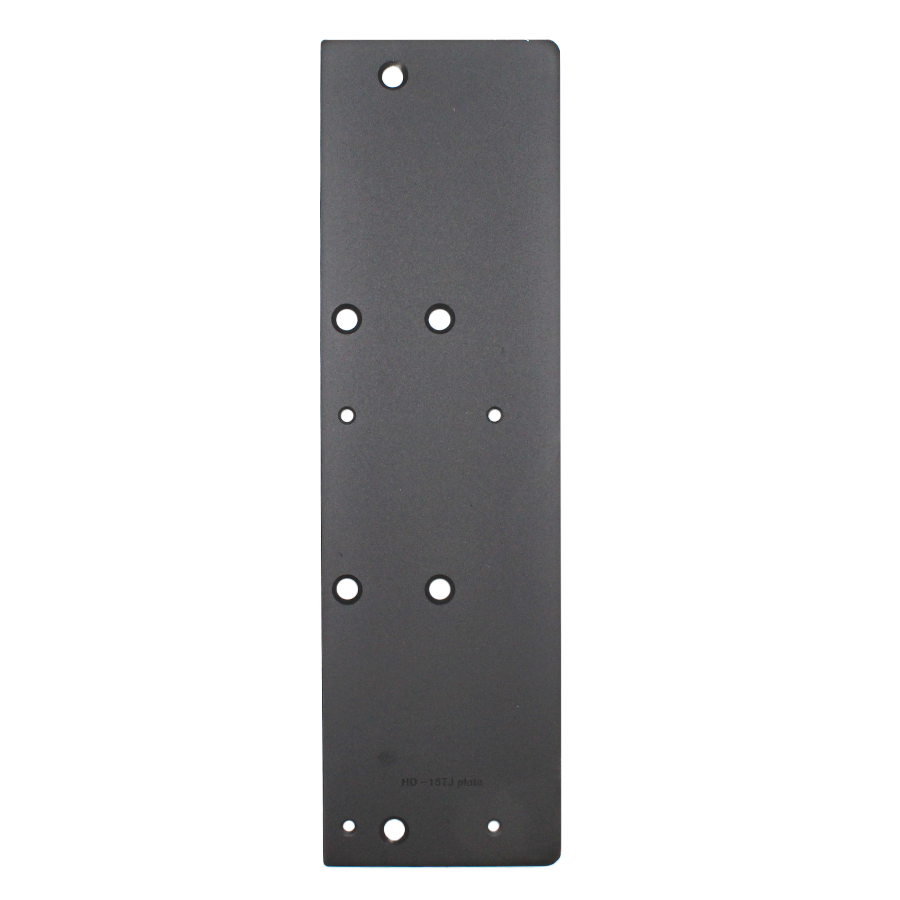

Falcon Lock SC70A-18 622 Narrow Frame Back Plate for SC70A Series Closer, Black Finish

Falcon Lock SC70A-18 622 Narrow Frame Back Plate is an essential component designed for use with the SC70A Series door closers. Engineered for reliability and ease of maintenance, this back plate is perfect for high-traffic environments such as retail shops, restaurants, and small offices. Featuring a matte black finish, it seamlessly blends into various architectural styles while providing robust performance. This back plate is specifically crafted to accommodate hinge side and top jamb mounting where the top rail is less than 3-7⁄8 inches. Its versatility extends to compatibility with all SC70A Series closers, ensuring a perfect fit and optimal functionality. The SC70A Series closers themselves are ANSI grade 1 and ADA compliant, offering fully adjustable sizes from 1-6 and separate adjustments for general speed, latch speed, and backcheck. Installation is straightforward, aided by the universal screw pack that accommodates aluminum, hollow metal, and wood doors. The SC70A-18 is UL listed for use in fire-rated assemblies, meeting stringent safety standards. With a ten-year warranty, you can trust that this durable back plate will provide lasting support and performance in any application. Upgrade your door control system with the Falcon Lock SC70A-18 622 Narrow Frame Back Plate for enhanced security and ease of use.

Narrow Frame Back Plate for use with SC70A Series Closer, 622/SPBLK Painted Black

The SC70A Series heavy duty closers are built for applications that demand reliable door control and easy maintenance. The SC70A Series closers are ANSI grade 1, ADA compliant and deliver tough performance. Choose the SC70A for interior or exterior doors in retail shops, restaurants, small offices and many other high traffic applications.

Features:

• Fully adjustable sizes 1-6.
• Separate adjustable general speed, latch speed and backcheck.
• Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.
• Non-handed for left or right swinging doors.
• 1-1⁄2" diameter heat treated steel piston.
• Double heat-treated pinion.
• Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws.
• Staked valves.
• Meets ANSI A117.1.
• Listed ANSI/BHMA A156.4, grade 1.
• UL listed and compliant to UL10C and UBC 7-2 (1997).
• Fast and easy installation.
• 10-year warranty.

Specifications:

• Cover is UL approved for use in fire rated assemblies.
• Compliant with the UL 10C and UBC 7-2 (1997) fire test.
• Certified ANSI/BHMA A156.4 Grade 1.
• The SC71A meets the American Disabilities Act (ADA) and ANSI A117.1.

Arm Types:

• SC70A-3077PA Regular Arm: Non-handed arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• SC70A-3049PA Hold-open Arm: Optional, non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• SC70A-3077HD Heavy Duty Regular Arm: Optional, non-handed, stamped, heavy duty, parallel arm for use in high-traffic applications.
• SC70A-3077DS Dead Stop Arm: Optional, non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• SC70A-3049DS Dead Stop Hold-Open Arm: Optional, non-handed, stamped, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold-open function.
• SC70A-3077SS Spring-n-Stop Arm: Optional, non-handed, extra heavy-duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• SC70A-3049SS Spring-n-Stop Hold-Open Arm: Optional, non-handed, extra heavy-duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold-open function.
• SC70A-3077FA Forged Arm: Optional, non-handed, extra heavy-duty arm with parallel arm bracket. Includes a forged steel main arm and forearm for maximum durability in high traffic and/or abusive applications. Parallel Arm (PA) bracket is a permanent feature, installation on "push" side of the door in a parallel arm type configuration is required.
• SC70A-3049FA Forged Arm with Hold Open: Optional, left or right handed, extra heavy-duty arm with parallel arm bracket that incorporates a hold open feature. Includes a forged steel main arm and forearm formaximum durability in high traffic and/or abusive applications. Parallel Arm (PA) bracket is a permanent feature, installation on "push" side of the door in a parallel arm type configuration is required.

Installation Accessories:

• SC70A-30 Soffit Shoe Support: Provides anchorage for fifth screw used with soffit shoe, where reveal is less than 3-1⁄16" (78mm).
• SC70A-61 Blade Stop Spacer: Required to lower parallel arm shoe to clear 1⁄2" (13mm) blade stop.
• SC70A-62A Auxiliary Shoe: Requires a top rail of 7" (178mm). Optional shoe replaces PA shoe for parallel arm mounting of regular arm with overhead holder/stop.
• SC70A-72 Cover: Standard, non-handed, full plastic cover encloses the closer body.
• SC70A-18 Plate: Required for hinge side mount where top rail is less than 3-7⁄8" (98mm). Required for top jamb mounting where head frame is less than 3-7⁄8" (98mm).
• SC70A-18PA Plate: Required for parallel arm mounting where top rail is less than 6" (152 mm), measured from the stop. Plate requires 1-3⁄4" (44mm) minimum top rail measured from stop.

Finishes:

• 622 - Matte Black
• 689 - Aluminum
• 695 - Dark Bronze
• 696 - Brass
