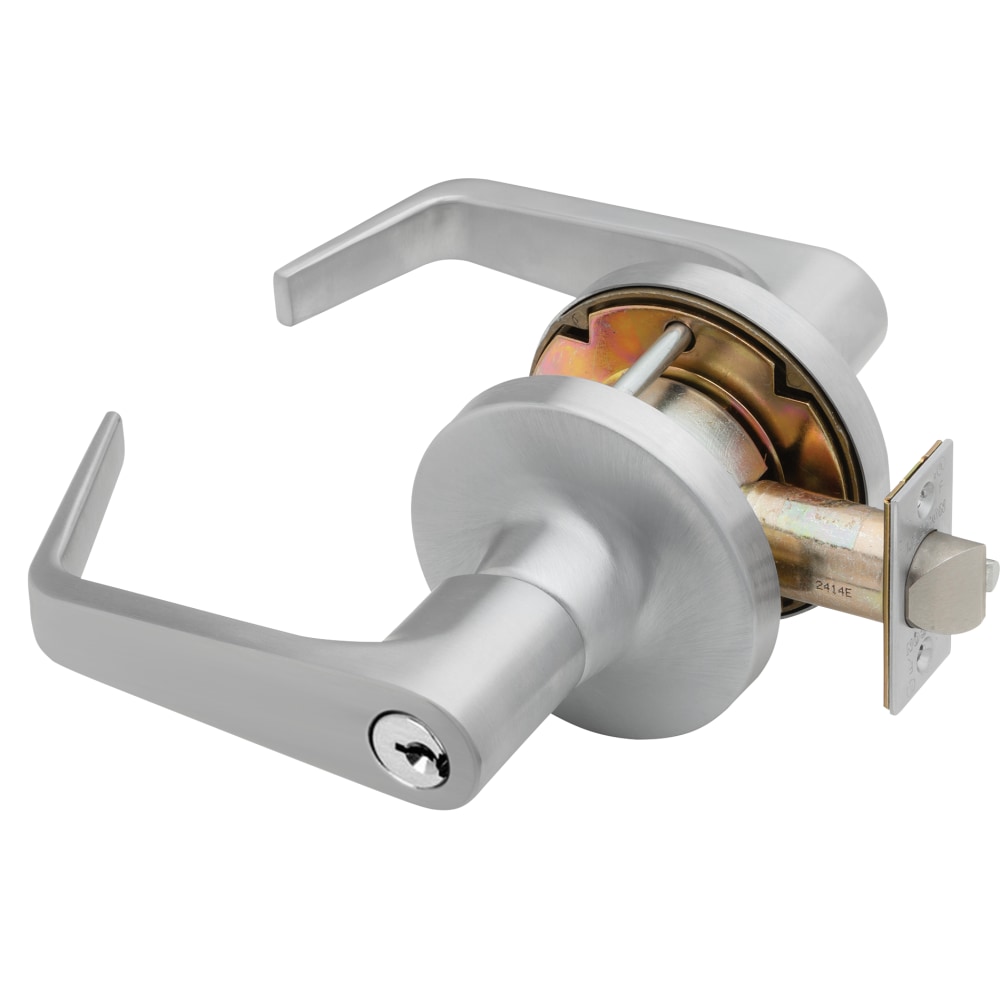

Falcon Lock T581CP6D D 626 KD Grade 1 Storeroom Lock offers a robust solution for high-traffic areas requiring reliable security. As a Grade 1 cylindrical lock, it is engineered to withstand heavy use and abuse, making it ideal for institutional applications. The lock features a key-in-lever cylinder and is designed with a Dane lever and a standard rose, finished in a sleek satin chrome that complements any decor. Non-handed and adaptable, the T581CP6D allows for easy re-keying, accommodating any manufacturer's cylinder for versatile retrofitting. Built with a compression spring, this lock exceeds ANSI/BHMA Grade 1 testing, ensuring durability over time. It fits door thicknesses of 1-3/4" to 2-1/4" and comes standard with a 2-3/4" backset, while a 2-3/8" option is also available. The solid construction includes brass and cold-formed steel components, zinc plating for rust resistance, and stainless steel springs, ensuring longevity. With a UL-listed latch and ANSI strikes, this lock also meets fire safety ratings for up to three hours. Backed by a 10-year limited warranty, the Falcon T581CP6D is a dependable choice for commercial environments where security and durability are paramount.

Grade 1 Storeroom Lock

Grade 1 Storeroom Cylindrical Lock, Key in Lever Cylinder, Dane Lever, Standard Rose, Satin Chrome Finish, Non-Handed

The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The lock can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying, so retrofitting a current building is simple. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

Can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying.

• Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
• Backset: 2-3/4” standard. 2-3/8” also available. Link (A22161-005-10) available for 5” backset.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
• Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
• Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
• Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• Electrified Functions: Available in 24 VDC .185 AMP.
