Falcon Lock TP70T A 626 MA Series Trim Package

Falcon Lock TP70T A 626 MA Series Trim Package offers a robust Grade 1 solution ideal for various commercial applications, including offices, hospitals, and educational facilities. Designed for use with MA451/531/541/571/621/641 models, this trim package features the elegant Avalon Lever and is finished in sleek Satin Chrome, ensuring both functionality and style. Built to withstand constant use, the MA Series lock is renowned for its durability and reliability. The cold-formed steel case is zinc dichromate plated, providing exceptional strength and corrosion resistance. The trim package accommodates standard door thicknesses ranging from 1-3/8" to 2-1/2" and features a 2-3/4" backset. Security is paramount with a two-piece stainless steel latch bolt and a 1" throw dead bolt, reinforced by heavy-gauge steel faceplates. The bind-resistant trim is secured with heavy-duty through-bolted inserts, ensuring proper alignment and strength. Additionally, the interchangeable core allows for easy re-keying and compatibility with SFIC products from other manufacturers. With a fire rating of up to 3 hours and UL listing, the Falcon Lock TP70T A ensures safety and peace of mind. Elevate your security solutions with this dependable and stylish trim package.

MA Series Trim Package

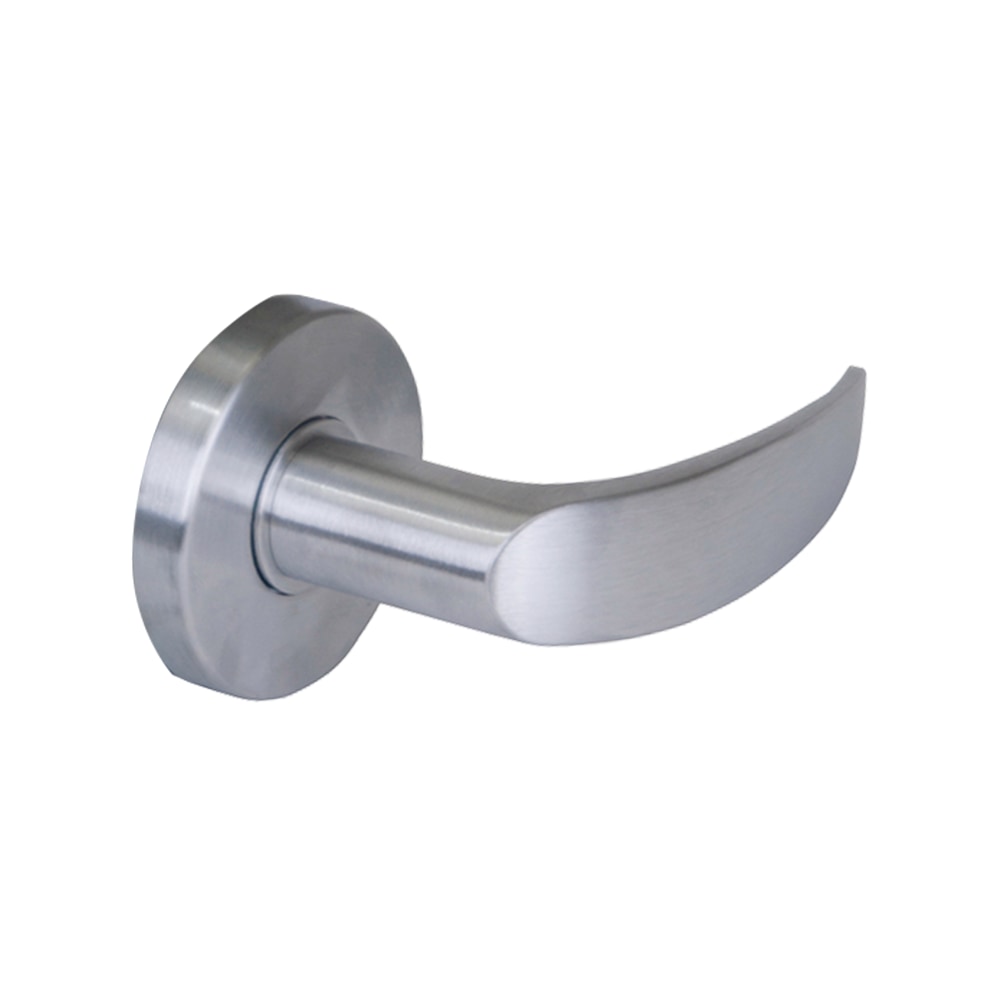

Grade 1 Trim Pack For Use With MA451/531/541/571/621/641, Avalon Lever, Gala Rose, Satin Chrome Finish

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.
