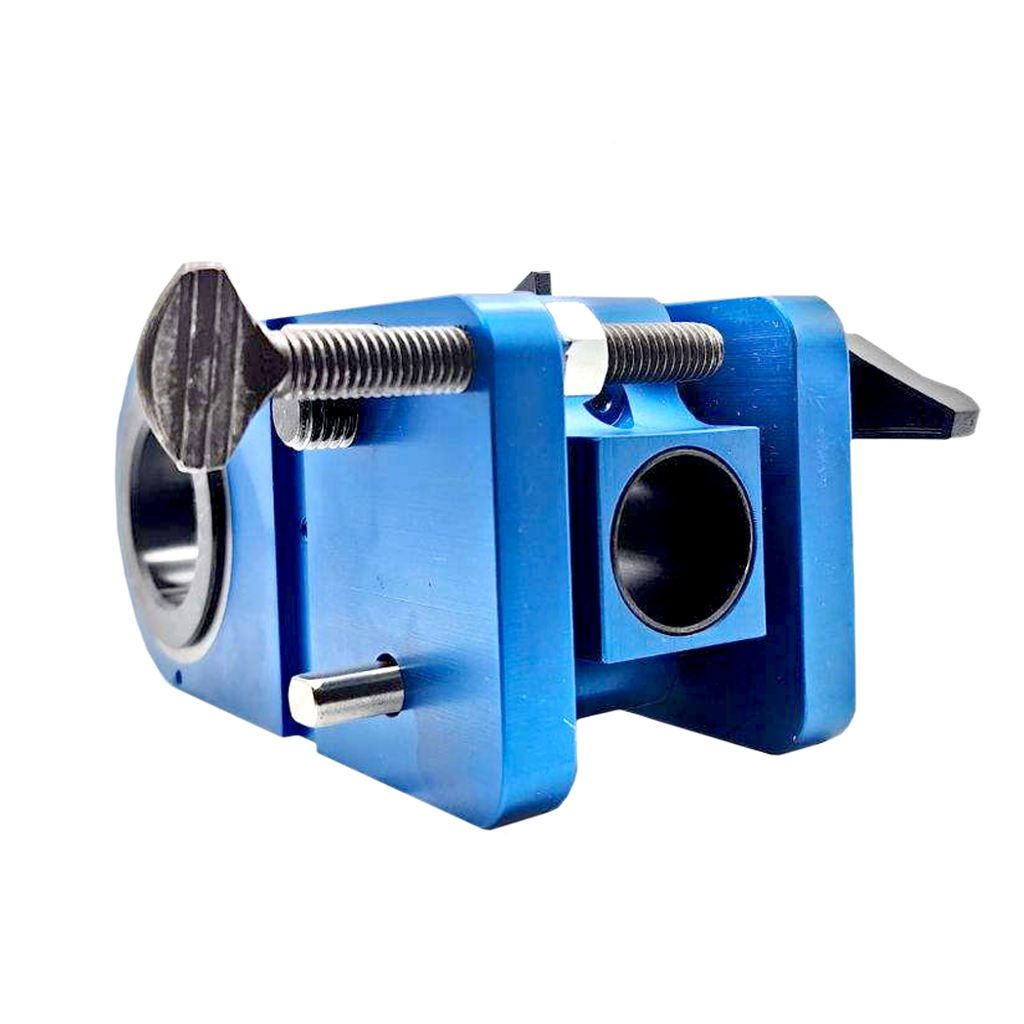

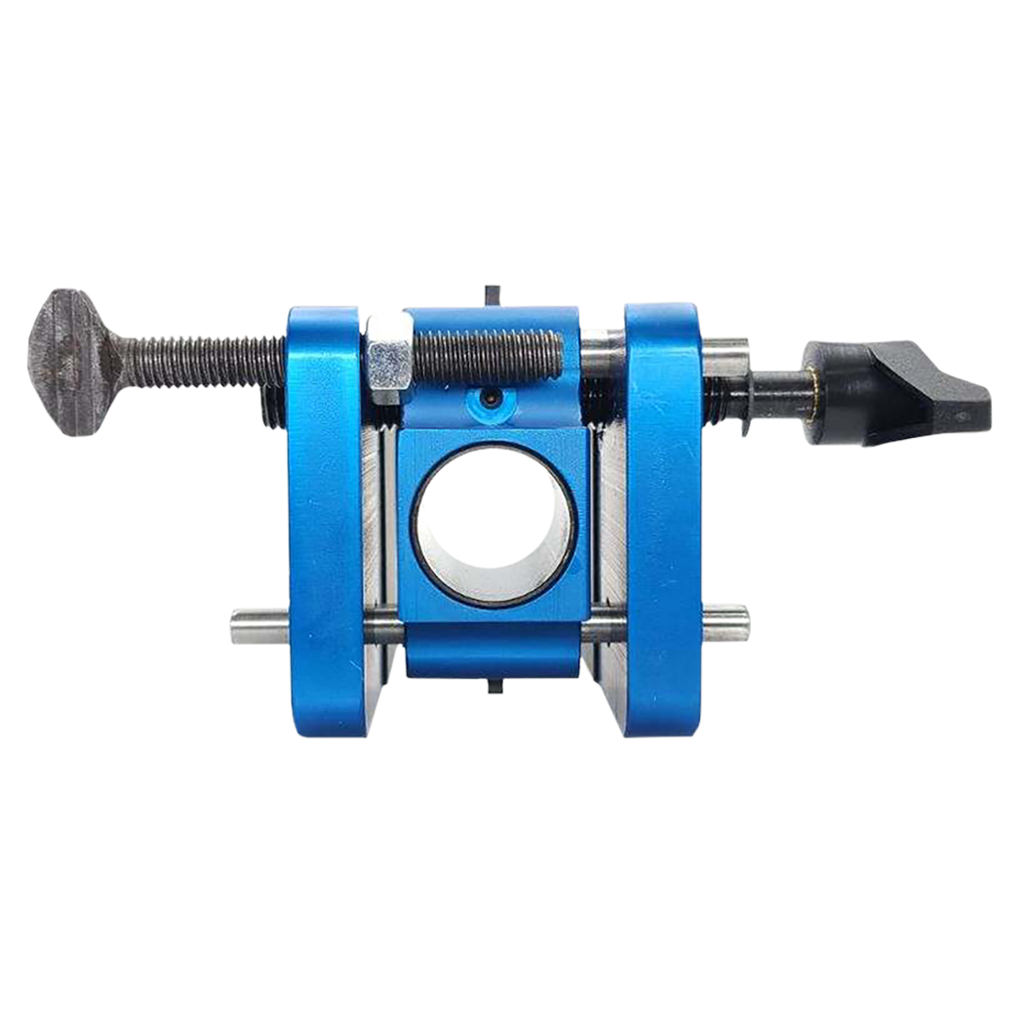

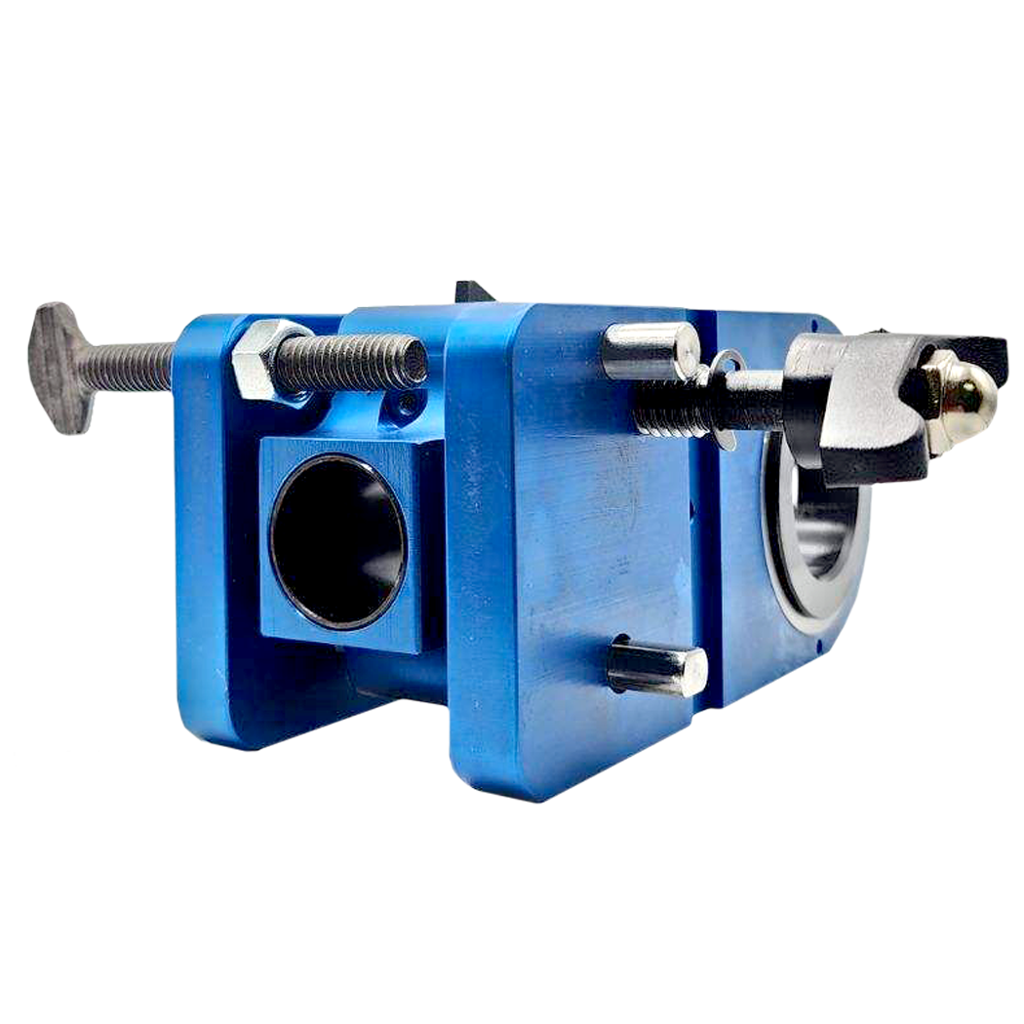

Framon BULL Bullseye Lock Installation Jig for 1-1/2in or 2-1/8in Cross Bore

Framon BULL Bullseye Cylindrical Lock Installation Jig is an essential tool for locksmiths and installers looking to simplify the process of drilling wood or metal doors. Designed to accommodate a wide range of door specifications, this innovative jig features two cross bore options-1-1/2" or 2-1/8"-and allows for quick adjustments between 2-3/8" and 2-3/4" backsets thanks to its built-in tabs. The Bullseye Installation Jig is self-contained, requiring only a 3/32" Allen wrench for changing bore sizes, which enhances convenience during installation. It includes strategically placed 1/8" pilot holes at the 12 and 6 o’clock positions, perfect for levers that utilize 2-3/4" spacing for through bolts. For those working with interconnected locks, optional interconnecting straps are available to ensure proper spacing for a second Bullseye jig. Versatile enough to work with door thicknesses ranging from 1-1/4" to 2-3/4", the Framon Bullseye Installation Jig is a must-have for any professional locksmith or knowledgeable homeowner. Its robust design and thoughtful features streamline installation, making it a reliable choice for securing any property.

Bullseye Cylindrical Lock Installation Jig, 1-1/2in or 2-1/8in Cross Bore, 2-3/8in or 2-3/4in Backset, Door Thickness 1-1/4in to 2-3/4in

Framon is proud to introduce our latest product, the Bullseye Installation Jig. The new installation jig will assist installers with drilling wood or metal doors. The tool is completely self-contained besides a 3/32" allen wrench to change bore sizes.

Features:

• 1-1/2" or 2-1/8" Cross Bore
• 2-3/8" or 2-3/4" Backset (built in tabs – change from one to the other instantly!)
• 1/8" pilot holes at 12 & 6 o’clock positions for levers using 2-3/4" spacing for through bolts
• Optional interconnecting straps to set up proper spacing for a second Bullseye for interconnected locks
• Works with door thicknesses from 1-1/4" to 2-3/4"
