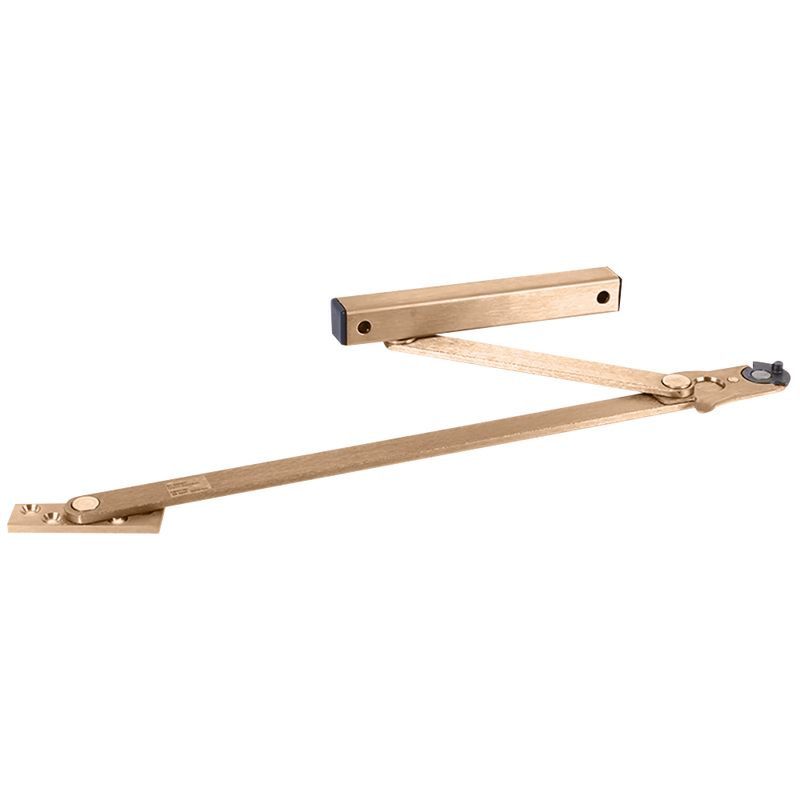

Glynn-Johnson 814S-US10 Surface Overhead Stop

Glynn Johnson 814S-US10 Surface Overhead Stop is a heavy-duty solution designed for effective door control. This durable overhead stop features a size 4 jointed-arm mechanism that ensures optimal performance, making it an ideal choice for both commercial and residential applications. The satin bronze clear coated finish adds an elegant touch while providing reliability in demanding environments. With its reversible design, this stop accommodates single-acting doors effortlessly. The installation process is simplified due to the shock absorber bracket, which is surface mounted with sex bolts, and the jamb bracket that requires minimal preparation on the door frame. This means less hassle and more time saved during installation. The Glynn Johnson 814S is suitable for door sizes ranging from 33 to 39 inches with hinges or offset pivots, and up to 45 inches for center hung pivots. Although it does not feature a hold open function, its robust construction ensures long-lasting performance. Whether you’re a building professional or a knowledgeable homeowner, the 814S-US10 is a reliable choice for enhancing door safety and functionality. Trust Glynn Johnson's 81 Series for quality and performance you can count on.

Surface Overhead Stop

Heavy Duty Surface Overhead Stop Only, Size 4, Satin Bronze Clear Coated Finish, Non-Handed

Glynn-Johnson 81 series holders and stops provide rugged, heavy-duty door control. The jointed-arm design provides the most effective stop mechanism available. The shock absorber bracket is surface mounted, usually with sex bolts. The jamb bracket is mounted to the stop of the frame, so a minimum of door and frame preparation is required.

The jointed-arm design provides the most effective stop mechanism available.

• Reversible
• Single-acting doors
• Interior/exterior applications
• Durable
• Easy to install

Resources

• 2023 Glynn Johnson Price Book (effective 2.25.2023)
• 81 Series Surface Overhead Holders and Stops Cut Sheet
• Overhead Door Holders/Stops
• Von Duprin Finishes Chart
