Glynn Johnson 904S-US3 Surface Overhead Stop is engineered for heavy-duty applications, offering a robust solution for both commercial and residential environments. Designed with a polished brass finish, this surface-mounted overhead stop ensures durability and an elegant aesthetic. Its non-handed design makes installation straightforward, as it is compatible with a variety of door types, including those with conventional butt-type hinges or specialty hinges. The 904S features a versatile mounting system with templates allowing for hold-open/stop angles ranging from 85 to 110 degrees, accommodating diverse needs. With a size 4 closer, it suits doors measuring between 33-1/16" to 39" for hinges/offset pivots and 39-1/16" to 45" for center hung pivots. The unit is constructed to enhance compatibility with most surface-applied door closers, streamlining the installation process while improving overall performance. Weighing only 5 lbs. and measuring 26" in length and 2" in both height and width, the Glynn Johnson 904S is not only easy to install but also offers improved corrosion resistance, making it ideal for both interior and exterior applications. Function conversion kits are available, allowing for further customization and adaptability to meet specific project requirements.
Surface Overhead Stop

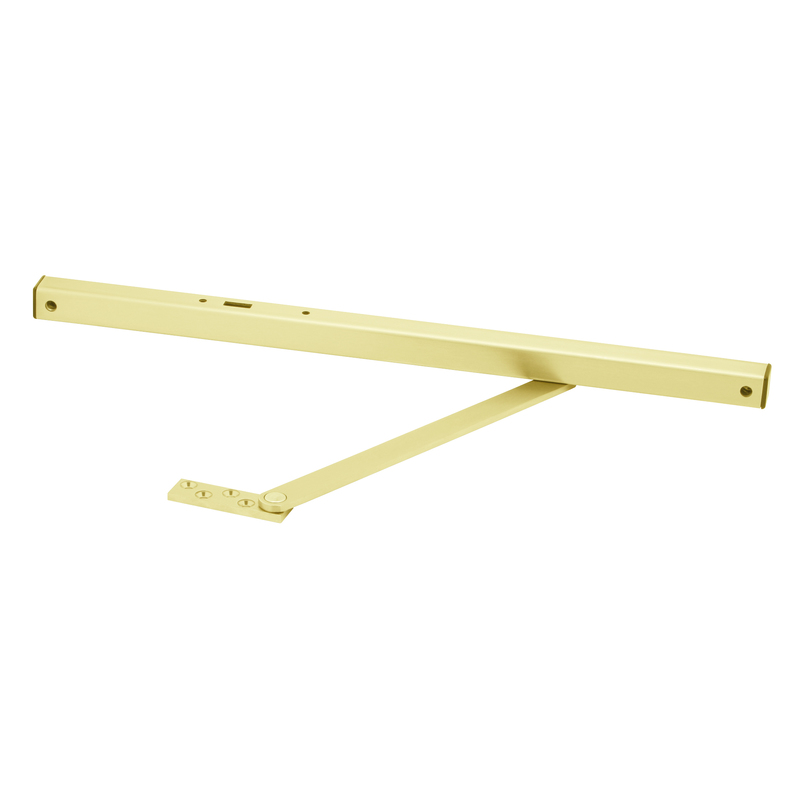

Heavy Duty Surface Overhead Stop Only, Size 4, Bright Brass Finish, Non-Handed
Glynn-Johnson 90 series holders and stops are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with sex bolts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation. These versatile units can be used in conjunction with most surface-applied door closers. The provided templates allow for variable mounting positions, ranging from 85 Deg. to 110 Deg. Hold-Open/Stop angle. These templates are designed for installation in almost all types of doors, including doors with conventional butt-type hinges or specialty hinges.
The most rugged models available for heavy-duty applications.
The 90 Series is a robust hold open and stop overhead designed for heavy duty applications.
Closer Size: 4
Commercial Residential: Commercial
Door Size: 33 to 1/16" to 39" (Hinges/Offset Pivots), 39 to 1/16" to 45" (Center Hung Pivots)
Finish: 605/US3
Finish Family: Polished Brass
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Pack Qty: 1
Product Height: 2"
Product Length: 26"
Product Width: 2"
Series: 90 Series Surface Overhead Holders and Stops
Ship Weight: 5 lbs.
Subtype: Overhead Holders and Stops
Type: Door Closers and Operators
Unit of Measure: Each
