Hafele 001.89.505 Drilling and Insertion Machine, Futura 250, is engineered for precision and efficiency in Rafix drilling applications. This robust machine operates on a single-phase 110V/60Hz power supply, delivering a powerful performance with a 1.5 horsepower rating. Designed specifically for vertical drilling and insertion of hinges and connectors, it offers reliable vertical line boring capabilities. The Futura 250 is equipped with a pneumatic drilling unit that features an intuitive push-button control, allowing for seamless operation. Included in the package are essential accessories such as a 600 mm ruler, two tilt stops with clamp levers, and a spacious worktop measuring 600 x 400 mm. The machine also comes with two pneumatic hold-down clamps, ensuring stability and precision during the drilling process. The locking pin for fence depth adjustment with positive stops enhances accuracy, while the included boring bits (2 - 8 mm LH and 1 - 35 mm RH) cater to various project needs. With a required air pressure of 90 psi, this machine is designed to streamline your workflow, making it an indispensable tool for professionals in the furniture fitting industry. Note that additional accessories must be ordered separately to maximize the machine's capabilities.

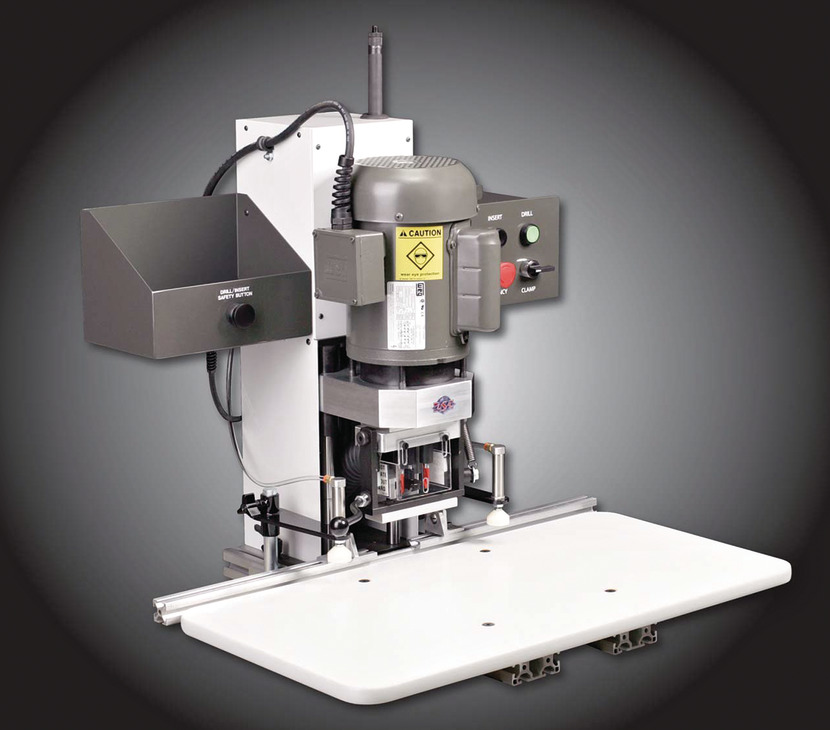

Drilling and Insertion Machine, Futura 250
1 - phase 110V/60Hz, 20 amps, for Rafix drilling
Order accessories separately.
Area of application: for Rafix drilling
Supplied with: Pneumatic drilling unit with push button control Ruler 600 mm (23 5/8") 2 Tilt stops with clamp lever Worktop 600 x 400 mm (23 5/8" x 15 3/4") 2 pneumatic hold-down clamps Locking pin for fence depth adjustment with positive stops Hinges - 22.5 mm Line-boring - 37 mm 2 - 8 mm LH & 1 35 mm RH boring bits
Version: 1 - phase 110V/60Hz
