Hafele 030.10.585 Hex Head Steel Screw-In Sleeve

Hafele 030.10.585 Screw-in Sleeve, Steel with Hex Head offers a robust solution for various fastening needs in furniture and construction projects. Designed with an M8 internal thread and a length of 17 mm, this screw-in sleeve is constructed from durable steel, ensuring long-lasting performance. The part features a yellow chromatized finish, which not only enhances its appearance but also provides corrosion resistance for added durability. The recommended drill hole diameter is 10 mm, making it suitable for use in chipboard, while the diameter may vary when used with hardwood materials. With an external thread diameter of 12.50 mm, this screw-in sleeve is versatile enough to accommodate a range of applications. The hexagon socket drive (SW8) allows for easy installation and secure fastening. Additional technical specifications include internal threads compatible with M4, M6, M8, and M10 sizes, and external thread core diameters of 7.5 mm to 15.3 mm, making it a highly adaptable choice for various projects. Whether you're a building professional or a knowledgeable homeowner, the Hafele 030.10.585 Screw-in Sleeve is a reliable option for achieving secure connections in your assemblies.

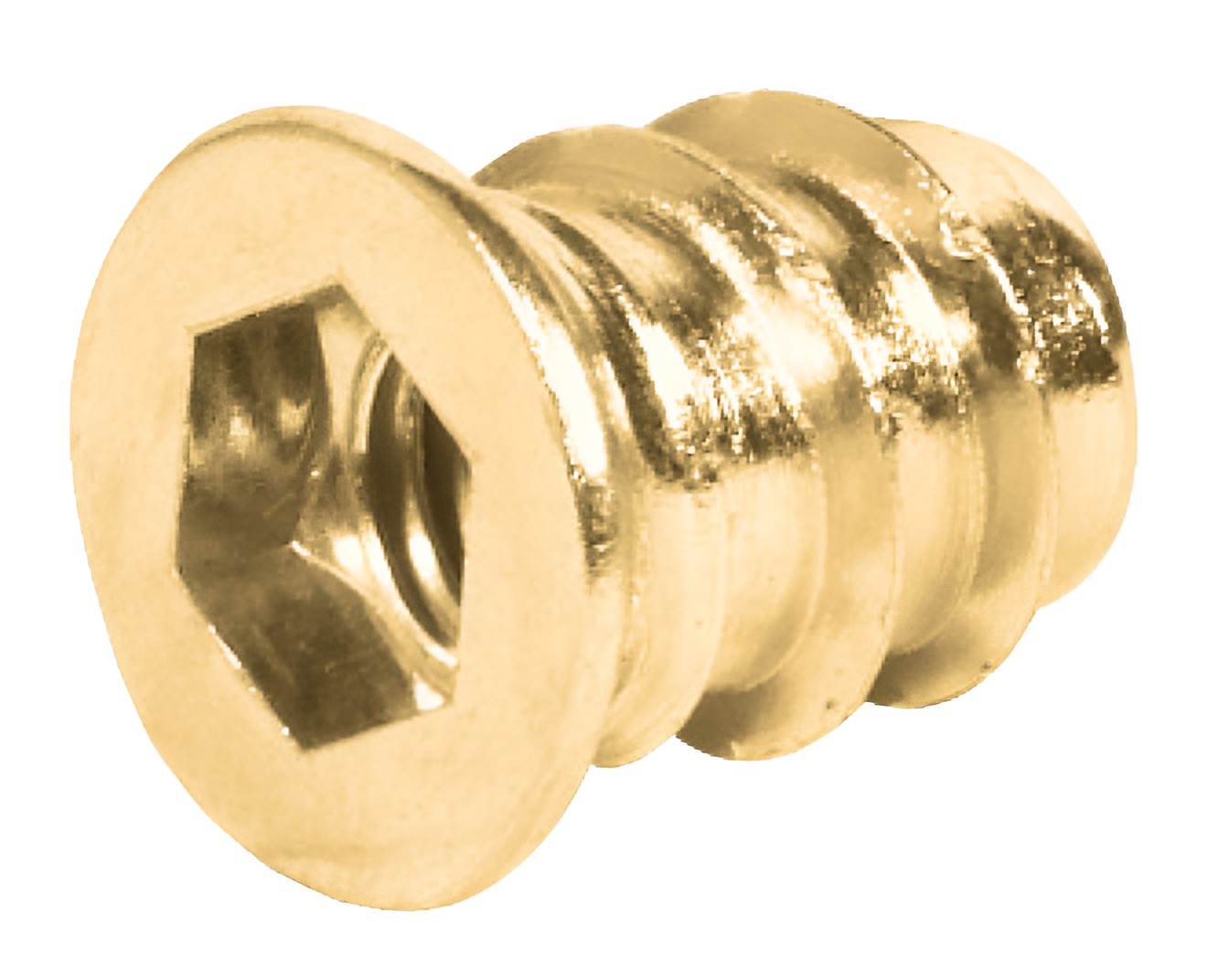

Screw-in sleeve, Steel with Hex Head

M8 thread, 17 mm, 10

The drill hole Ø is a recommendation for chipboard, and the drill hole diameter may differ with hardwood.

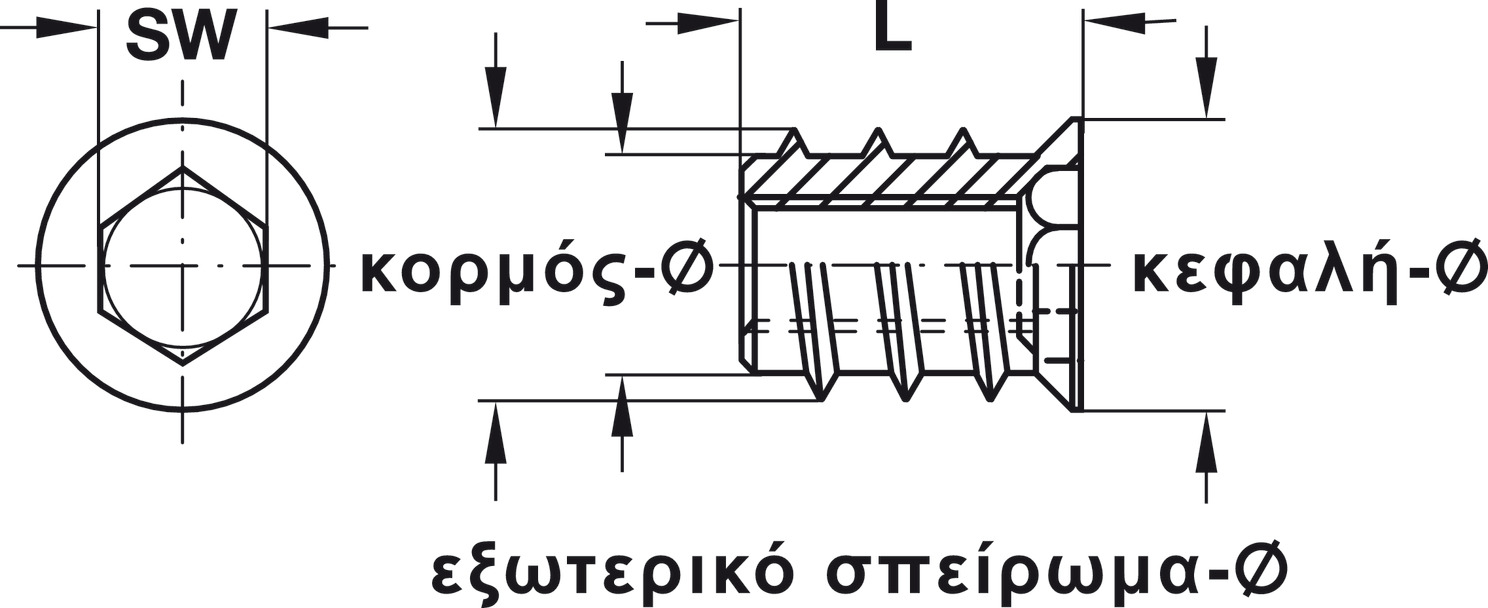

• Technical data Internal thread M4 M6 M8 M10 External thread Ø 10 mm 10 mm 12.5 mm 15.3 mm Core Ø 7.5 mm 7.5 mm 9.5 mm 11.5 mm Head Ø 12 mm 12 mm 14 mm 17 mm Drive SW4 SW6 SW8 SW10
