Hafele 262.11.113 Claw Connector is a robust one-piece solution designed for easy installation and superior performance in cabinetry. Crafted from durable zinc alloy, this connector is specifically tailored for wood thicknesses starting at 12 mm, making it ideal for thin front panels in concealed applications. Engineered for fixing front panels of wooden drawers, this connector is compatible with chipboard and allows for a seamless, visually appealing finish. The innovative design ensures that when the drawer side is raised, the connector securely grips into the front panel, providing a reliable and concealed connection. Installation is a breeze-there's no need for specialized tools. Simply pre-assemble the connector into the drawer side by knocking or press-fitting it into the 5 mm drill hole. As the drawer side is raised, the connector engages with the 8 mm drill hole of the front panel, ensuring a snug fit. Available in a blank finish, the Hafele 262.11.113 Claw Connector is suitable for drill hole diameters of 3/16" and 5/16". With its straightforward installation and sturdy construction, this connector is an essential component for any cabinetry project, delivering both functionality and elegance.

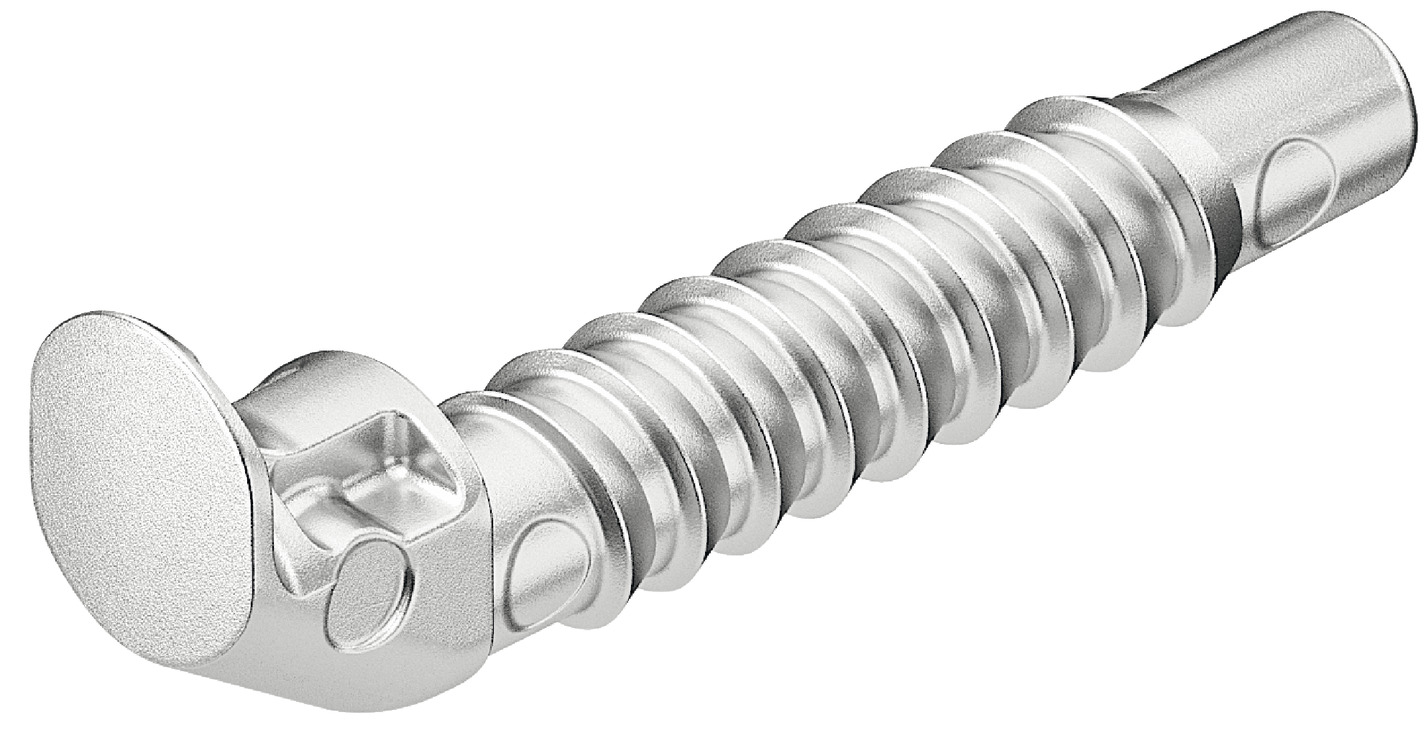

Claw connector, Hafele Ixconnect CC 8/5/30, Zinc alloy

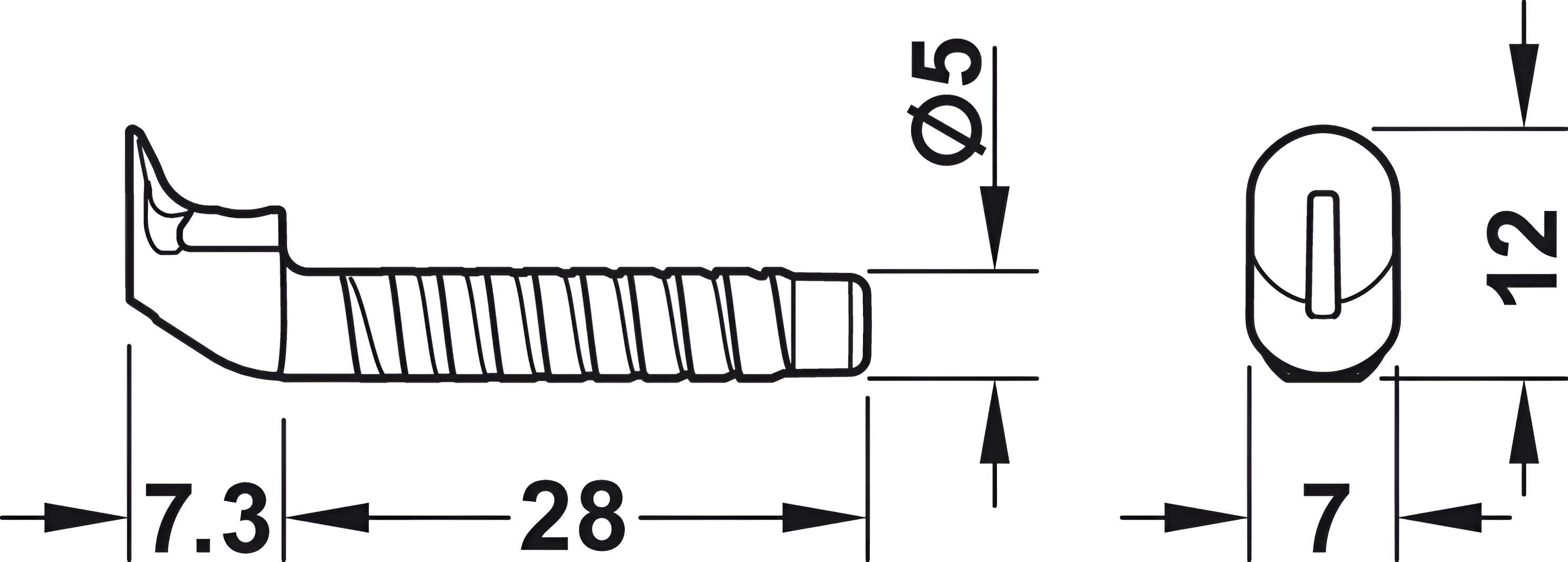

One-piece connector, For wood thicknesses from 12 mm
Area of application: For fixing front panels of wooden drawers for use with chipboard
Color/finish: blank
For drill hole Ø: 3/16"; 5/16"
For wood thickness: Front panel and drawer sides: From 1/2"

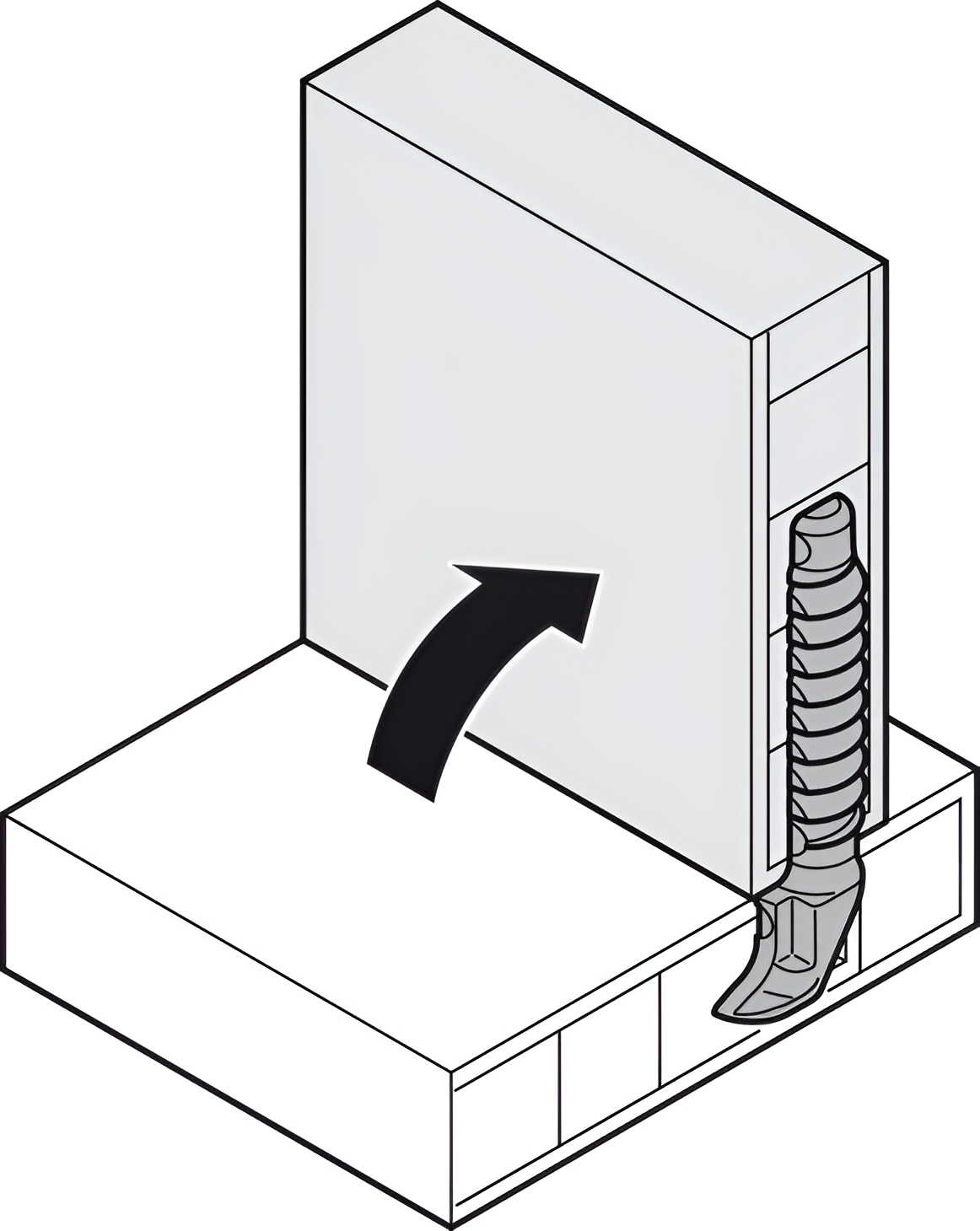

Functioning principle: The connector grips into the front panel when the drawer side is raised and thus provides a secure, concealed connection.

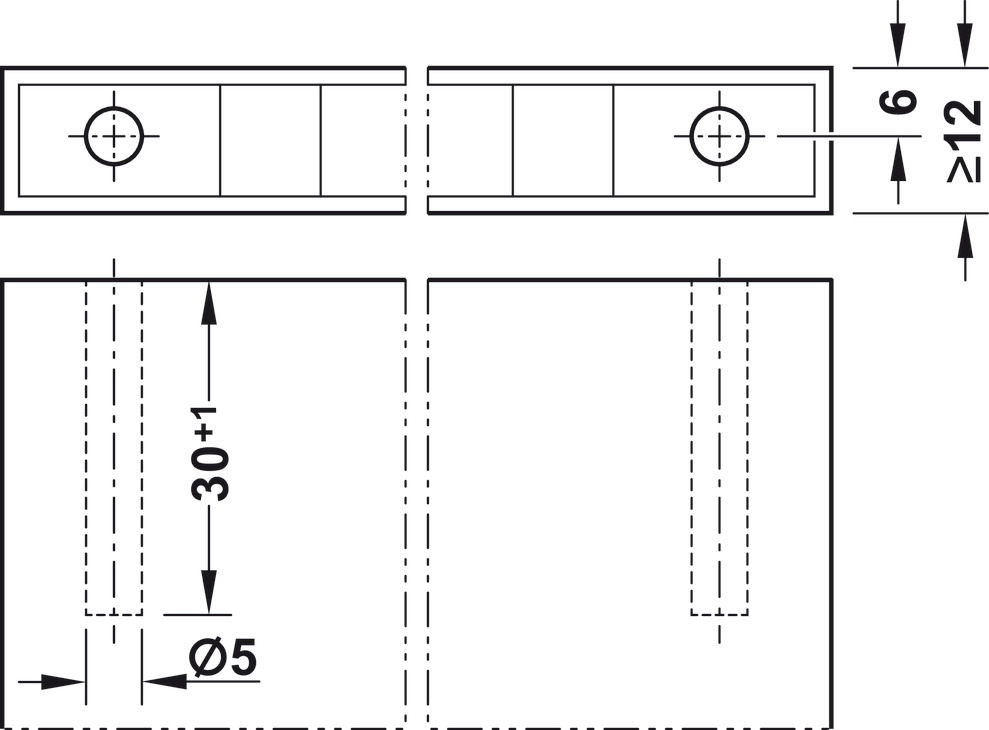

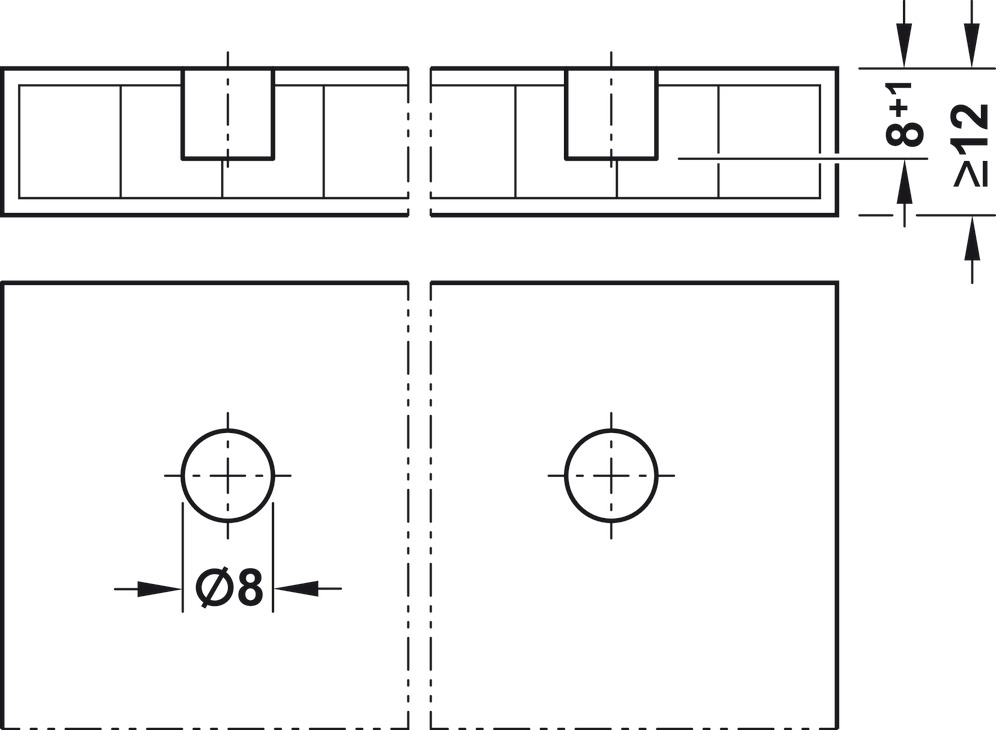

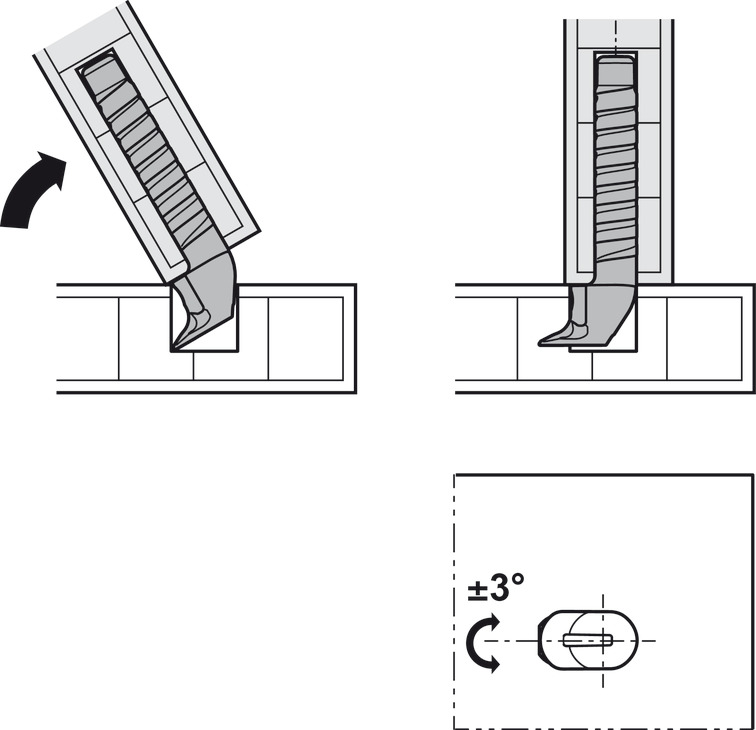

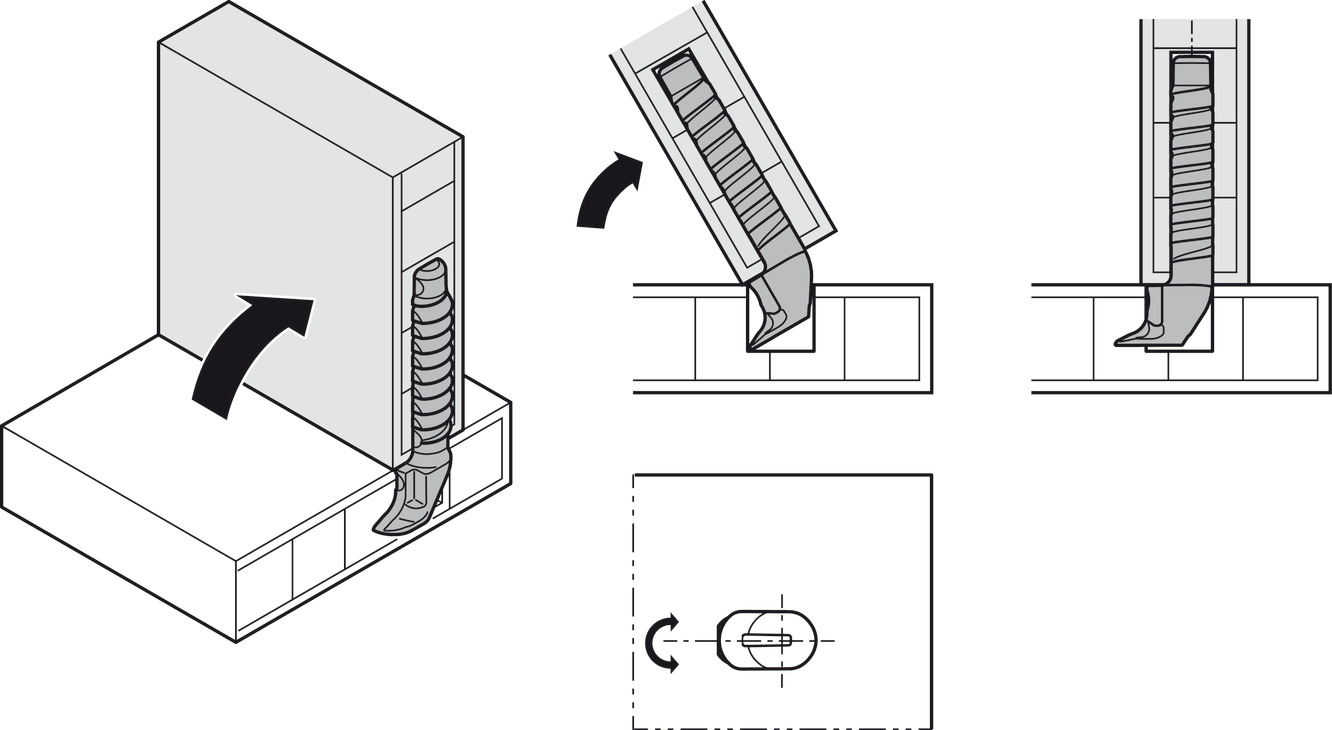

Installation: Pre-assembly in the drawer side by knocking or press fitting the connector into the 5 mm drill hole the connector grips into the 8 mm drill hole of the front panel when the drawer side is raised
Material: Zinc alloy
