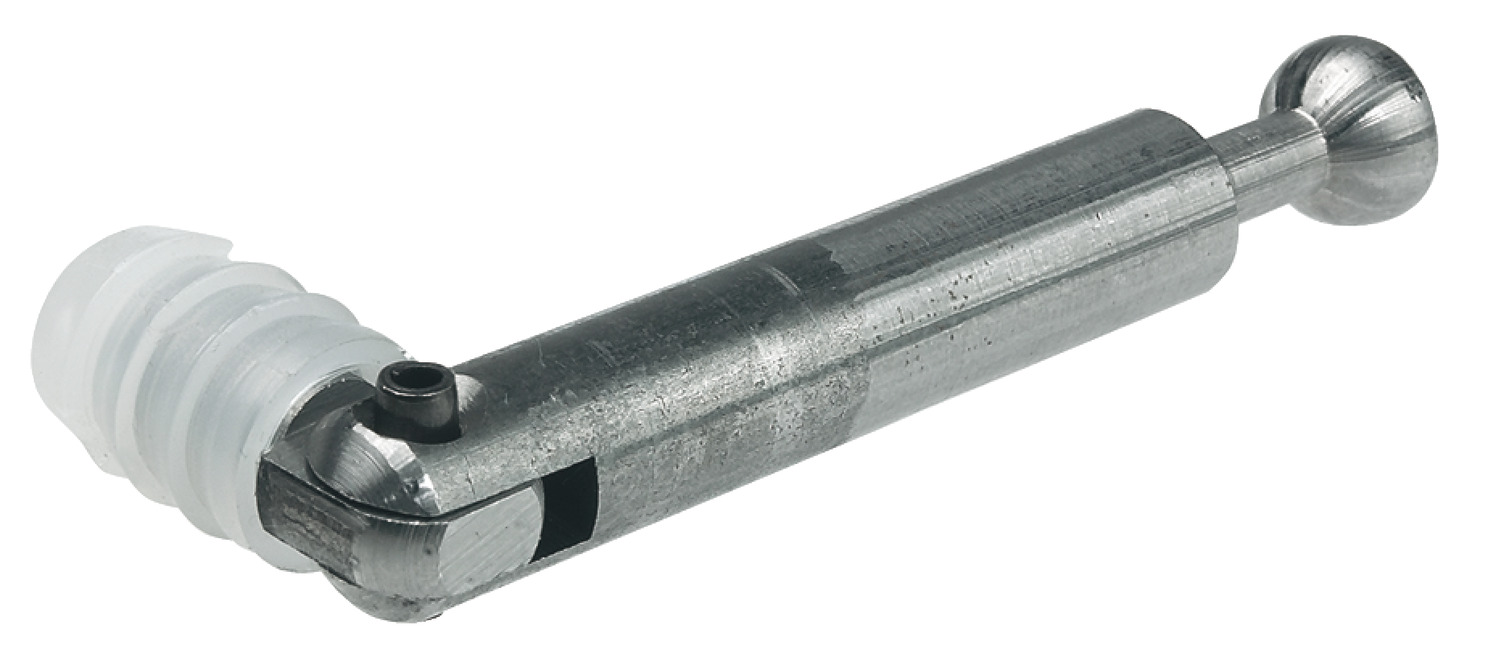

Hafele 262.12.804 Miter Joint Connector, Minifix GV for One-Sided Installation offers a practical and efficient solution for joining miter-jointed cabinets and profiles without the need for costly gluing. This innovative connector is designed to create large panels of furniture with miter joints, providing versatility for angles ranging from 90° to 180°. Constructed from durable steel and featuring a zinc-plated finish, the Miter Joint Connector is built to withstand the rigors of everyday use. It utilizes hinged connecting bolts, which ensure secure and reliable connections. The product is compatible with Ø15 mm zinc die-cast Minifix® cams, making it a perfect fit for your assembly needs. With a bolt hole diameter of 7.00 mm and a thread length of 11.00 mm, this connector is designed for ease of installation. The polyamide sleeve features a harpoon-type thread, enhancing grip and stability. For optimal results, it is recommended to use connector housing without a rim, with a drilling dimension of 44.00 mm. Ideal for professionals and knowledgeable homeowners alike, the Hafele Miter Joint Connector streamlines the assembly of stylish and sturdy furniture.
Miter Joint Connector, Minifix GV for One-Sided Installation
Sleeve 8 mm

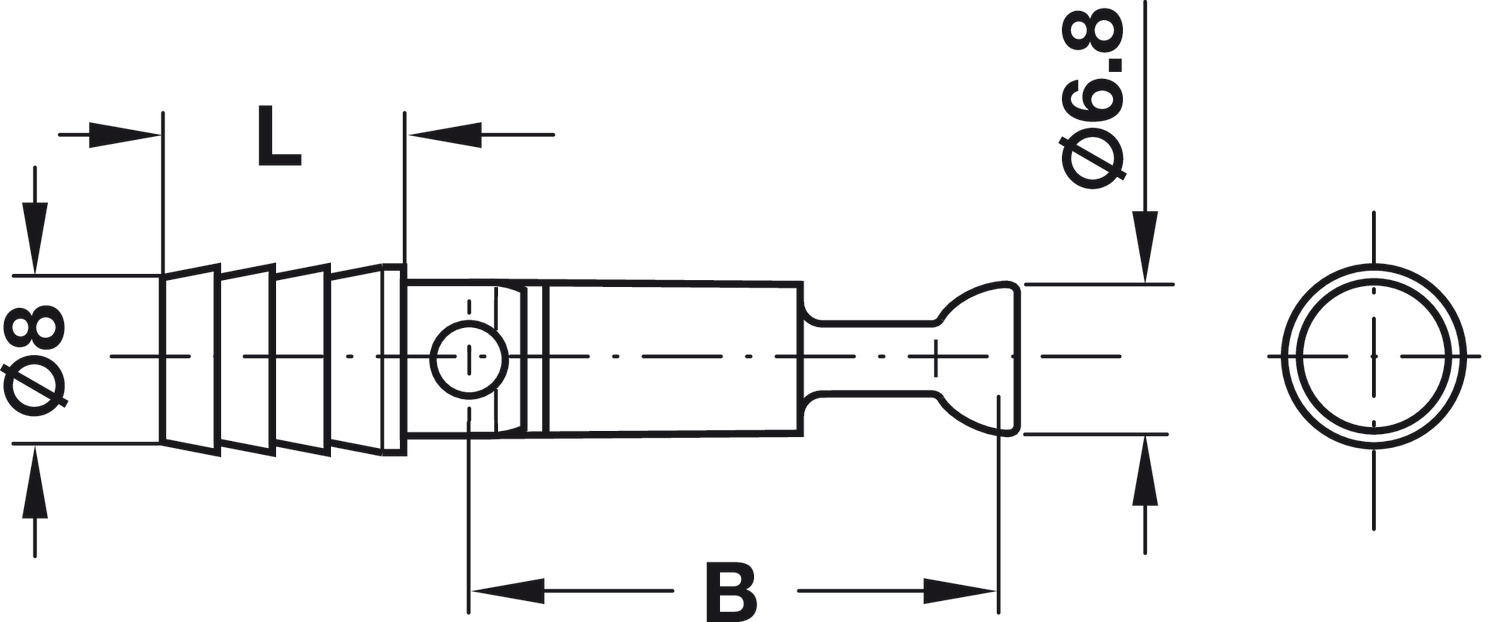

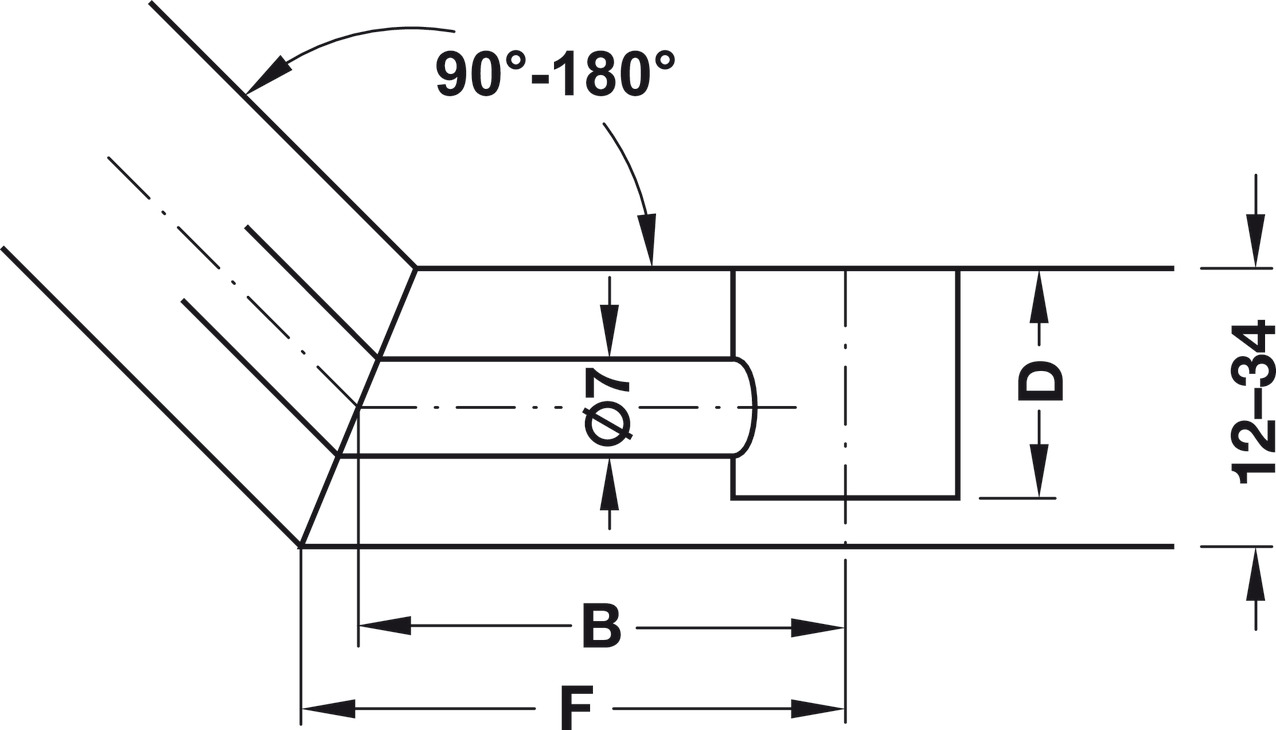

The inset distances F in mm in the following table apply to mitre-joint connecting bolts with a drilling dimension B 44 mm. For drilling distance B 24 mm, 20 mm must be deducted from the specified inset dimensions. The dimension for drilling depth D corresponds to the drilling depth D of the Minifix® connector housing that is used. Please use connector housing without rim.
Area of application: For miter angles of 90° to 180°
Bolt hole: 7.00 mm
Color/finish: zinc plated
Drilling dim.: 44.00 mm
Material: Steel
Thread: Polyamide sleeve with harpoon-type thread
Thread length: 11.00 mm
Version: With joint
