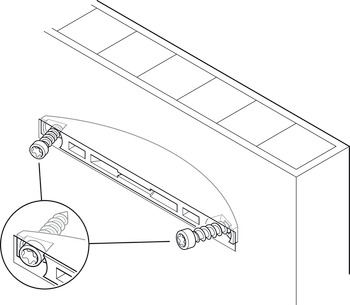

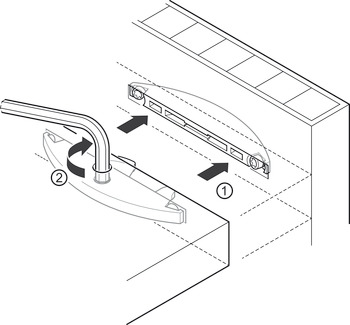

Hafele 267.91.210 Connector Detachable Connector, Lamello Clamex S-20 offers an innovative solution for wood assembly with its versatile design and robust construction. Engineered for a 4 mm groove, this connector is made from durable zinc alloy and comes packaged with 20 pieces, ensuring you have ample supply for your projects. This detachable connector allows for easy removal and re-tightening, making it ideal for situations where adjustments may be necessary during production, transport, or assembly. Its compatibility with any biscuit cutter tool simplifies the groove creation process, while its low connector thickness accommodates materials with a minimum thickness of 8 mm on the front edge. The Clamex S model excels in enabling corner, center panel, and surface connections at angles ranging from 30° to 180°. With a routing depth of 12.30 mm and the ability to facilitate lengthwise adjustments of up to 1.0 mm, it provides an excellent force transfer capability thanks to its tensioning element. Installation is straightforward, requiring 3 x 12 mm Torx screws, which are included. For professionals seeking a reliable and adaptable connection system, the Hafele 267.91.210 Connector delivers outstanding performance and versatility in wood assembly applications.

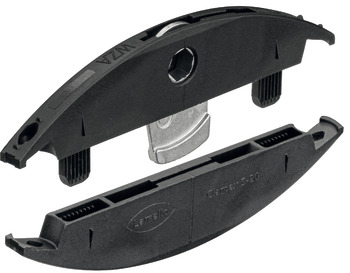

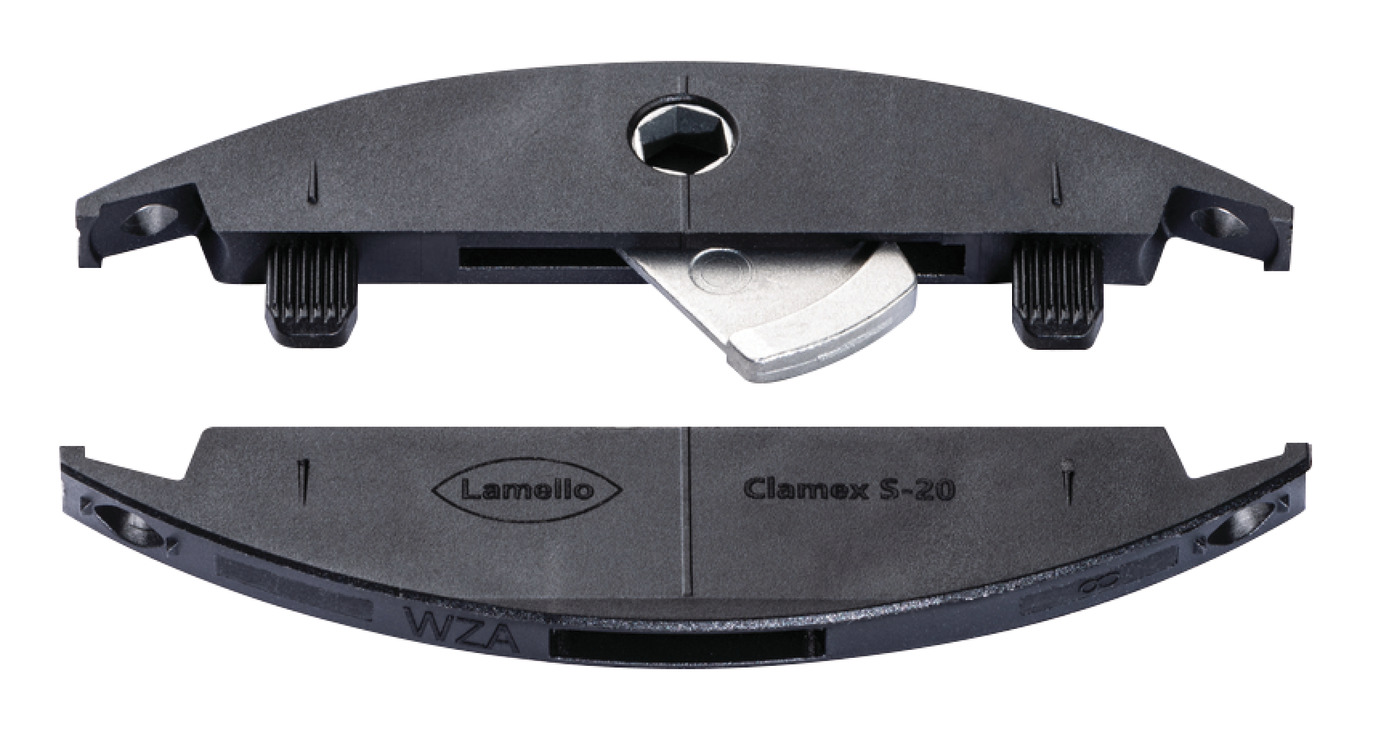

Connector Detachable Connector, Lamello Clamex S-20

for 4 mm groove, with zinc alloy bolt, 20 pcs

Join wood using any biscuit cutter tool

Resources

• CAD data
• Lamello Clamex S20 from Hafele
• Manufacturer information
• Operating instructions
