Hafele 271.53.901 Keyhole Plate Bed Connector is designed for seamless machined-recess installation, providing an extremely strong and discreet solution for connecting bed or upholstery frames. This concealed hanger plate features a single keyhole that allows for efficient installation, ensuring that the connection remains hidden while offering robust support. Constructed from durable zinc-plated steel, this connector is built to withstand the rigors of daily use. With a height of 45 mm, it is engineered for compatibility with #6 flat head screws for the installation plate and #10 pan head screws for the keyhole, ensuring a secure fit. It's important to note that the dimensions for the recesses should be taken directly from the fittings to guarantee optimal performance. This connector accommodates a bulge of up to 1 mm in the keyhole slot area, providing a bit of flexibility during installation. The versatile design allows it to hook onto chipboard screws with raised heads, making it suitable for various applications in furniture assembly. With the Hafele 271.53.901, you can achieve a strong, invisible connection that enhances the stability and aesthetic of your furniture projects.

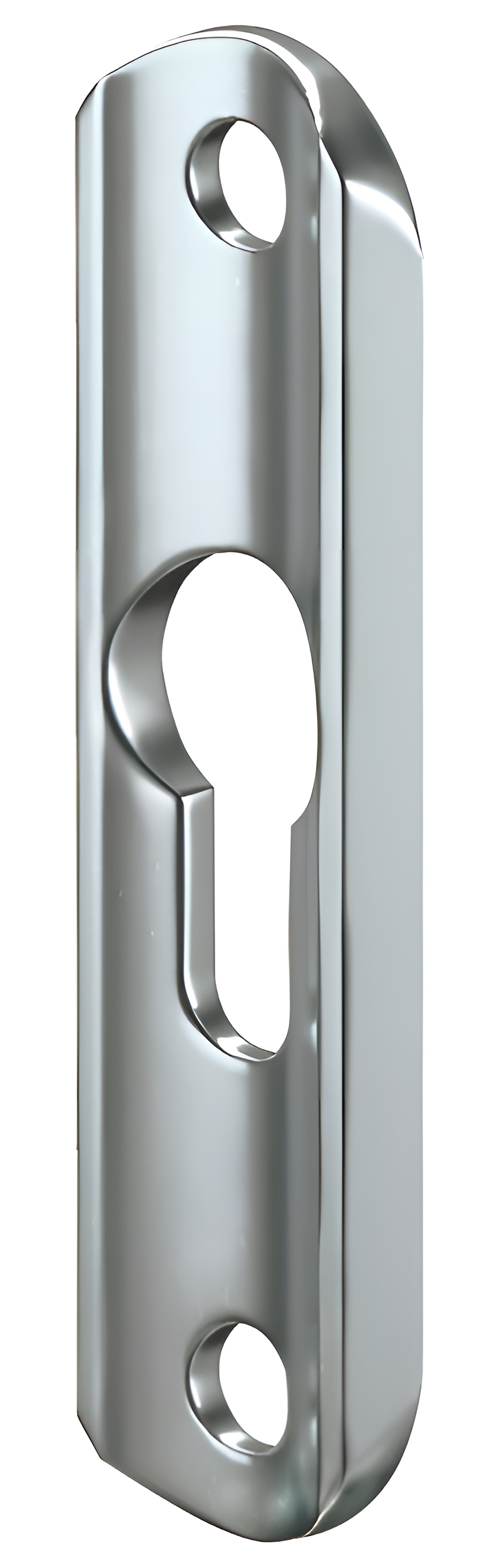

Keyhole Plate Bed Connector for machined-recess installation with 1 keyhole
A bulge of up to 1 mm is possible in the keyhole slot area.
Area of application: As bed or upholstery frame connector
Color/finish: zinc plated
For screw head Ø: 6.00 mm
For screw Ø: 3.00 mm
Height: 45.00 mm
Installation: for machined-recess installation and screw fixing, for hooking onto chipboard screws with raised head
Material: Steel
Order reference: Please note the different screw diameters for fixing and hooking in. The specifications in the product selection refer to screws for hooking in the raised head plate.
Version: Concealed hanger plates
