Hafele 283.39.051 Concealed Shelf Support, TRIADE PRO, MAXI is an essential hardware solution for creating sleek, floating shelves in your space. Crafted from durable zinc alloy and steel, this shelf support combines strength with a modern aesthetic, making it perfect for both residential and commercial applications. Designed for concealed mounting, the TRIADE PRO, MAXI provides a clean look that enhances any décor while ensuring that your shelves remain secure and stable. It accommodates shelf depths ranging from 200 to 400 mm, allowing flexibility in design choices. With a load-bearing capacity of 20 kg per pair, you can confidently display books, decorative items, or plants without worry. This product is ideal for those who appreciate a minimalist style without compromising on performance. The concealed design means no visible brackets detract from the overall appearance, creating an elegant floating effect. Additionally, the Hafele 283.39.051 supports easy installation and can ship via UPS, making it a convenient choice for your next project. Elevate your interior with this reliable and stylish shelf support, perfect for showcasing your favorite belongings in a sophisticated manner.

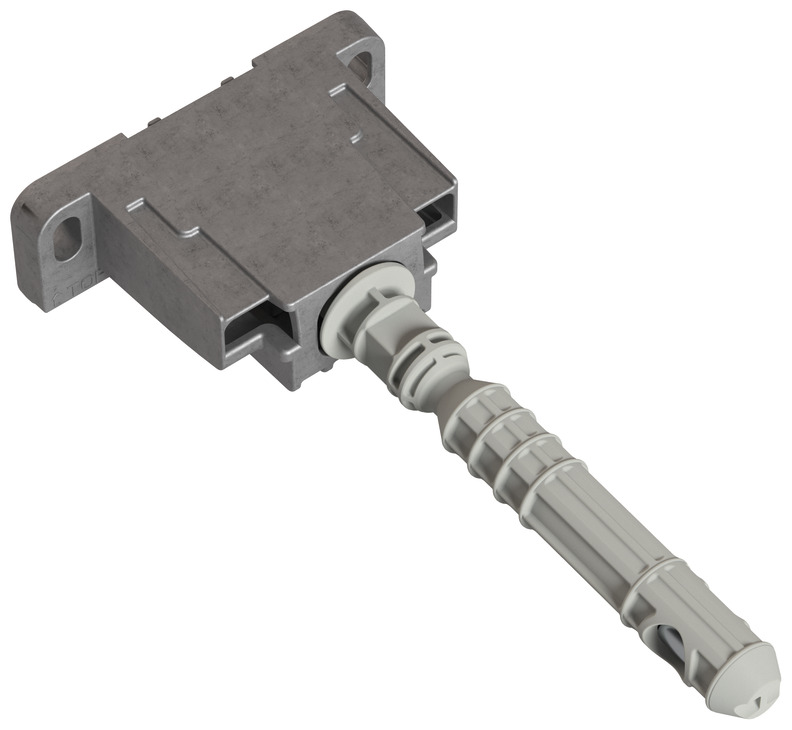

Concealed Shelf Support, TRIADE PRO, MAXI
for shelf thickness 40 mm, Zinc alloy and steel
Adjustment facility: Inclination adjustment: -8 to 20 mm via 10 mm spanner Height: +/- 2.5 mm via slotted plate Side: +/- 2.5 mm via locking screw
Area of application: Concealed mounting for floating shelf
For shelf depth: 200 – 400 mm
For shelf thickness: ≥40 mm
Installation: Adjustment: Inclination: -1+3° via 10mm spanner Height: +/- 2mm Lateral: +/- 2.5mm
Load bearing capacity per pair: 20.00 kg
Material: Zinc alloy
Note on load bearing capacity: 20 kg per support for 200–400 mm shelf depth
