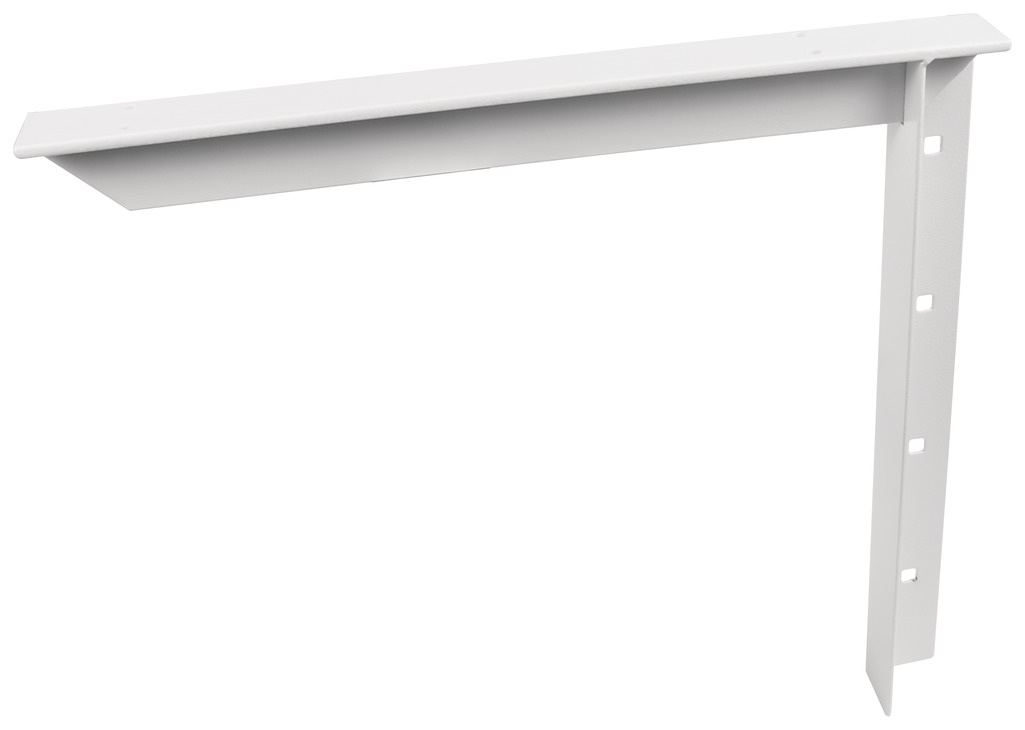

Hafele 287.80.724 Concealed Brackets are expertly designed for robust support in various applications, attaching seamlessly to wall studs. Measuring 21 inches in length and 18 inches in height, these brackets are crafted from durable steel and finished with a sleek white powder coating, ensuring both strength and aesthetic appeal. Installation is straightforward, utilizing 3/8 - 16 x 3" carriage bolts, which are included with the mounting hardware. With a load-bearing capacity ranging from 1,000 to 7,960 lbs per pair, these brackets provide exceptional reliability for shelving and cabinetry needs. The Hafele 287.80.724 brackets feature thickness options of 3 mm and 6 mm (1/8" and 1/4"), allowing for versatile applications across various projects. Whether for residential or commercial use, these concealed brackets offer a clean, unobtrusive look while delivering outstanding performance. Additionally, they are shipped via UPS for convenient delivery. Elevate your building projects with Hafele's reliable concealed brackets, ensuring both functionality and style in your installations.

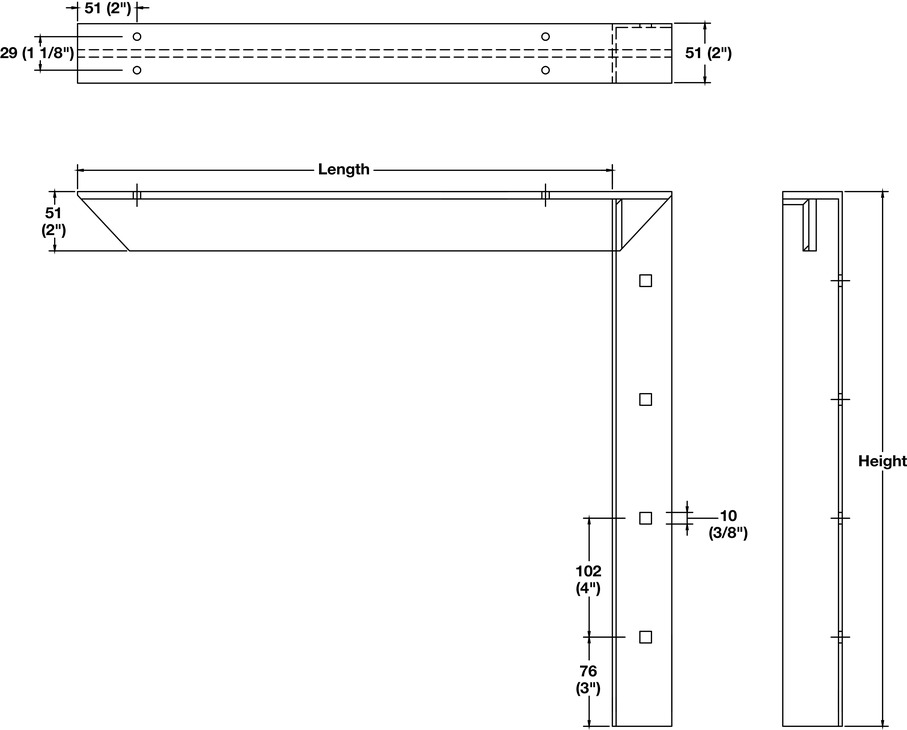

Concealed Brackets, Design
for attachment to wall studs, 21" x 18" (L x H), White
Color/finish: White, Powder coated
Height: 457.00 mm
Height (inch): 18"
Installation: Mounts with 3/8 - 16 x 3" carriage bolts
Length (inch): 21"
Material: Steel
Note on load bearing capacity: 454 - 3,618 kg (1,000 - 7,960 lbs) per pair
Supplied with: Mounting hardware
Thickness (inch): 3 mm and 6 mm (1/8" and 1/4")
