Hafele 329.05.685 Hafele Salice Silentia+ Concealed Hinge for Thick Profile Doors

Hafele 329.05.685 Concealed hinge is expertly designed for thick and profile doors, offering a full overlay solution that ensures a seamless and elegant finish. This hinge boasts an impressive adjustment facility, featuring side adjustment of 4.5 mm and height adjustment ranging from -2 mm to +2 mm, allowing for precise alignment during installation. Crafted from durable steel and finished in a sleek nickel plating, this hinge not only provides robust support but also enhances the aesthetic appeal of your cabinetry. The 40 mm cup drilling ensures compatibility with a wide array of cabinet designs, while the drilling pattern of 52/7.5 facilitates straightforward installation. Designed specifically for wooden doors, the Hafele 329.05.685 hinge allows for screw fixing, ensuring a secure and lasting hold. With a comprehensive range of door overlays from 12 mm to 40 mm, this hinge accommodates various door thicknesses and configurations. The crank type is straight, which contributes to its functional versatility. Whether you're a building professional or a knowledgeable homeowner, this concealed hinge is an excellent choice for enhancing the functionality and style of your cabinetry while maintaining a clean and modern look.

Concealed hinge, Hafele Salice Silentia+ hinge for thick and profile doors, full overlay

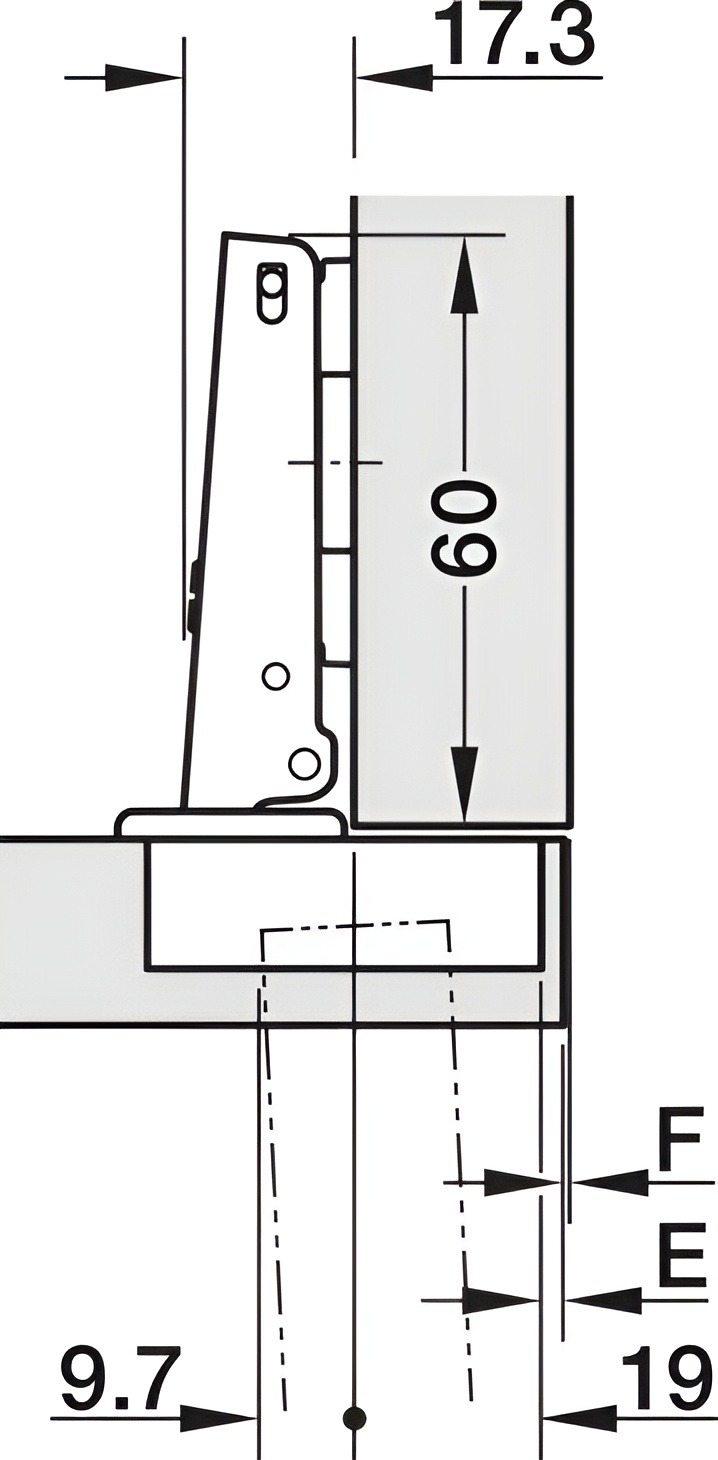

• Minimum gap Door thickness mm Distance to cup E mm 3 4 5 6 7 8 9 10 11 12 13 14 20 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 21 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 22 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 23 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 24 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.7 25 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 26 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 27 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.2 1.2 28 1.7 1.6 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.4 1.4 29 1.9 1.9 1.8 1.8 1.8 1.8 1.7 1.7 1.7 1.7 1.6 1.6 30 2.2 2.1 2.1 2.1 2.0 2.0 1.9 1.9 1.9 1.9 1.9 1.8 31 2.4 2.4 2.4 2.3 2.3 2.3 2.2 2.2 2.2 2.1 2.1 2.1 32 2.9 2.7 2.7 2.6 2.6 2.6 2.5 2.5 2.4 2.4 2.3 2.3 33 3.8 3.2 3.0 2.9 2.9 2.8 2.8 2.7 2.7 2.6 2.6 2.6 34 4.7 4.1 3.5 3.2 3.2 3.1 3.1 3.0 3.0 2.9 2.9 2.9 35 5.7 5.0 4.4 3.9 3.5 3.5 3.4 3.3 3.3 3.2 3.2 3.1 36 6.6 6.0 5.3 4.7 4.2 3.8 3.8 3.7 3.6 3.6 3.5 3.5 37 7.6 6.9 6.2 5.6 5.1 4.6 4.2 4.1 4.0 3.9 3.9 3.8 38 8.6 7.9 7.2 6.6 6.0 5.4 5.0 4.6 4.4 4.3 4.2 4.1 39 9.5 8.8 8.1 7.5 6.9 6.3 5.8 5.4 5.0 4.7 4.6 4.5 40 10.5 9.8 9.1 8.4 7.8 7.2 6.7 6.2 5.8 5.4 5.1 5.0 Minimum gap F Rounding off the edge of door reduces the given values.
• Door overlay mm 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 3 4 5 6 7 8 9 10 11 12 13 14 15 0 3 4 5 6 7 8 9 10 11 12 13 14 15 3 3 4 5 6 7 8 9 10 11 12 13 14 15 6 3 4 5 6 7 8 9 10 11 12 13 14 15 9 Distance to cup E mm Mounting plate distance mm
