Hafele 329.07.682 Salice 200 Series Concealed Hinge 165, Inset Mounting

Hafele 329.07.682 Concealed Hinge is designed for wood doors, offering a seamless integration with internal drawer boxes or pull-out shelves. This high-quality Salice 200 Series hinge features a zero offset, making it ideal for use with internal pull-outs or extending trays, ensuring a clean and unobtrusive appearance. The hinge supports an impressive opening angle of 165°, providing excellent accessibility. It is equipped with a side adjustment facility of 4.5 mm, height adjustment ranging from -2 to +2 mm, and depth adjustment options with Metalla mounting plates, ensuring precise installation and alignment. The nickel-plated finish adds durability while enhancing the aesthetic appeal of your cabinetry. Designed for easy assembly, this hinge requires cup drilling with a depth of 11 mm and a diameter of 35 mm. The drilling pattern of 45/9.5 is available upon request, catering to various installation needs. The hinge is constructed from a zinc alloy cup and a steel hinge arm, providing robust functionality and longevity. With no soft closing mechanism but featuring an automatic closing spring, the Hafele 329.07.682 ensures doors close securely and efficiently. This concealed hinge is an excellent choice for professionals and knowledgeable homeowners looking to enhance their furniture's functionality and style.

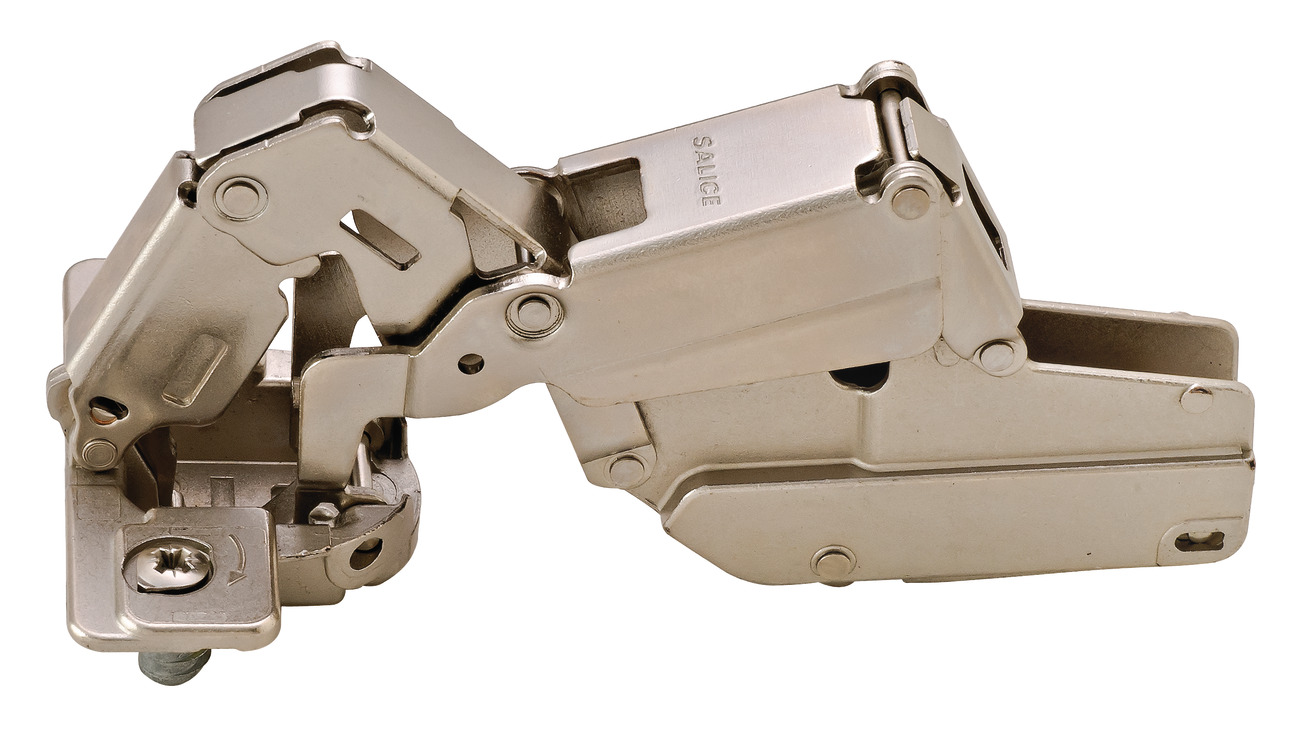

Salice - Concealed Hinge, 200 Series, 165, inset mounting

For cabinets with internal drawer boxes or pull-out shelves, Rapido, model C27FP99

Drilling pattern 45/9.5 available by request.

• Door overlay mm -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 0 3 4 5 3 3 4 5 6 7 8 6 3 4 5 6 7 8 9 Distance to cup E mm Mounting plate distance mm
• Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 8,0 16 0,0 0,0 0,0 0,0 0,0 0,0 18 0,0 0,0 0,0 0,0 0,0 0,0 20 0,0 0,0 0,0 0,0 0,0 0,0 22 0,7 0,1 0,1 0,1 0,1 0,1 24 2,7 1,8 1,2 0,9 0,7 0,6 26 4,6 3,8 3,0 2,5 2,0 1,7 28 7,9 6,9 5,9 4,9 3,9 3,2 Minimum gap F Rounding off the edge of door reduces the given values.
