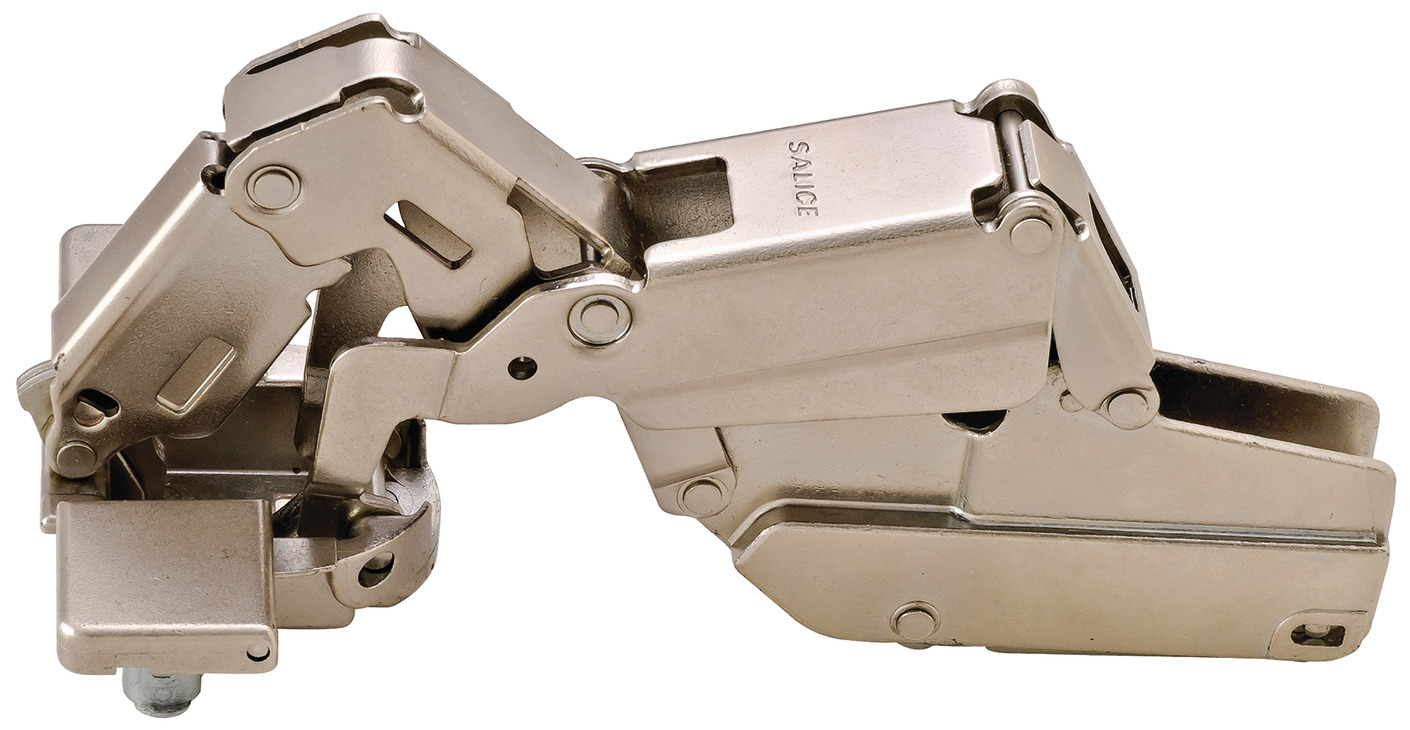

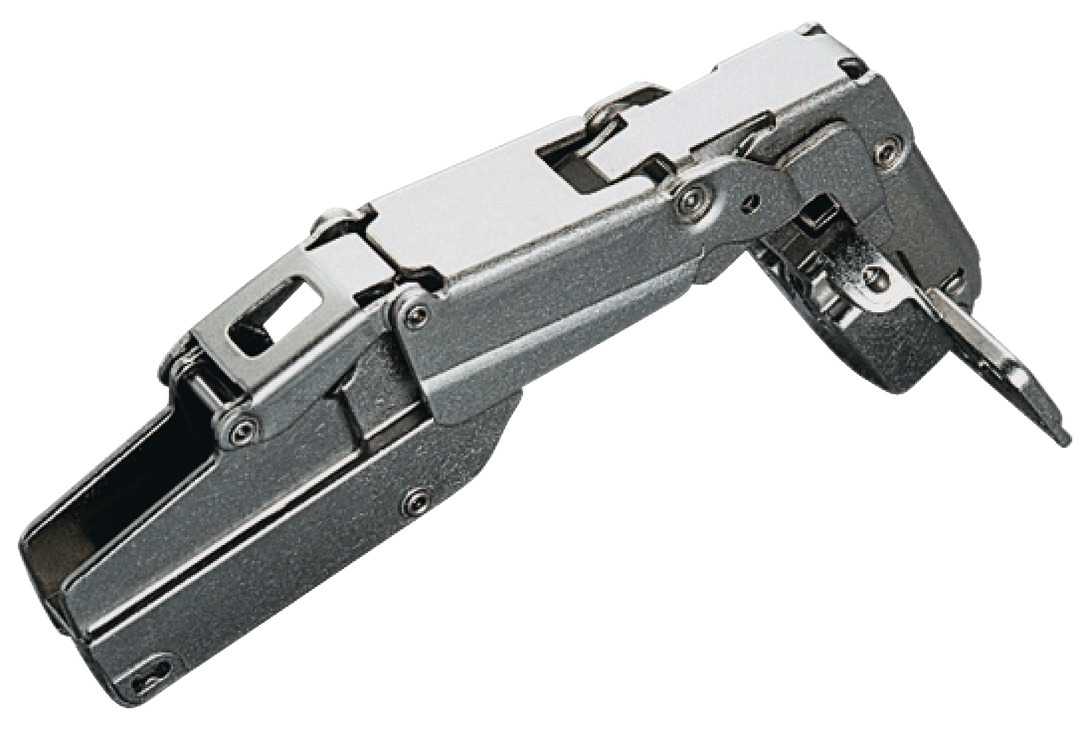

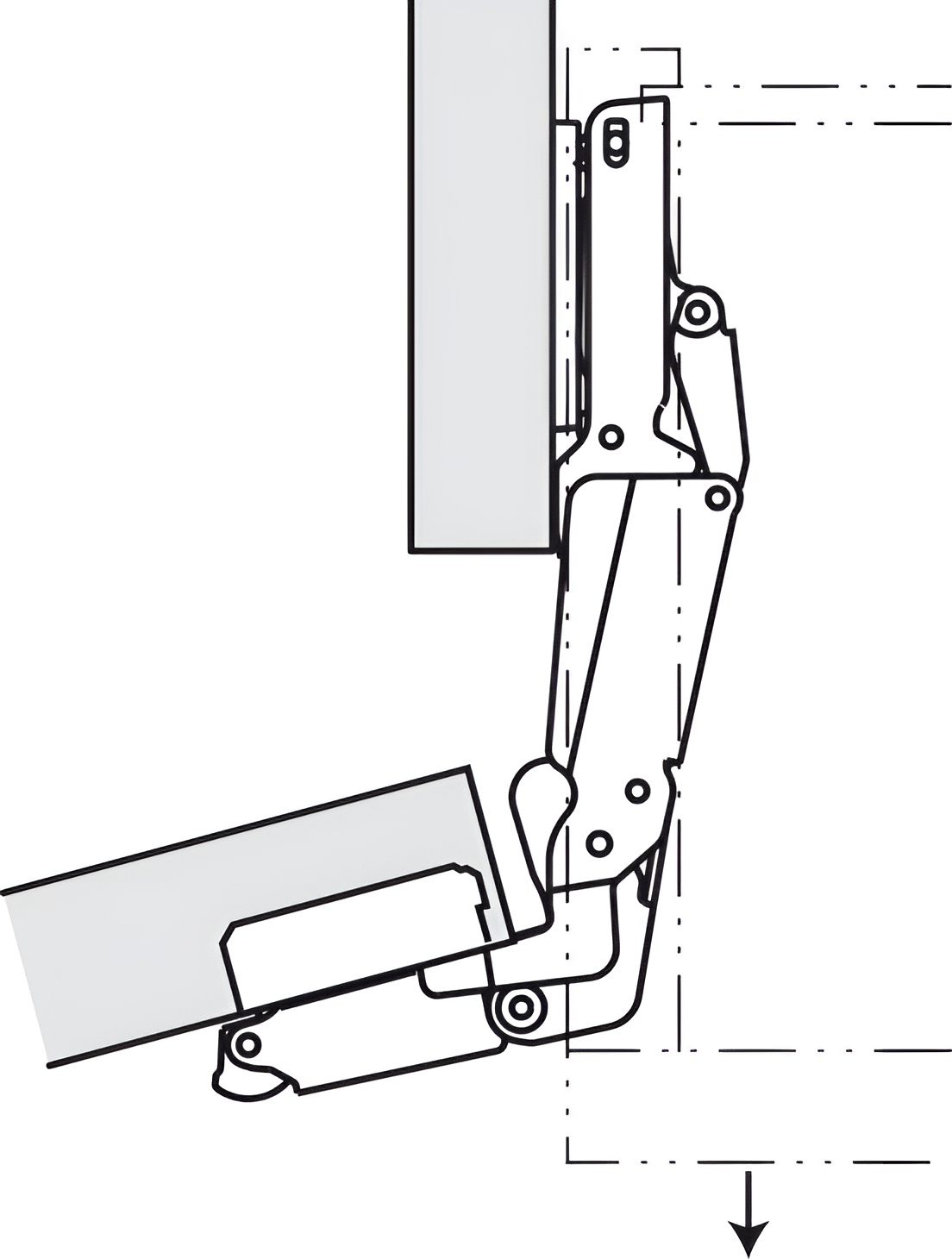

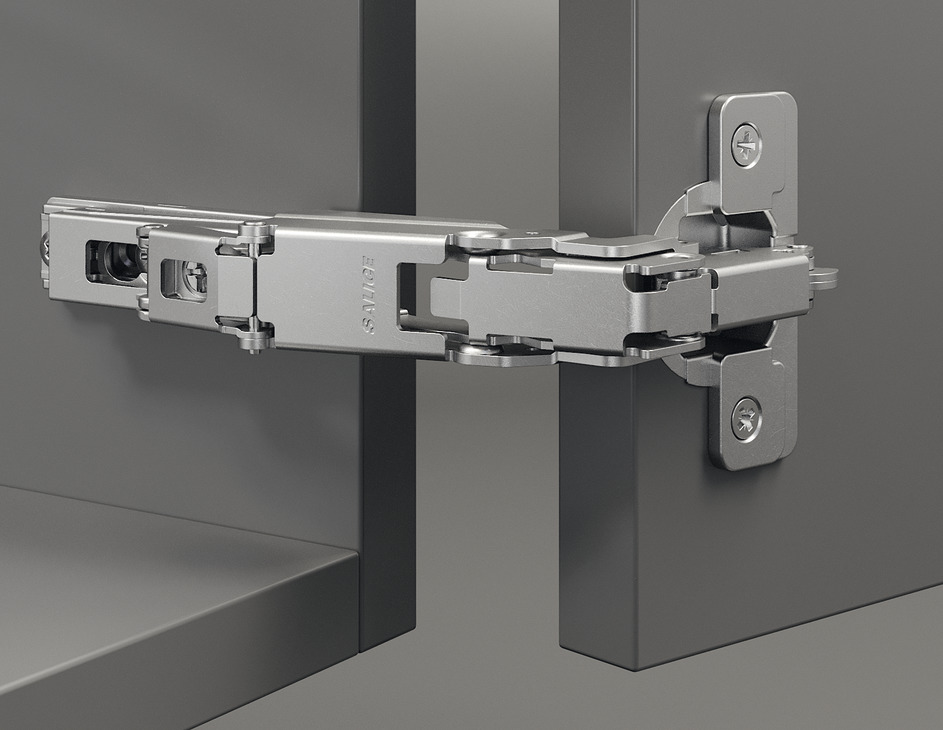

Hafele 329.07.693 Salice 200 Series Concealed Hinge 165, Inset Mounting

Hafele 329.07.693 Concealed Hinge, Salice 200 Series, 165, inset mounting offers a seamless solution for cabinetry requiring precision and style. Designed for wood doors, this hinge features a high cranked design that accommodates internal drawer boxes or pull-out shelves. With a zero offset, it is ideal for use with internal pull-outs or extending trays, ensuring smooth functionality without sacrificing aesthetics. The hinge boasts a generous opening angle of 165°, providing easy access to cabinet interiors. Its nickel-plated finish not only enhances durability but also adds a touch of sophistication to any space. The cup drilling depth of 11 mm and a drilling diameter of 35 mm ensure compatibility with various door thicknesses, while the optional drilling pattern of 45/9.5 can be requested for specialized needs. Installation is straightforward, employing either a slide-on system A or a quick fixing system SM. The hinge includes an automatic closing spring for convenience, though it does not feature a soft closing mechanism. With side adjustment capabilities of 4.5 mm and height adjustments ranging from -2 to +2 mm, achieving the perfect fit is effortless. Enhance your cabinetry with the Hafele 329.07.693 Concealed Hinge, where functionality meets refined design.

Salice - Concealed Hinge, 200 Series, 165, inset mounting

For cabinets with internal drawer boxes or pull-out shelves, Logica mounting, model C2JFP99

Drilling pattern 45/9.5 available by request.

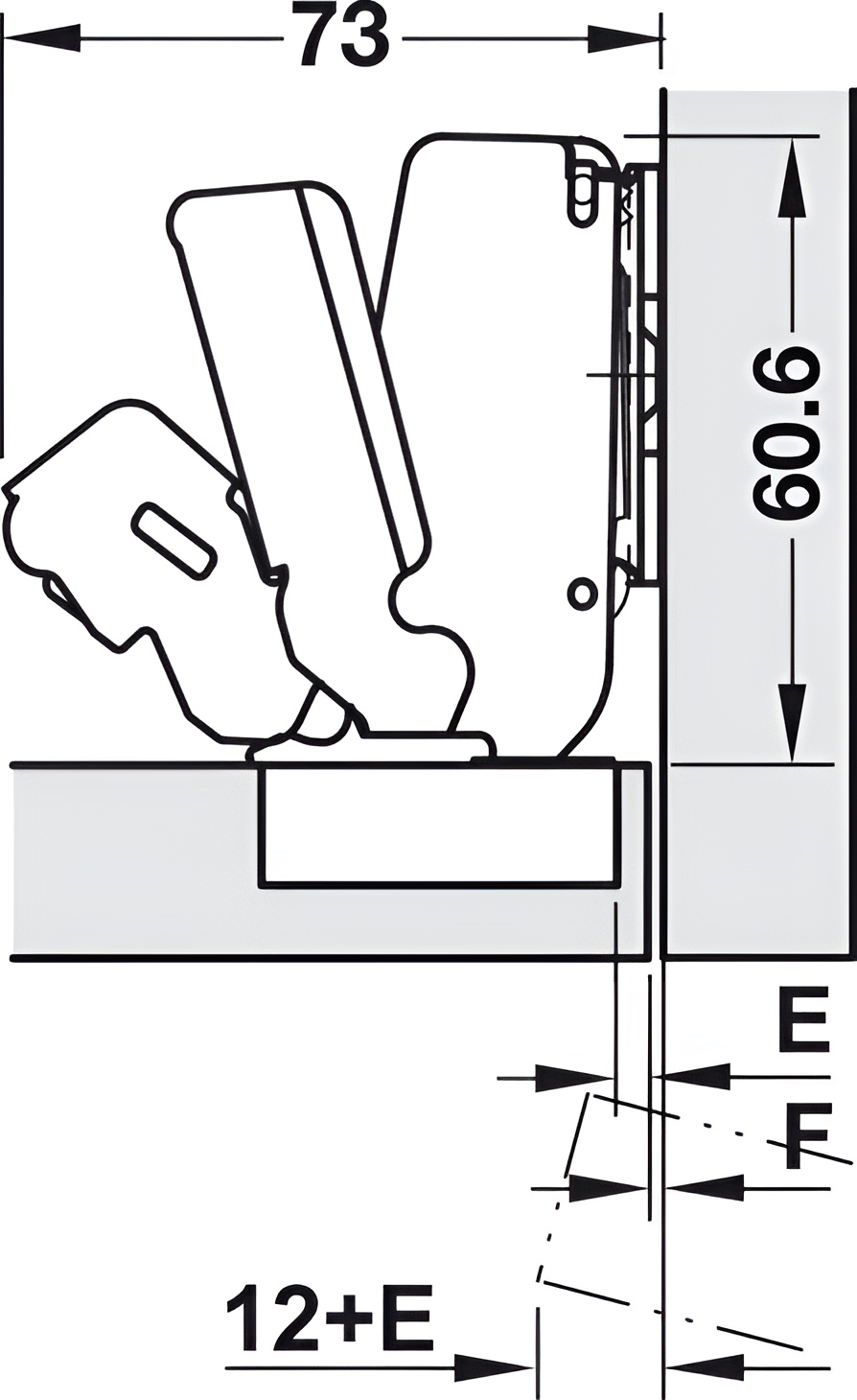

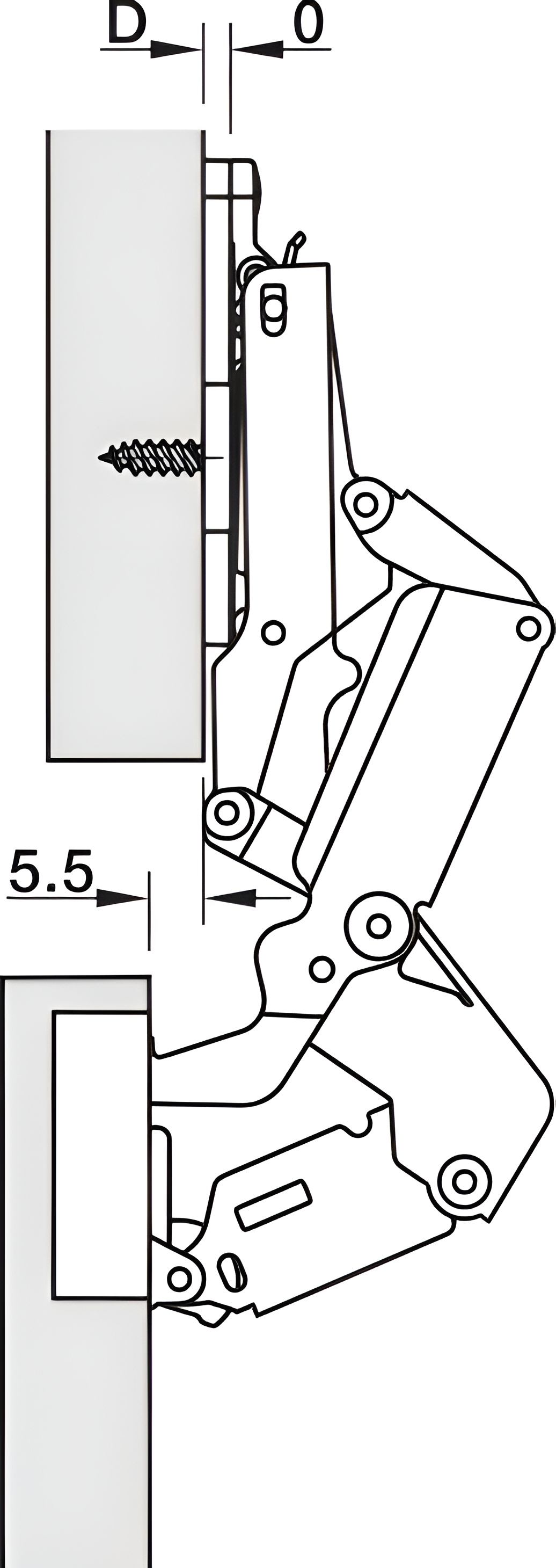

• Door overlay mm -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 0 3 4 5 3 3 4 5 6 7 8 6 3 4 5 6 7 8 9 Distance to cup E mm Mounting plate distance mm

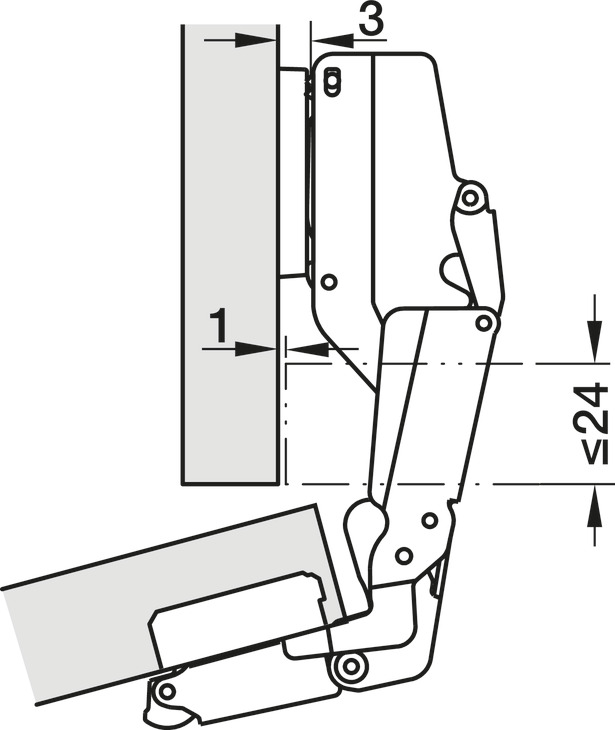

• Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 8,0 16 0,0 0,0 0,0 0,0 0,0 0,0 18 0,0 0,0 0,0 0,0 0,0 0,0 20 0,0 0,0 0,0 0,0 0,0 0,0 22 0,7 0,1 0,1 0,1 0,1 0,1 24 2,7 1,8 1,2 0,9 0,7 0,6 26 4,6 3,8 3,0 2,5 2,0 1,7 28 7,9 6,9 5,9 4,9 3,9 3,2 Minimum gap F Rounding off the edge of door reduces the given values.
