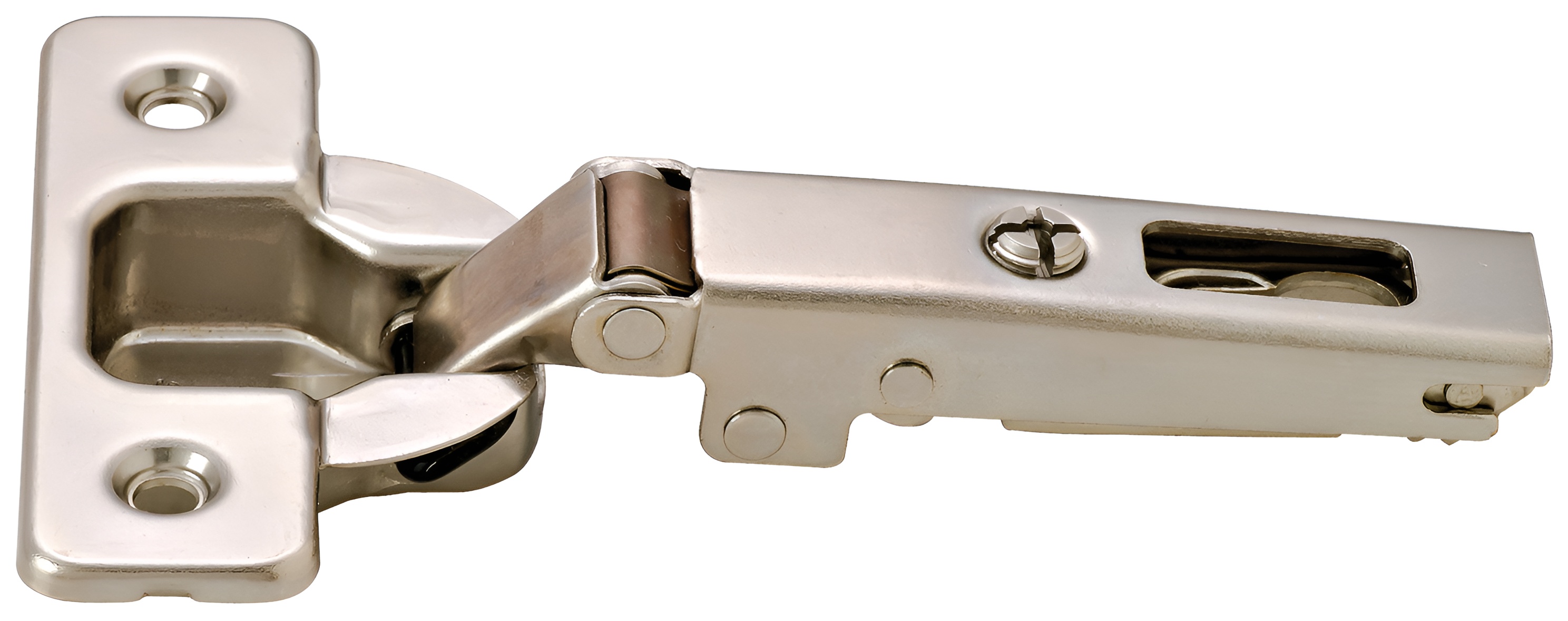

Hafele 329.31.530 Salice 200 Series Concealed Hinge 94, Full Overlay

Hafele 329.31.530 Concealed Hinge, Salice 200 Series, 94, Full Overlay Mounting offers a reliable solution for thick wood doors, ensuring seamless integration and aesthetic appeal. Designed for full overlay applications, this hinge features a self-closing mechanism that enhances user convenience while maintaining a clean, uncluttered look. Constructed from durable steel with a sleek nickel-plated finish, this hinge is built to withstand daily use while adding a modern touch to cabinetry. The cup drilling depth of 11.00 mm and diameter of 35.00 mm allows for precise installation, and the tool-free cup fixing simplifies assembly, making it suitable for both professional builders and knowledgeable homeowners. With a maximum opening angle of 94° and side adjustment capability of 4.5 mm, the Hafele hinge accommodates various door overlays ranging from 9 mm to 24 mm, providing flexibility for different design specifications. Additionally, its height adjustment facility of -2 to +2 mm ensures a perfect fit, while the depth adjustment with Metalla mounting plates adds further versatility. Ideal for applications requiring robust performance and aesthetic continuity, the Hafele 329.31.530 hinge is an essential component for any high-quality cabinetry project.

Salice - Concealed Hinge, 200 Series, 94, Full Overlay Mounting

cup fixing: For screw fixing, Self-close, logica mounting, model C2JBA99

Dimensions and gap specifications in the drawings and tables are calculated: with factory settings – with mounting plate distance 0 mm – for door offset with max. opening angle

• Door overlay mm 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 3 4 5 6 7 8 9 0 3 4 5 6 7 8 9 3 3 4 5 6 7 8 9 6 3 4 5 6 7 8 9 9 Distance to cup E mm Mounting plate distance mm
• Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 8,0 9,0 19 0,1 0,1 0,1 0,1 0,1 0,1 0,1 20 0,2 0,2 0,2 0,2 0,2 0,2 0,2 22 0,4 0,4 0,4 0,4 0,4 0,4 0,4 24 0,7 0,7 0,7 0,6 0,6 0,6 0,6 26 1,0 1,0 1,0 1,0 1,0 0,9 0,9 28 2,6 1,9 1,4 1,4 1,3 1,3 1,3 30 4,5 3,8 3,1 2,6 2,1 1,8 1,8 32 6,4 5,7 5,0 4,4 3,8 3,3 2,9 33 7,4 6,6 5,9 5,3 4,7 4,2 3,7 34 8,3 7,6 6,9 6,2 5,6 5,1 4,6 35 9,3 8,6 7,8 7,2 6,5 6,0 5,4 Minimum gap F Rounding off the edge of door reduces the given values.

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.19
